VZ-215LED-HDR - 21.5” 3G-SDI/HDMI HDR PROFESSIONAL MONITOR
- 21.5” 10bit/3G-SDI Monitor
- Multiple Video Interface – 3G-SDI, HDMI, VGA and Analog Video
- 1000 cd/m2 High Brightness
- HDR 101% Rec.709 color space

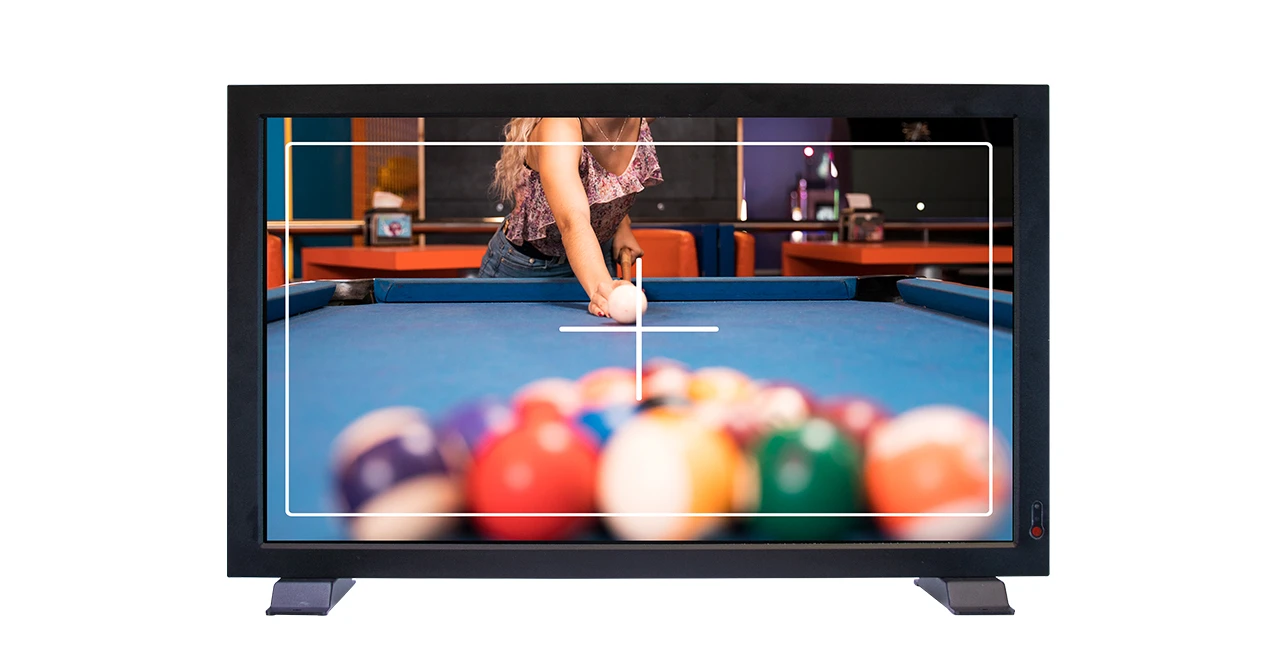

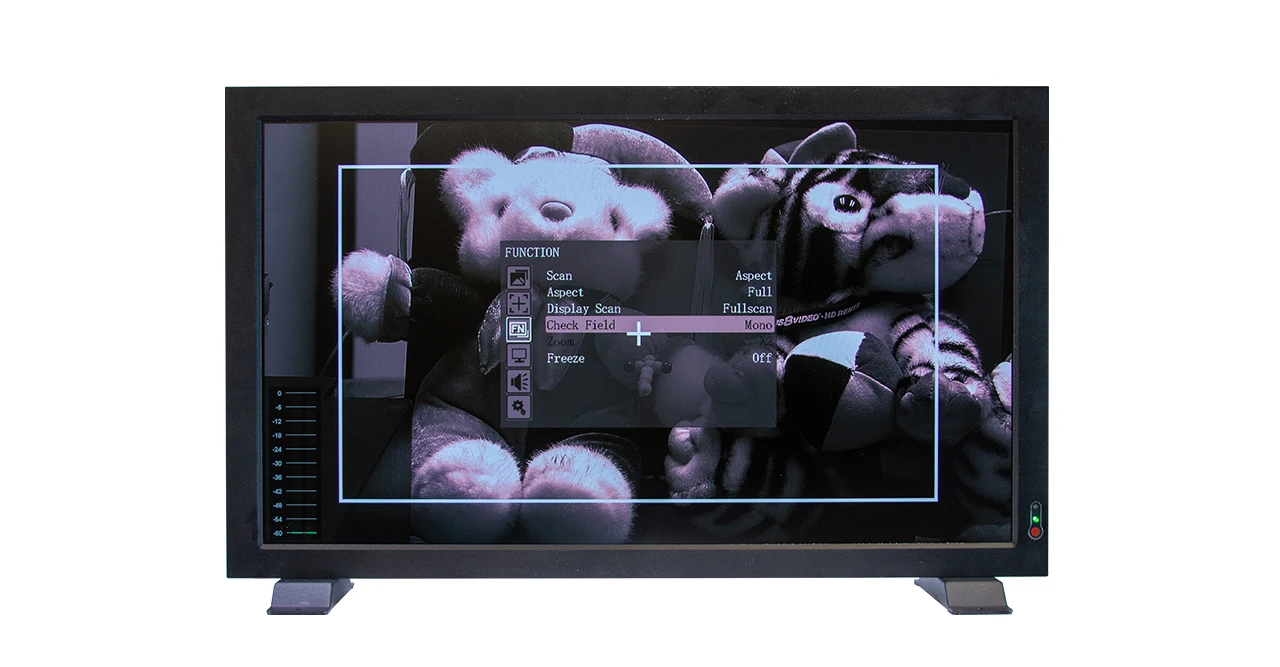

- Center Marker / Safety Area
- 2ch Audio Level Meter
Specification | Dimension | Firmware, Spec & Manual
Series : Production Monitor | Key Features : 3G-SDI HDR
Product Features
- Model Number: VZ-215LED-HDR
- HDR (HDMI) PQ supported
- 3G-SDI 1 input and output loop-through
- Center Marker, Safety Area
- 1000 cd/m2 High Brightness
- Multiple Video Interface (3G-SDI, HDMI, VGA and Analog Video)
- VESA Mount
Display
| Screen Size | 21.5″ |
| Max Resolution | 1920 x 1080 (Full HD) IPS pixel |
| Pixel Pitch | 0.24825 x 0.24825 mm |
| Brightness | 1000 cd/m²(Typical) |
| Contrast Ratio | 1500 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 M |
| Color Space | 101% Rec. 709 |
| HDR | ST2084 300/1000/10000/HLG |

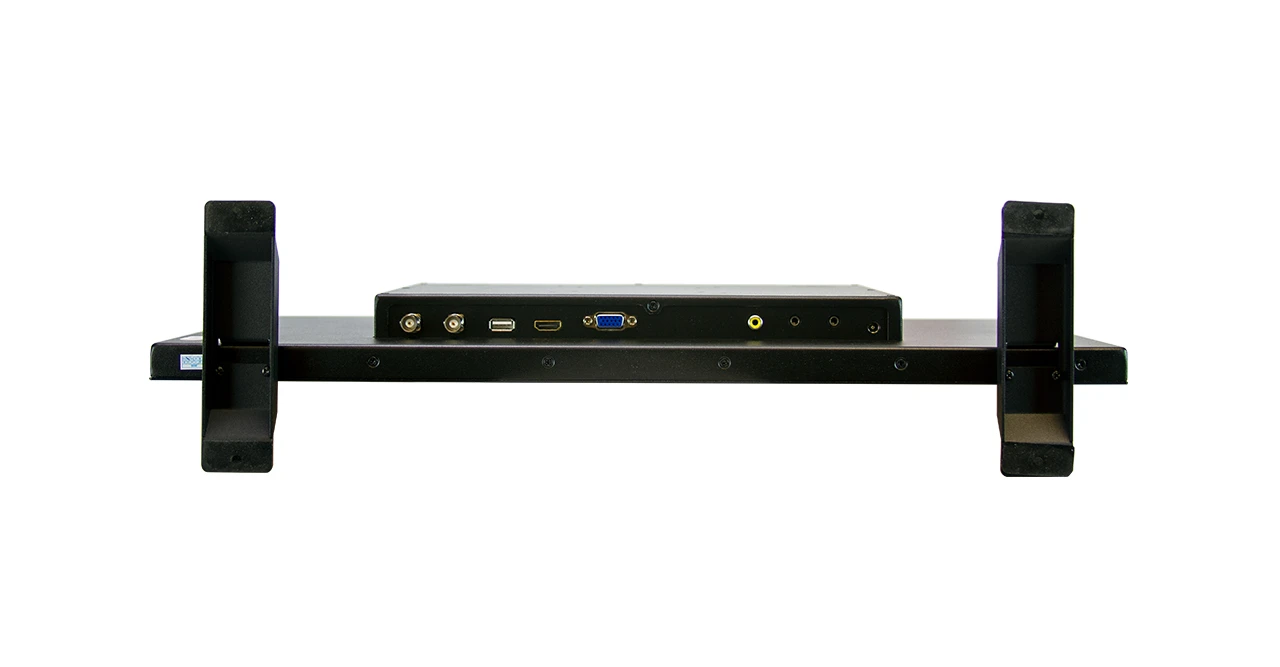

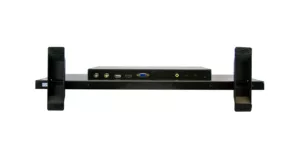

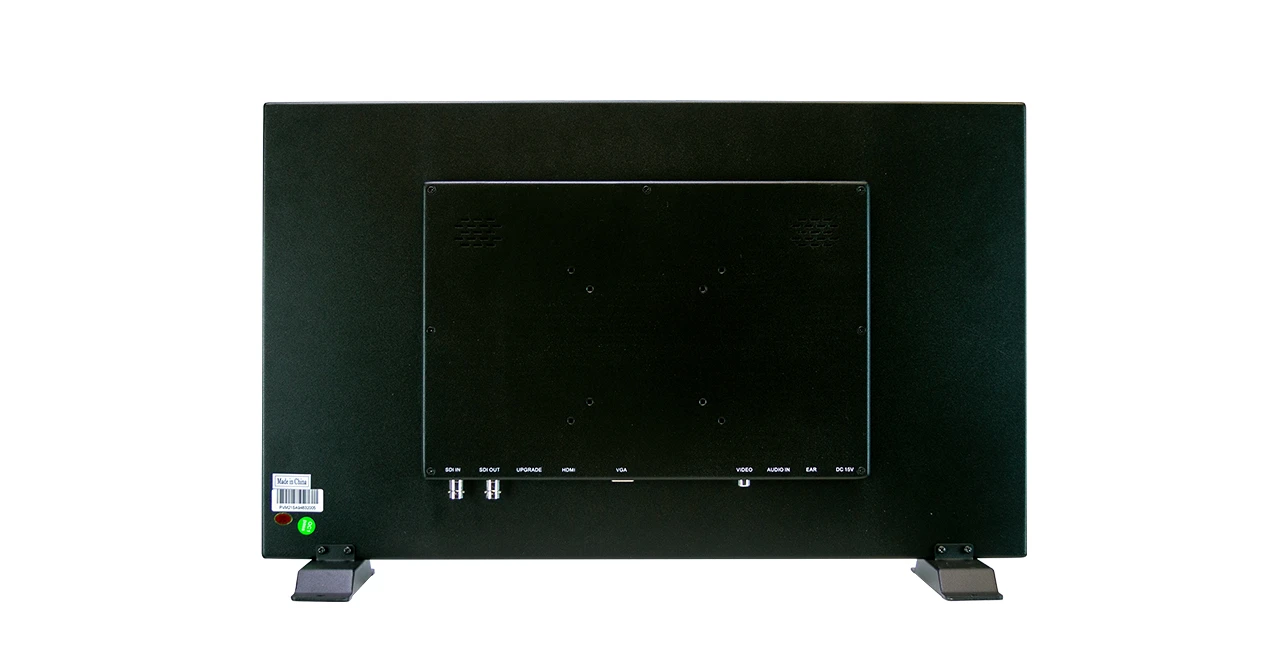

Interface
| 3G-SDI In / Out | 1 / 1 (Loop-through) |
| HDMI (1.4) In | 1 |
| VGA In | 1 |
| USB | 1 |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm – 2ch 48kHz 24 bit |
Dimensions & Weight
| Outline Dimension (W x H x D) | 20.66 x 12.33 x 0.78″ / 524.8 x 313.3 x 19.8 mm |
| Net Weight | 10.56 lbs / 4.8 kg |
Input Format
| SD-SDI/HD-SDI/3G-SDI (Level A&B) | 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p) |
| HDMI | 2160p (24/25/30p), 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p) |
General Summary
| Power – Electrical Ratings | DC 12~24V |
| Power – Consumption | ≤ 36 W (15V) |
| Warranty | 2 Years |
| Operating Temperature | -32 ~ 122°F / 0 ~ 50°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount / Anton Bauer Mount (Option) |
| Package Include | 12V DC Adapter x 1, Manual x 1, VGA Cablex1, HDMI A/A Cable x1, AV Cable x1, Rack Mount Bracket Set x1, Desktop Stand Set x 1 |

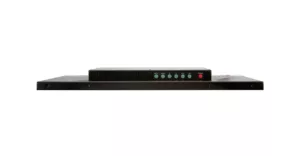

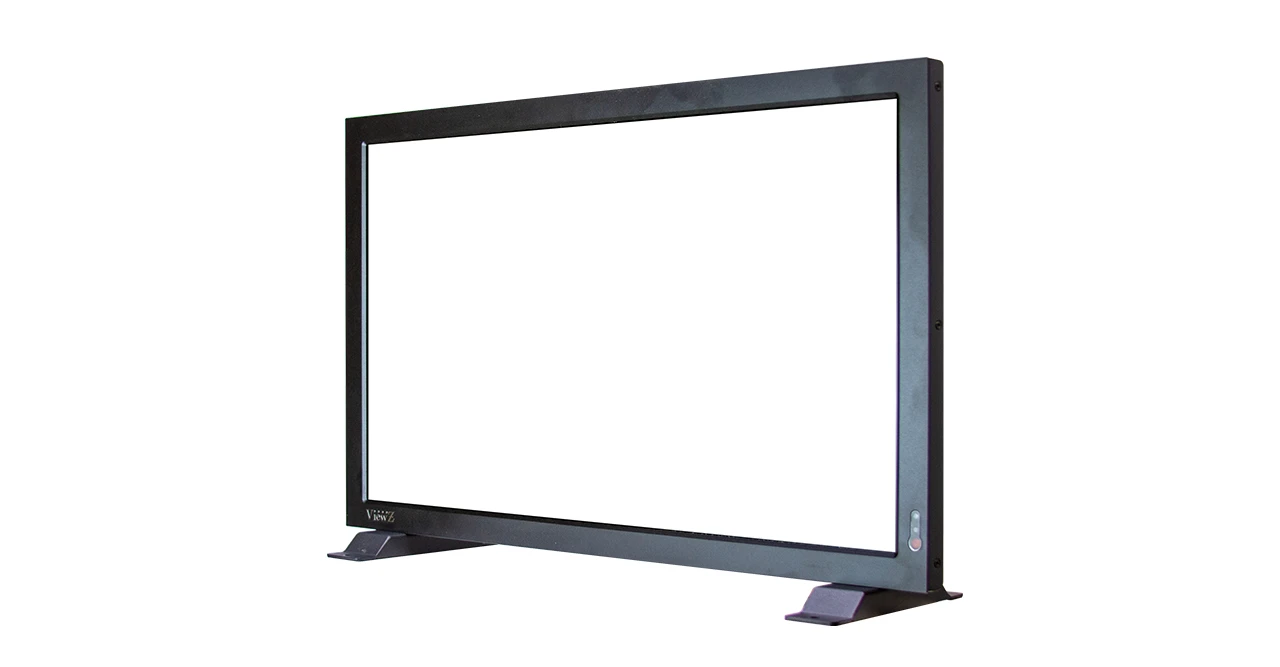

Product Dimension & Weight
Click below to enlarge
