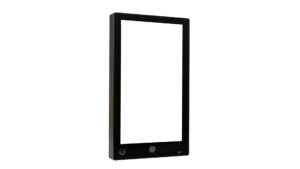

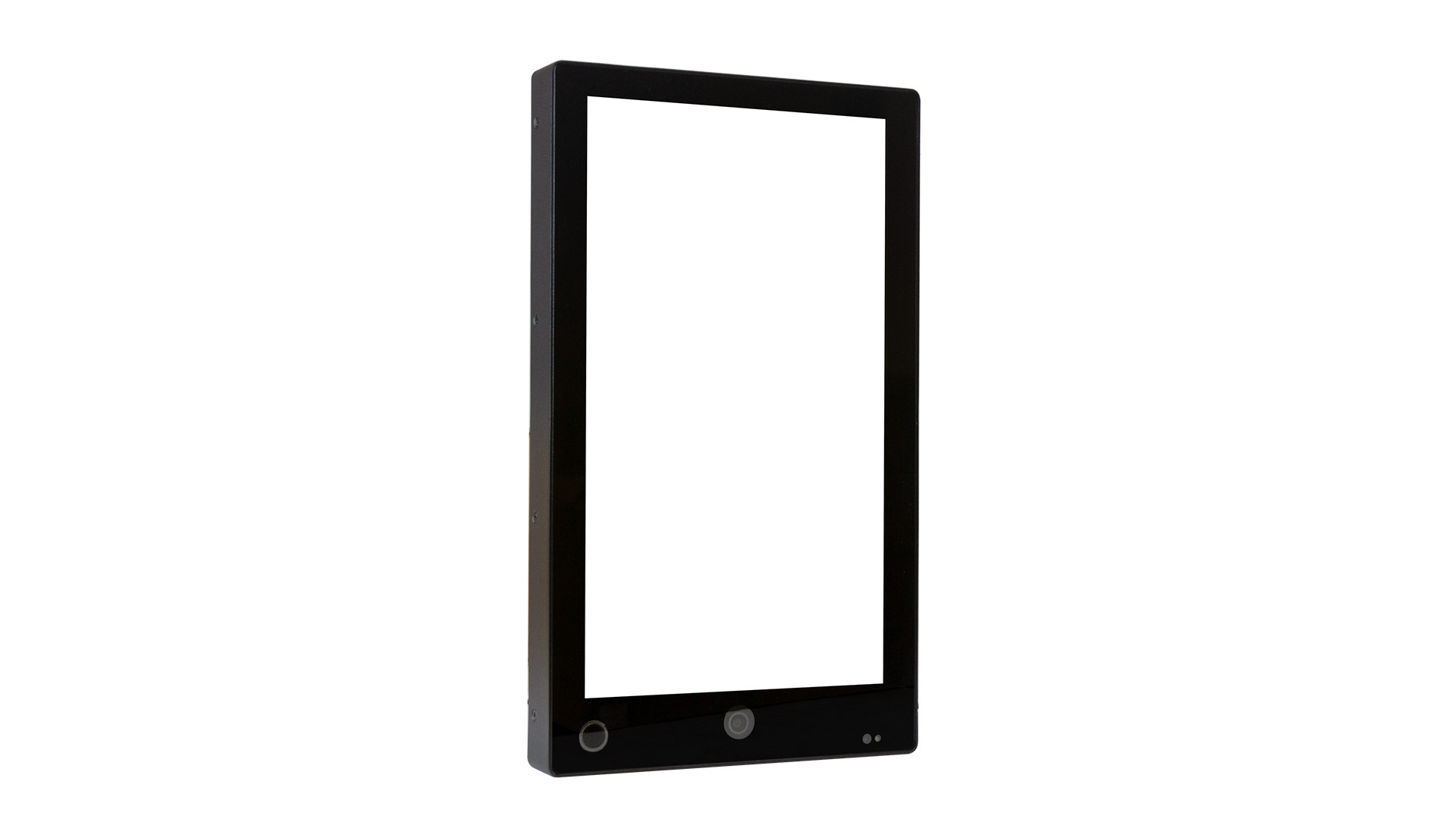

VZ-PVM-P2W3 / P2B3

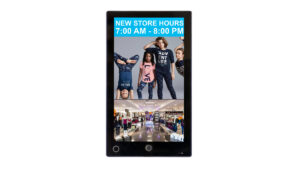

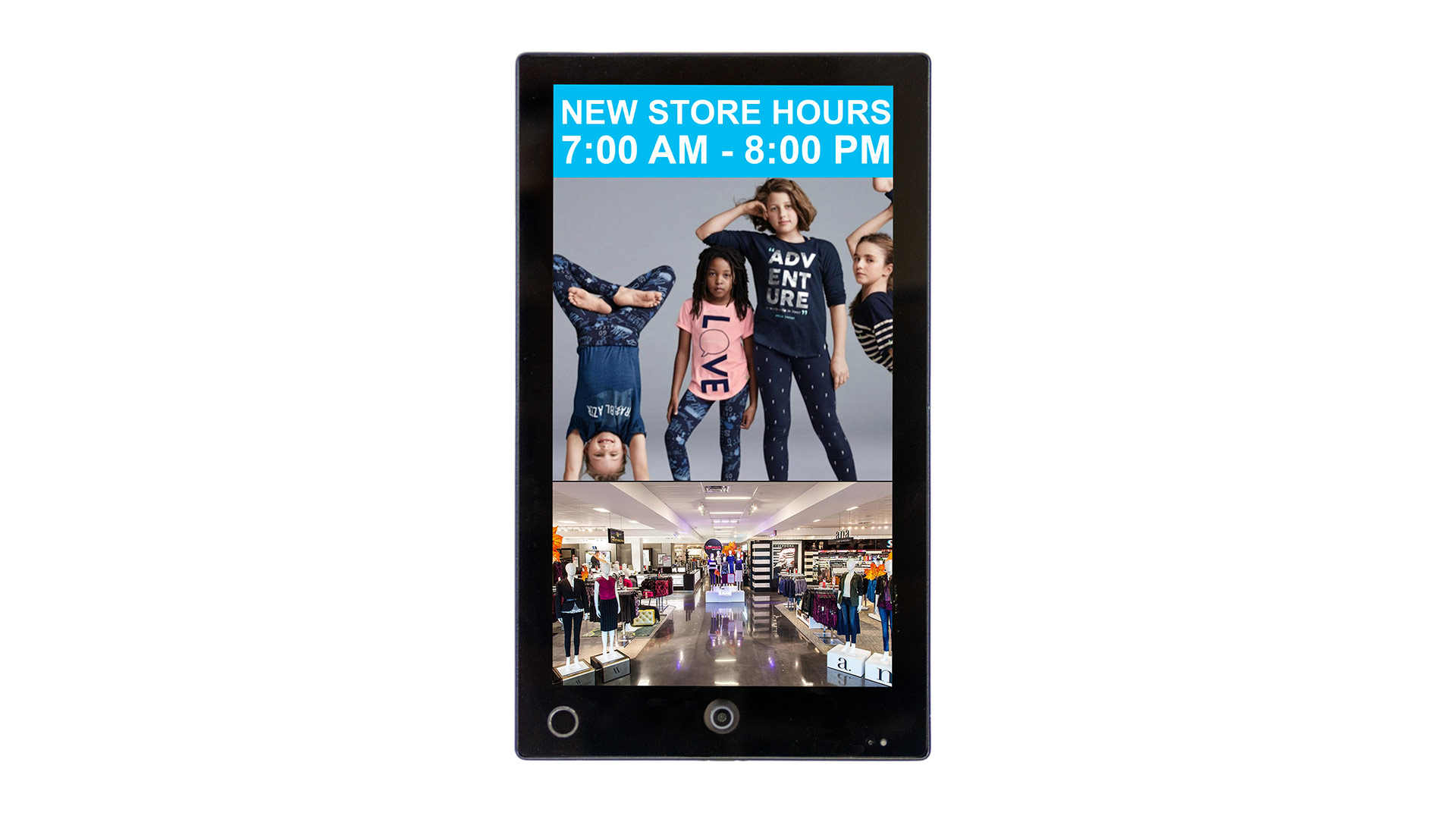

Smart AD PVM by ViewZ is a CMS capable PVM solution with advanced digital signage features designed for multi-location retails that rely on central management of signage contents.
- 15” Mega Pixel IP Full HD 1080p Resolution
- Built-in Android OS w/CMS for Digital Signage
- CMS will operate via Cloud Server or Intranet Server System
- Onvif Profile-S Compliant
- Camera Motion Sensor
- Auto Power Recovery
- Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
- BNC(NTSC/PAL), RJ-45, Audio
- Supports Dual Voltage 24V and 12V DC
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : Smart AD PVM | Key Features : Onvif Content Management
Compatible Mounts & Accessories
Product Features
- 15” Mega Pixel IP Full HD 1080p Resolution
- Onvif Profile S Compliant
- Built-in Android OS w/CMS for Digital Signage
- Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
- Supports 24V DC and 12V DC
- BNC(NTSC/PAL), RJ-45, Audio
- Camera Motion Sensor
- Auto Power Recovery
- “A“ Commercial Grade LED
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Ordering Information : Parts #
| Model Features | Family | Series | Size | Color | Voltage |
| 15″, Black, DC 24V & 12V | VZ-PVM- | P | 2 | B | 3 |
| 15″, White, DC 24V & 12V | VZ-PVM- | P | 2 | W | 3 |
- Series: P (Portrait IP PVM)
- Size: 1 (13.3inch) , 2 (15inch) , 4 (32inch) , 5 (43inch)
- Color: B (Black) , W (White)
- Voltage: 3 (P.o.E./ DC12V), 4 (PoE)
Powerful Content Management System for Remote Control
One Server Control Unlimited Smart AD PVMs
ViewZ Smart AD PVM Content Management Software(CMS) allows the administrator to control every Smart AD PVM in the organization’s Intranet or Internet. From a centralized location, the signage contents that reside on a centralized server would be distributed to multiple units/locations either manually or automatically based on a set schedule.
Introduction
CMS Software
Spec Overview
Smart AD PVM - Creating a Group
Smart AD PVM - Registering a Device
Smart AD PVM - Adding Contents
Smart AD PVM - Creating an Advertising
Smart AD PVM - Setting a Schedule
Smart AD PVM - Usage Report
Display
| Screen Size | 15″ |
| Max Resolution | 1080 x 1920 @60Hz |
| Pixel Pitch | 0.17925 mm x 0.17925 mm |
| Brightness | 250 cd/m²(Typical) |
| Contrast Ratio | 800 : 1 |
| Aspect Ratio | 9 : 16 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 262 k |
| Response Time | < 25ms |

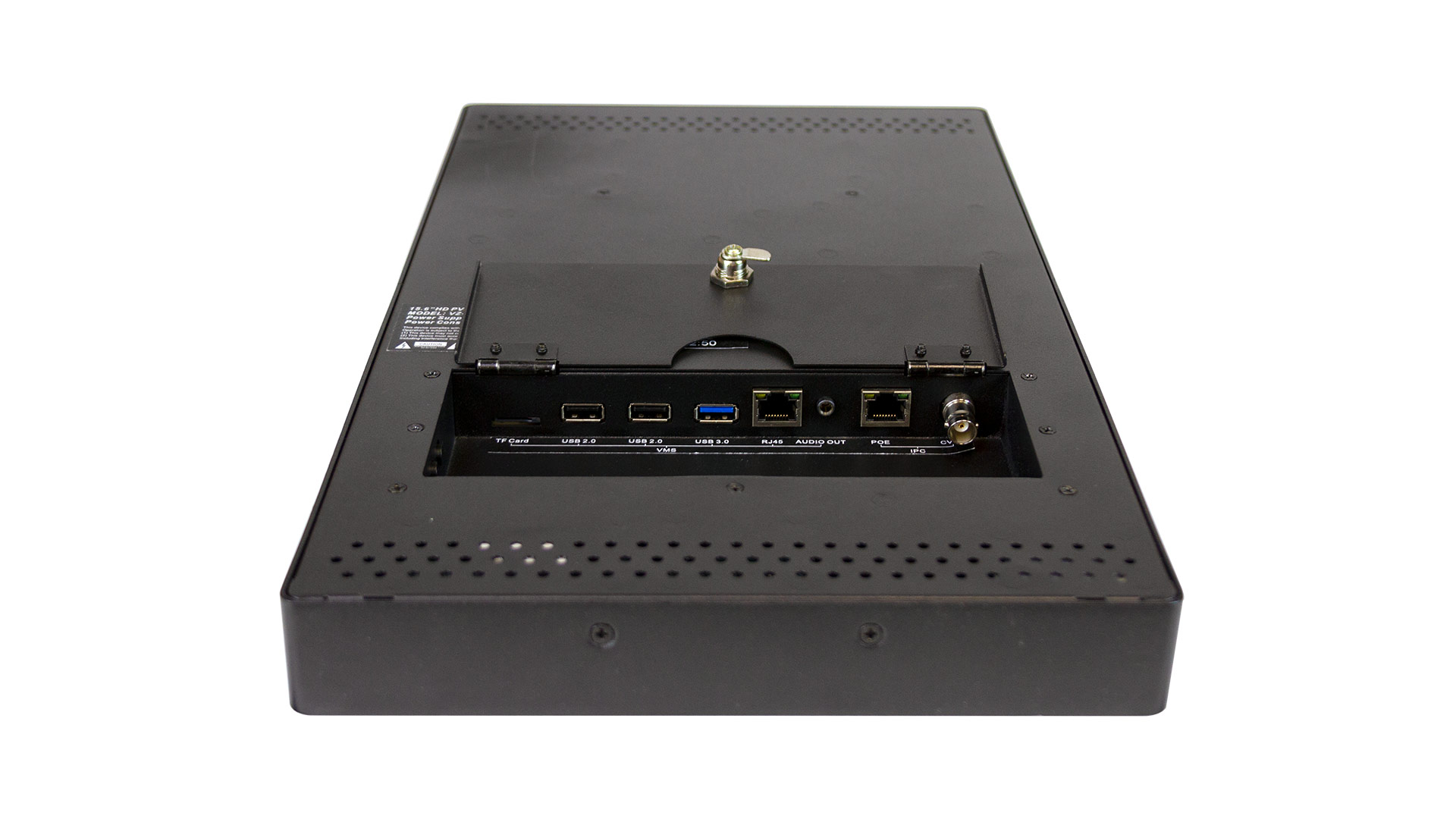

Interface
| CVBS (Camera) Out | 1 |
| RJ 45 (TCP/IP) | 2 (CMS, IP Camera) |
| Audio Out | 1 |
| Micro SD Card In | 1 |
| USB In | 3 |
IP Features
| Ethernet Interface | 10/100Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP |
Special Features
| Multi Display Function | PIP / PBP |
| Filter Type | 3D Comb filter / De-Interlace |
| Blinking Message “Recording” | Yes |
| Timed Switching Capabilities between two cameras | Yes |
| Multi-Lingual Language | English, Spanish, French, Russian, Portuguese |
Android Board Spec
| Android OS | Ver. 6.1. |
| CPU | RTD1295 Quad Core, ARM Cortex-A53 64bit |
| RAM | 2GB DDR4 |
| Flash Memory | 32GB |
Dimensions
| Outline Dimension (W x H x D) | 9.39” x 16.04” x 1.38” / 238.6 mm x 407.5 mm x 35.3 mm |
| Net Weight | 6.61 lbs / 3.0 kg |
| Gross Weight | 9.25 lbs / 4.2 kg |
Mount
| Vesa | 100 mm x 100 mm / M4 x L10 Screws |
Camera
| Camera Type | 2.1 Mega Pixel IP Camera |
| Lens | 2.8 mm Fixed Lens |
| Active Pixels | 1080(H) x 1920p(V) 30 fps |
| Image Sensor / Encoder Chipset | SONY IMX290 / Hi3516D |
| Function | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB |
| Video Compression | H.264, MJPEG, CBR, VBR support |
| Video Out | 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output |
| Motion Detection | Support |
| Support Protocol | TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP |
| Ethernet Port | 10 / 100 Base-T |
| Web Application | IE 6 ~ 11, Firefox |
| Integration Protocol | ONVIF 2.6 (supported) |
General Summary
| Transmitter – IR Remote Control | Yes |
| Input Power – Electrical Ratings | DC 24V & 12V (3A) |
| Power – Consumption | ≤ 12 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 32 – 122°F / 0 – 50°C |
| Compatible Mounts – Wall | VZ-AM02-A, VZ-SM01 |
| Compatible Mounts – Ceiling | VZ-CM308 |
| Regulation | FCC(A), CE, RoHS |
Product Dimension & Weight
Click below to enlarge
