The ViewZ VZ-MV802 Multiviewer platform displays multiple auto-detecting video inputs at different formats on a high resolution display up to resolutions of 2048x1080. The VZ-MV802 Platform combines the display of video windows, audio meters, label/UMD, tallies, alarms and indicators in a very space efficient package.
- Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2
- Output resolution up to 2048 x 1080 (incl. 1080p)
- Multiple labels per video windows UMD, OMD, IMD, standalone labels
- Automatic input aspect ratio detection
- User-defined 24 presets + Unlimited Custom preset
Specification | Dimension | Spec & Manual
Series : Multiviewer
Product Features
- Model Number: VZ-MV802
- Fast switching among input channels and combined multiple images
on single monitor - 8 DVI Input / 2 HDMI Out
- Field up-gradable to allow discrete audio (AES/AA)
- Output resolution up to 2048 x 1080 (incl. 1080p)
- Multiple labels per video windows – UMD, OMD, IMD, standalone labels
Automatic input aspect ratio detection - Built-in video, audio alarm detection – no audio, audio high/low, no video, video black, video frozen
- Up to user-defined 24 presets for display layout
- 3G ready. Up-gradable to 3Gbit/s HD inputs (OPTION)
- Front panel headphone jack with volume adjustment for audio monitoring
- Front panel buttons for quick preset recalls
- 1 RU with redundant power supply
- 2-Year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Specification
| HDMI® signals with Deep Color and HDCP | 1.4 / 2.2 |
| On Screen Display | Skin Technology for customizing borders, labels (4 per window), fonts, tally LEDs, clock faces, logos, UMD, OMD, IMD, dynamic UMD |
| Alarms | No audio, audio high/low, no video, video black, video frozen |
| Discrete AES Audio | Up to 4ch/video input (2 pairs, balanced/unbalanced) |
| Discrete Analog Audio | Upto 4ch/video input (2 pairs, balanced/unbalanced) |
| Control | Front panel buttons for quick preset recalls, GPIs, ASCII Protocol (AXP), Director |

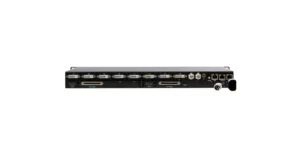

Interface
| DVI-I Input | 8 |
| HD/SD-SDI | 8 (Optional) |
| HDMI Output | 2 |
| Discrete AES Audio Output (BNC) | 1 – Line Level AES Audio Monitor |
| Discrete Audio Output (SCSI) | 2 – Discrete Audio and GPI/O |
| Discrete Analog Audio Output | 1 |
| LTC (BNC) | 1 – Sync on Screen Clocks |
| Serial Port (RJ-45) | 1 – RS-232 |
| Network (RJ-45) | 1 – 10/100/1000 Base-T |
| General Purpose IO (RJ50) | 1 – Control, Alarm and Tally |
Resolution
| Video Output | 800 x 480 (2048 x 1080 @60hz) |
Dimensions & Weight
| Outline Dimension (W x H x D) | 18 x 13 x 1.75” / 457.2 x 330.2 x 44.5 mm |
| Net Weight | 12 lbs / 2.8 kg |
Mount
| Server Chassis | 1U (19″) |
General Summary
| Transmitter – IR Remote Control | YES |
| Power – Electrical Ratings | DC 12V/5A | AC 90~250 V (50/60Hz) 1.5A |
| Operating / Storage Temperature | 32 ~ 104°F ( 0 ~ 40°C ) / -4 ~ 140°F (-20 ~ 60°C ) |
| Operating / Storage Humidity | 20 % ~ 80 % RH / 10 % ~ 90 % RH |
| Operating Humidity | 20 % ~ 90 % RH |
| EMI/RFI | FCC Part 15 Class A, CE, EU EMC, C-tick |
| Accessories | VGA to DVI Adapter x8, Rack Mount Bar x1, RJ-50 toDB9 GPI I/O Cable x1, Power Cable x1, RJ-50 to DVI Adapter x2, RJ-50 to HDMI x1, SCSI-DB9 GPI/Audio Cable x2, RJ45 to DB9 RS232 Cable x 1, CD (SW&Manual) |

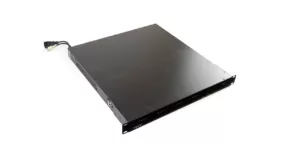

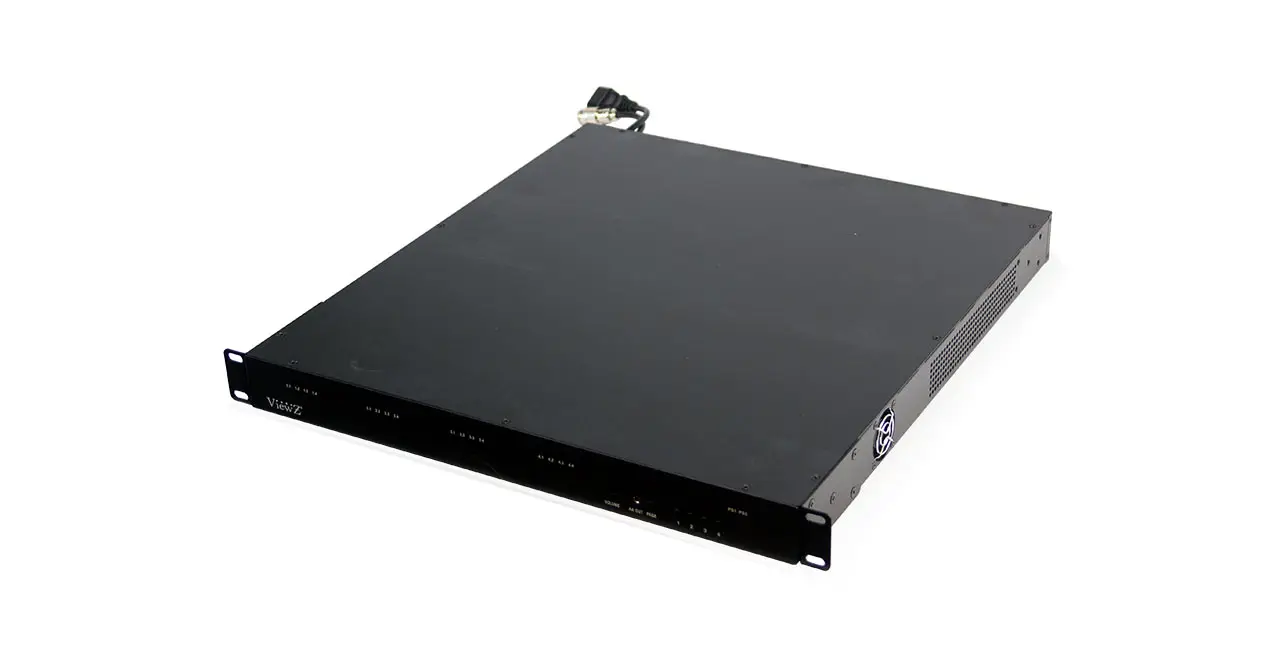

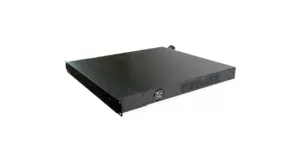

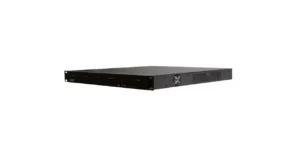

Product Dimension & Weight
Click below to enlarge
