  • ACT 1  ACT 2  PSU 2  PSU 3  DC-24-320  VZ-PVM-I1W4 PoE Injector
    • Output : 12V DC / 5.83A
    • Input : 100~ 240VAC / 50~60Hz / 1.5A
    • Fully testified for 10.1" RTC, 17" & 19" RTN, 21.5" LED-SN
      19", 22" & 24" CME / CMP / CMX
    • Smart Device Surge - Over-Voltage, Over-Heat, Overload,
      Over-Current and Short- Circuit Protection
    • Complies with International Safety Standards &
      Environmental Protection Requirements
    • Wide Voltage Compatibility
Hover to zoom, click to view

Compatible Monitors

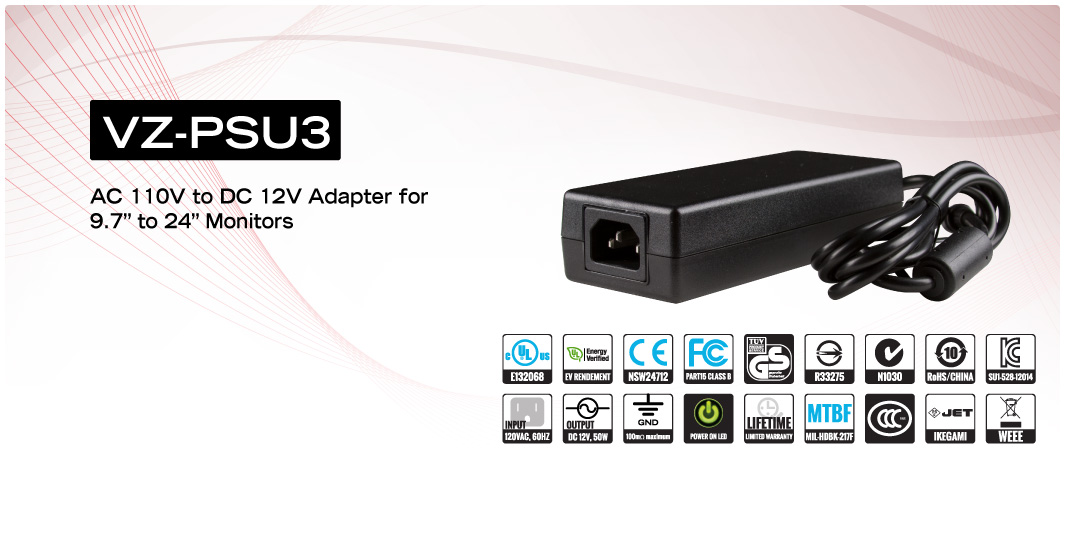

Model Number: VZ-PSU3
Fully testified for 101 RTC, 17" & 19" RTN, 19" & 22" & 24" CMP / CME / CMX, 21.5" LED-S
DC 12V / 5.83A output
AC 100~240V / 50 or 60Hz / 1.5A input
Green Power On LED
Smart Device Surge - Over-Voltage, Over-Heat, Overload,
Over-Current and Short- Circuit Protection
Safe & Reliable
Wide Voltage Compatibility
Complies with International Safety Standards
Compact & Light-Weight
Long product life, MTBF of 50,000 hours
Safety : UL, KCC, CCC, TUV/GS, BSMI, PSE, RCM
EMI : CE, FCC/UL













Download VZ-PSU3 PDF Specifications Sheet
















  Input Voltage 100 ~ 240V AC, 50/60Hz, 1.5 A
  Output Voltage 12V DC
  Output Watt 70 W
  Output Current 5.83A

  Regulation Safety Standards UL/CUL(ULE132068 Level 3), RoHS,
  KC-MARK(KTL SU10528-12014),
  C-Tick (N1030), BSMI (R33275)
  EMI Standards FCC(PART15 CLASS B), VCCI (CLASS B),
  CISPR (Part 22, CLASS B)


  Input Plug Type IEC320 C14 AC PIN
  Output Cord WIRE: 14AWG /1571 1500mm
  PLUG: JACK PLUG 5.5*2.5*12.01mm


  Outline Dimension 2.36" x 5.9" x 1.37"
  (Width x Length x Height) 60mm x 150mm x 35mm
  Net Weight 1.10 lbs / 0.5 kg


  Short-Circuit Protection Short circuit protection with Auto Recovery function
  Over-Voltage Protection 18V DC maximum auto-recovery function
  Over-Current Protection 9A maximum with auto-recovery function


  Construction PC material
  Operating Humidity 20% ~ 80% RH. Non-condensing
  Storage Humidity 10% ~ 90% RH. Non-condensing
  Operating Temperature 32°F ~ 104°F / 0°C ~ +40°C (10-90%R.H)
  Storage Temperature -40°F ~ 158°F / -40°C ~ +70°C (10-90% R.H)
  Cable UL AWM Style 1571
  Cooling Cooling shall be with natural convection cooling





  * Specifications subject to change without notice
