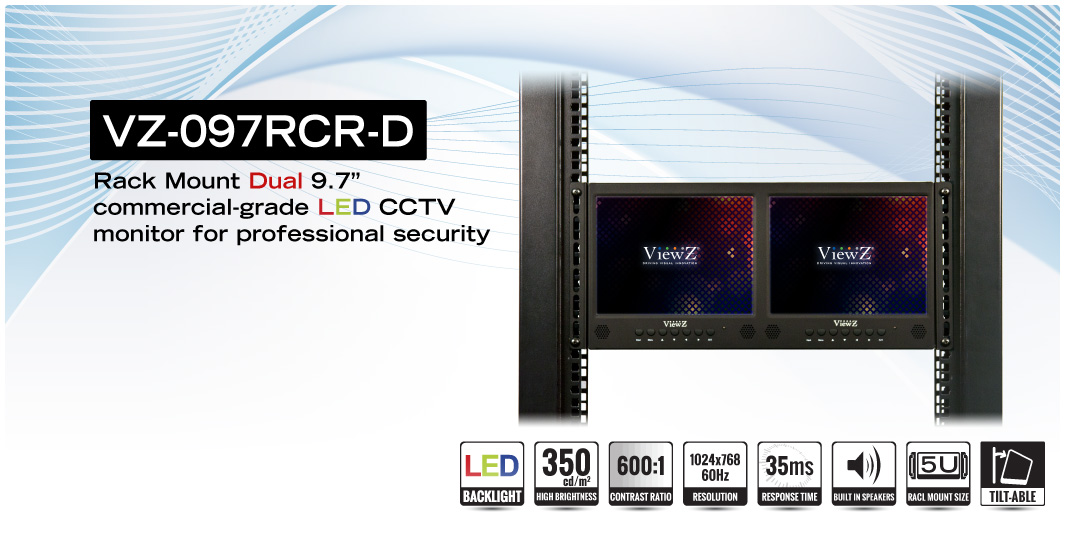

Model Number: VZ-097RCR-D

Dual 9.7” Display LED Rack Mount Ready
Black Flat Panel IPS LED "A" Commercial-Grade Monitor
1024x768 / 4:3
BNC, RCA, VGA, Trigger
2D Comb Filter / De-Interlace
520 TV Line
Stereo Speakers
DC 12V
3-Year Warranty











Download VZ-097RCR-D PDF Specifications Sheet

Download VZ-097RCR-D PDF Dimension Diagram

Download VZ-097RCR-D PDF Manual
















  Screen Size 9.7"
  Max Resolution 1024x 768 @60Hz
  Pixel Pitch 0.192mm x 0.192mm
  Brightness 350cd/m²(Typical)
  Contrast Ratio 600:1
  Aspect Ratio 4 : 3
  Viewing Angle (H/V) 160°/160°
  Display Color 0.26 Million
  Response Time < 35ms
  Video System NTSC / PAL


  AV (Composite) In / Out (BNC type) 1 / 1 (2 / 2 total)
  AV (Composite) In / Out (RCA type) 1 / 1 (2 / 2 total)
  VGA In 1 (2 total)
  PC Audio In 1 (2 total)
  Trigger In 1 (2 total)


  Built-in Speaker 1 W x 2 (4 total)


  Filter Type 2D Comb filter / De-Interlace
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension 18.94" x 8.28" x 1.60"
  (W x H x D) 481.076 mm x 210.312 mm x 40.58 mm
  Net Weight 6.61 lbs ( 2.99 Kg )
  Gross Weight 10.58 lbs ( 4.79 Kg )


  Form Factor 5U Rack Mounting
  Mount Type Tilt-able Rack Mount


  Transmitter - IR Indigator YES
  Power - Electrical Ratings DC 12V, 1.36 A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 16.4 W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations NRTL(=UL), FCC(A)





  * Specifications subject to change without notice
