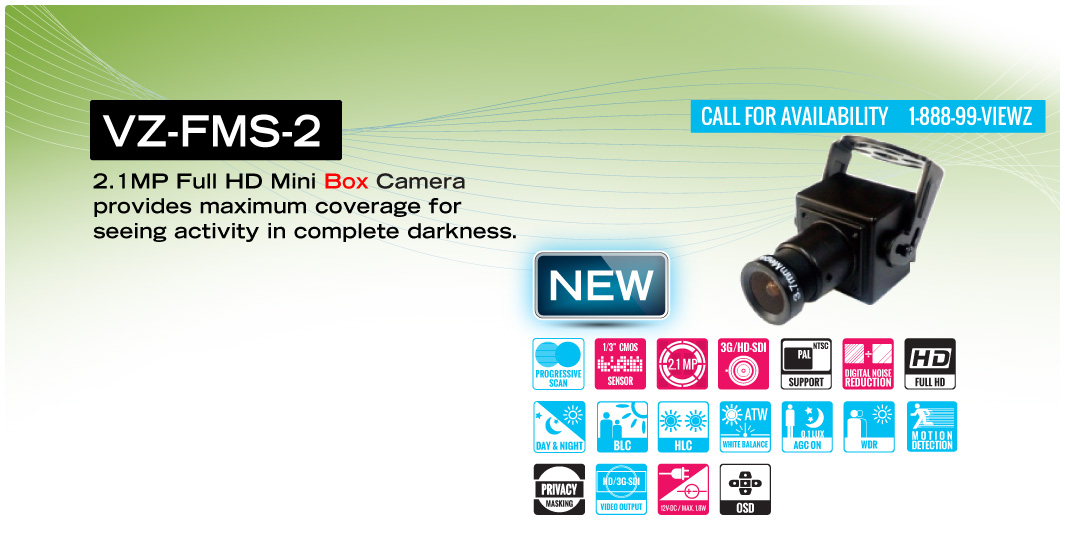

Model Number: VZ-FMS-2 |
|
Full HD 1080p over coaxial cable, BNC connection |
|
1/3” 2.1MP Progressive Scan CMOS Sensor |
|
Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm) |
|
0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux |
|
More than 1000 TVL, WDR, Privacy Masking, Motion Detection |
|
No additional installation cost. (Compatible with existing coaxial cables) |
|
Video outputs for diverse applications. ( 3G/HD-SDI ) |
|
DNR (Digital Noise Reduction) |
|

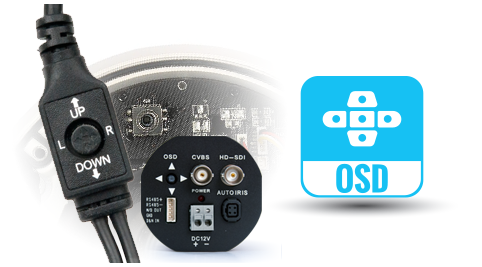

Built in OSD Control Switch | |
DC 12V, 400mA |
Download VZ-FMS-2 PDF Specifications Sheet
Image Sensor | 2.1 Megapixel 1/3” CMOS Sensor |
HD Scanning System | Progressive Scan |
Min. Illumination | 0.1Lux (F1.2, 50 IRE, AGC MAX) |
/ DSS X4:0.01 Lux | |
Signal System | NTSC / PAL |
S/N Ratio | More than 50dB (AGC OFF) |
Electronic Shutter Speed | MANUAL( 1/30(25) ~ 1/30,000 sec ) |
AGC | Adjustable 0 ~ 10 |
Backlight Compensation | BLC (Off / On) |
WDR | Off / Low / Middle / High |
Mirror | MIRROR, FLIP (Off / On) |
White Balance | AUTO / AUTOEXT / PRESET / Manual (R-Gain, B-Gain) |
Day & Night | ICR ( Auto, B.W, Color, EXT ) |
Digital Noise Reduction | OFF, LOW, MIDDLE (default), HIGH |
BLC | Support |
Digital Zoom | Support |
Privacy Masking | Support |
Motion Detection | Support |
Camera ID | Support |
Sens - up | On (X2 / X3 / X4) / Off |
HD/3G-SDI | 1 |
Video Output Resolution | 1080p (29.97, 59.94fps) / 1080i (59.94fps) / 720p (29.97, 59.94fps) / Color Bar Signal |
NTSC, PAL Composite (1.0Vp-p ,75ohm) | |
Dimensions | 0.9” x 0.9” x 1.45” 23.0 mm x 23.0 mm x 37.0 mm |
Net Weight | 0.11 lbs / 50g (Without Cable) |
Default Language | English (selectable) |
Construction | Aluminium Alloy |
Lens Mount | Fix 1/2.5” 3.6mm,M12 (Option: 6mm) |
Power Supply | DC12V 150mA |
Power Consumption | Max. 3.6W |
Operating Temperature | 14 - 122 °F / -10°C ~ 50°C |
Storage Temperature | -4 ~ 158°F / -20°C ~ 70°C |
Humidity | 0% to 90% |
* Specifications subject to change without notice |

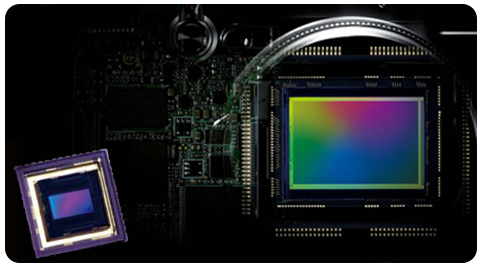

2.1 Megapixel CMOS Sensor
ViewZ FMS-2 camera uses a CMOS Sensor. ViewZ FMS-2 camera boast 3 Full HD CMOS image sensors for RGB. This image sensor is 1/3”, 2.1-megapixel (1920 x 1080) and are capable of acquiring full-HD images.

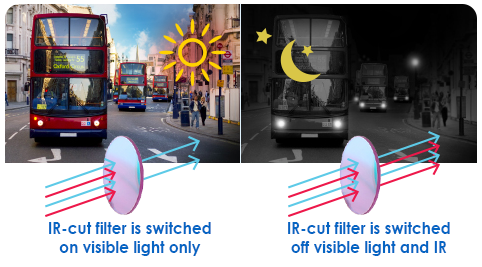

DIGITAL DAY & NIGHT
Equipped with a built-in ICR, ViewZ FMS-2 camera can deliver colorful videos during the day and black & white video when the illumination drops below a certain lux level.
WIDE DYNAMIC RANGE (WDR)
ViewZ FMS-2 cameras’ WDR technology provides clearer images and even lighting in applications that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light.

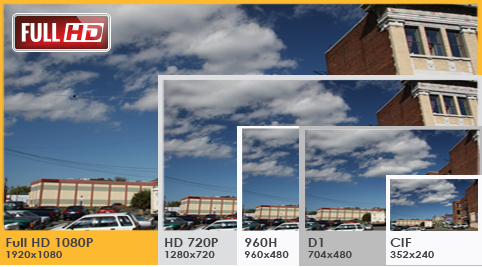

FULL HD RESOLUTION
ViewZ FMS-2 cameras feature 1920x1080 (2.1MP) HD output resolution with active 1920 (H) x 1080 (V) pixel resolution

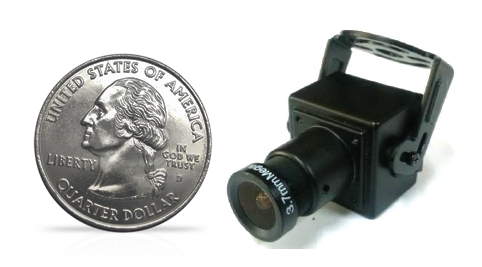

SMALL BUT STRONG
ViewZ FMS-2 (HD Mini camera) are small yet feature- rich. Combination of HD resolution and features like day/night and digital WDR results in great performance at a great price.

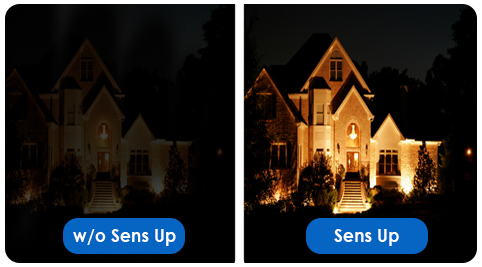

SENS-UP (SLOW SHUTTER)
See color images in the dark! By automatically slowing the shutter speed, all ViewZ FMS-2 camera is able to pick up the slightest traces of light to display a bright image.

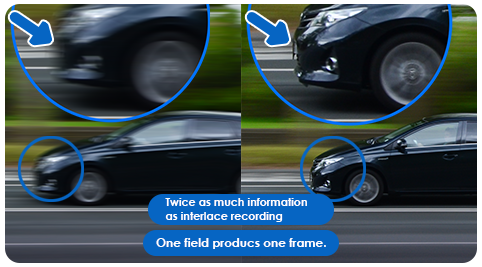

PROGRESSIVE SCANNING SYSTEM
ViewZ FMS-2 cameras utilize progressive scanning technology which eliminates the jagged edged artifact seen commonly in interlaced scanning.
MEGAPIXEL LENS
To achieve the full resolution of a megapixel camera, it is essential to use a high-quality megapixel lens. Overall image quality is greatly affected by the quality of the optical image directed onto the image sensor.
ViewZ Megapixel cameras provide high contrast, brightness and sharpness across the entire image plane. Non-megapixel lenses will not fully display the resolution of megapixel sensor, especially in the corner areas of the image.

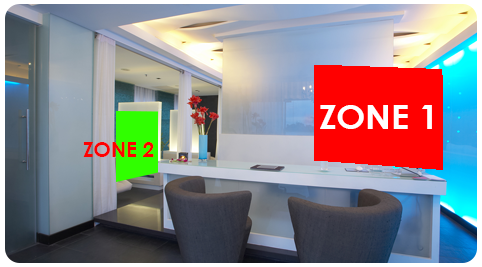

PRIVACY MASKING
Privacy Masking is a feature on ViewZ FMS-2 camera. It allows you to blur or completely block certain areas seen on the monitor within the field of view of the camera.
MOTION DETECTION
Whether you're waiting for an expected event, hoping you don't spot an unwelcome visitor, or just curious about what happens when you're not around, ViewZ FMS-2 cameras' motion detection function starts recording when motion is detected.

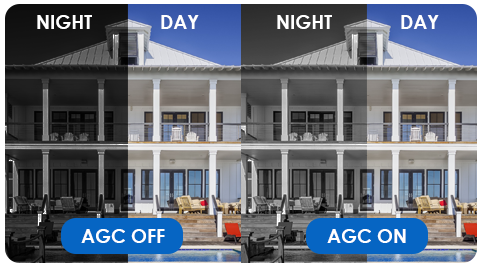

AUTOMATIC GAIN CONTROL
AGC (Automatic Gain Control) increases the amount of amplification in certain conditions to bring the video signal up to the minimum required level. AGC also reduces noise and picture attenuation as well as the signal to noise ratio to provide a quality picture.

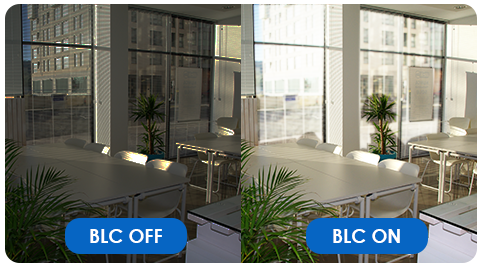

BACKLIGHT COMPENSATION
Backlight Compensation controls the brightness level of the screen in order to distinguish objects against backlight.
DIGIAL NOISE REDUCTION
(NR) Noise Reduction is used in order to obtain a high quality output image and enhance compression efficiency. We offer Edge Preserving and Motion Adaptive DNR.
