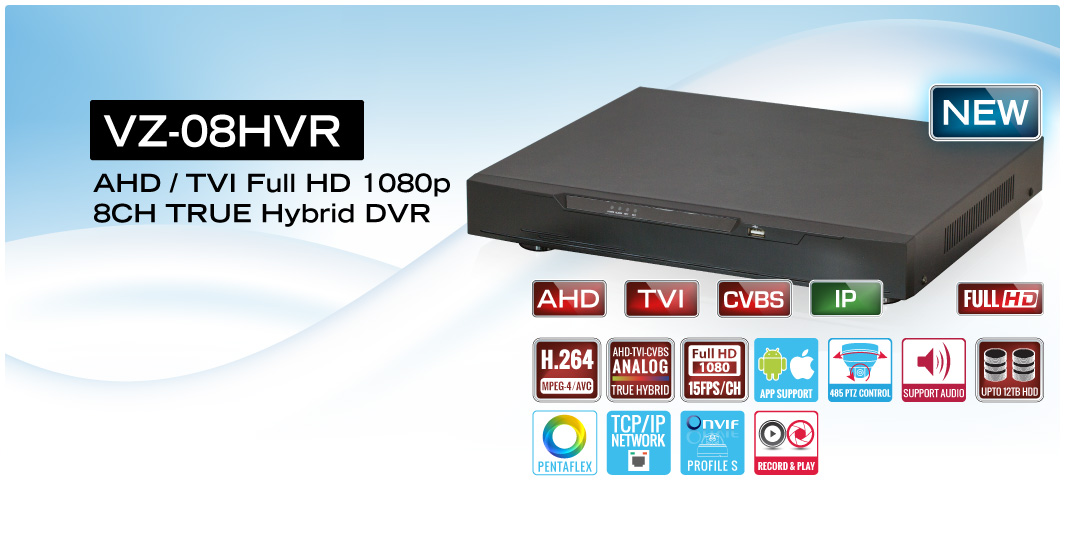

Model Number: VZ-08HVR |
|
TRUE hybrid DVR |
|
Real time display & recording for all analog channels |
|
Encoding & Decoding : 1080p/15fps |
|
H.264 high profile compression |
|
HDMI and VGA output (1080p) |
|
Backup Options : USB drive, internal SATA HDD (optional), network |
|
Backup Format : BMP, AVI, proprietary format |
|
Hard Drive Max Capacity: 6 TB / each |
|
Digital Zoom, DLS (Day Light Saving) |
|
Audible E-mail notification |
|
App Available at GOOGLE PLAY STORE for Android devices and APP STORE for Apple devices |
Download VZ-08HVR PDF Specifications Sheet
| Total | 8 Ch BNC (AHD / TVI / CVBS), TCP / IP |
| Pure Analog | 8 CH 1080p |
| Mixed | 7CH 1080P (Analog) + 1CH 1080P (Network) |
| 6CH 1080P (Analog) + 2CH 1080P (Network) | |
| 1CH 1080P (Analog) + 7CH 1080P (Network) | |
| Pure Network | 8CH 1080P / 8CH 960H / 8CH 3M / 8CH 5M |
| Video Output - Main Monitor | HDMI and VGA (1920x1080) |
| Sensor Input | 4 |
| Alarm Output | 1 |
| Input / Output (RCA) | 8 / 1 |
| Audio Codec | G.711A |
| Two Way Audio | Support |
| Pentaplex | Live / Record / Playback / Backup / Network |
| Compression | H.264 (High Profile) |
| Recording Mode | Manual, Event, Timer |
| Playback | 8CH (Pure Local Input Mode) |
| Multi-Decoding | 1, 4, 8 |
| Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 |
| HDD Interface | Serial ATA II |
| Max. Capacity of 1 HDD | 6TB |
| Internal HDD number | 2EA ( 1 EA w/o ODD) |
| Backup Media | USB External HDD, Network |
| Backup Format | BMP, AVI, Proprietary Format |
| USB Port | 2EA (Rear 2) |
| Usage - 1920 x 1080 Input | 20 ~ 30Gb / Day by Channel- 15 fps/ch |
| Usage - 1280 x 720 (720p) Input | 0 ~ 20 Gb / Day by Channel- 15 fps/ch |
| Usage - 960H (Analog) Input | 12 ~ 20Gb / Day by Channel- 15 fps/ch |
| Usage - Audio | 691.2 MB / Day by Channel |
| Video Input | 8 CH BNC ( AHD / TVI / CVBS ) |
| Video Output | 1 CH VGA, 1 CH HDMI |
| Audio Input / Output | 8 CH RCA / 1 CH RCA |
| Network Interface | 1 EA - RJ45 10M/100M Adaptive Ethernet Port |
| USB | Front - 1 EA, Rear - 2 EA |
| PTZ Control | RS485 - 1 EA |
| Apple / Android App Viewer | Support iOS / Android |
| Live | |
| Playback | |
| Web Viewer | Live |
| Playback | |
| Remote Setup | |
| Support Broswer at Windows OS - Firefox |
|
| PTZ Control | RS485, Support Multiple PTZ Protocols - 1EA |
| Termination | 1 |
| Dynamic DNS | Support (Free DDNS) |
| Dual Encoding for Network | Support |
| Network Interface | 10/100 base-TX Ethernet (RJ-45) |
| Digital Zoom | Support |
| DLS (Day Light Saving) | Support |
| Internal Beep | Support |
| E-mail Notification | Support |
| Outline Dimension (W x H x D) | 13.77" x 11.61" x 1.77" |
| 350.0mm x 295.0mm x 45.0mm | |
| Net Weight / Gross Weight | 4.40 lbs ( 2.0 kg ) / 6.4 lbs ( 2.90 kg ) |
| Power - Electrical Ratings | DC 12V, 2A (1 HDD) / 4A (2 HDD) |
| Power - Consumption | < 15 W (Excluding HDD) |
| Operation Temperature | 14°F ~ 104°F / -10 °C ~ 40°C |
| Storage Temperature | 14°F ~ 122°F / -10°C ~ 50°C |
| Operation Humidity | 20 - 80 % (Non-condensing) |
| * Specifications subject to change without notice |
