  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 19” LED Display Rack Mount (8U) CCTV Monitor
    • Rack Mount Built-In
    • 2 AV (CVBS) Input / 1 AV(CBVS) Output (Loop-through), HDMI, VGA
    • 3D Comb-filter, De-interlace, Built-in Speakers
    • Auto Source & Power Recovery
    • 3-Year Warranty
Hover to zoom, click to view

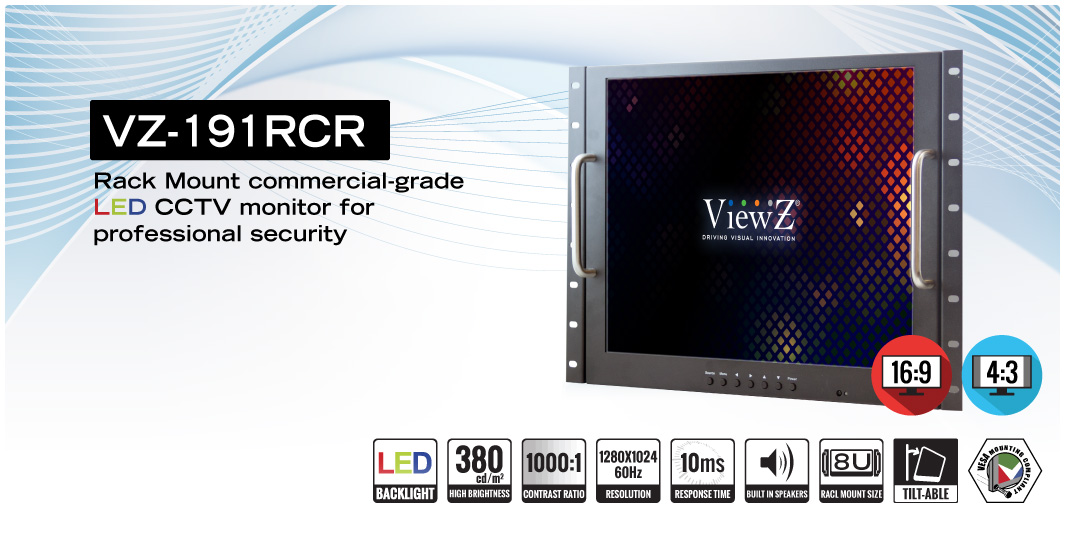

Model Number: VZ-191RCR

19” LED Display Rack Mount (8U) CCTV Monitor
Black Flat Panel IPS LED "A" Commercial-Grade Monitor
1280 x 1024 / 16:9 & 4:3 Available
2 AV (CVBS) Input / 1 AV(CBVS) Output (Loop-through), HDMI, VGA
3D Comb Filter / De-Interlace
2W Speakers
DC 12V
3-Year Warranty











Download VZ-191RCR PDF Specifications Sheet

Download VZ-191RCR PDF Manual
















  Screen Size 19"
  Max Resolution 1280 x 1024 @60Hz
  Pixel Pitch 0.294 mm x 0.294 mm
  Brightness 380cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 4 : 3 / 16 : 9
  Viewing Angle (H/V) 170°/160°
  Display Color 16.7 Million
  Response Time < 10 ms
  Video System NTSC / PAL


  AV (Composite) In / Out (BNC type) 2 / 1
  VGA In 1
  AV Audio In/Out 1
  HDMI In 1


  Built-in Speaker 2 W x 2


  Filter Type 3D Comb filter / De-Interlace
  Multi-Lingual Language English, Spanish, French,
German, Italian


  Outline Dimension 18.97” x 13.89” x 3.26”
  (W x H x D) 482.0 mm x 353.0 mm x 83.0 mm
  Net Weight 12.55 lb ( 5.69 kg )
  Gross Weight 15.6 lb ( 7.07 kg )


  Form Factor 8U Rack Mounting
  Mount Type Tilt-able Rack Mount


  Transmitter - IR Indigator YES
  Power - Electrical Ratings DC 12V, 3 A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 25 W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations CE, FCC(A), RoHS





  * Specifications subject to change without notice
