  • ACT 1  ACT 2  PSU 2  PSU 3  DC-24-320  VZ-PVM-I1W4 PoE Injector
    • Output : 52V DC / 60W
    • Single-port Gigabit PoE Midspan
    • Automatic Detection and Protection of
       non–standard Ethernet terminals
    • Full IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair Compliant
    • Safety : UL/cUL Per IEC 60950-1, GS
    • EMI : FCC Part 15, Class B, EN 55022 Class B (Emissions),
       EN 55024 (Immunity), C-TICK - AN/NZS CISPR 22
Hover to zoom, click to view

Compatible Monitors

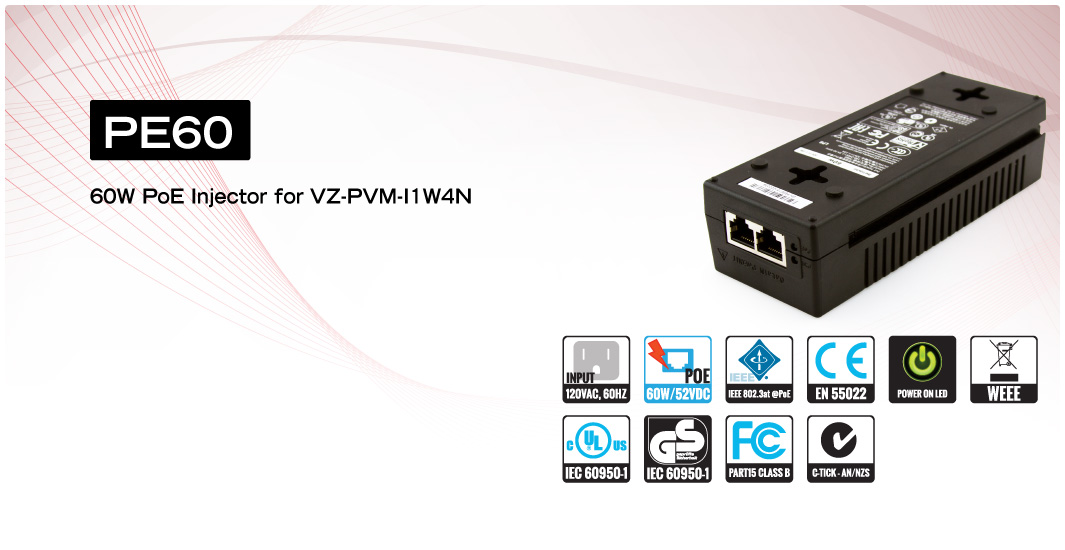

Model Number: PE60
DC 52V / 60W output
AC 100~240V / 50 or 60Hz
Green Power On LED
Single-port gigabit PoE midspan
Full IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair Compliant
Auto-detect of POE IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair equipment
Supports 10/100/1000 Base-T applications
Compatible with IEEE 802.3af devices and pre-standard devices
Long product life, MTBF of 100,000 hours
Safe: low power devices receive only the power they need
Automatic detection and protection of non–standard ethernet terminals
Compact design fits easily in WLAN access point and
IP cameras installations
Compact & Light-weight
Safety : UL/cUL Per IEC 60950-1, GS
EMI : FCC Part 15, CE Class B - EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI, RoHS Compliant













Download PE60 / AC PoE Injector PDF Specifications Sheet
















  Pass Through Data Rates 10/100/1000 Mbps
  No. of Ports 1
  Output Watt 60 W
  Pin Assignment and Polarity 1/2 (+), 3/6 (-) , 4/5 (+), 7/8 (–)
  Input Power Requirements 100 ~ 240V AC, 50/60Hz, 0.8A


  Regulation Safety Standards UL/cUL Per IEC 60950-1, GS
  EMI Standards FCC Part 15 - 47 CFR FCC Part 15, VCCI,
CE Class B, EN 55024 (Immunity), EN 55022 Class B (Emissions), EN61000-2
  Compliance IEEE 802.3af (PoE,), IEEE 802.3at (PoE+),
IEEE 802.3at-4pair (PoE++),
C-TICK - AN/NZS CISPR 22,
RoHS Compliant
  WEEE Compliant


  Power Input 100 to 240 V AC
  Ethernet Shielded RJ-45, EIA 568A and 568B


  Outline Dimension 2.09" x 1.28" x 5.5"
  (Width x Length x Height) 53mm x 32.5mm x 140mm
  Net Weight 0.44 lbs / 0.2 kg


  Construction PC material
  Operating Humidity Maximum 90%, Non-condensing
  Operating Temperature 14°F ~ 104°F / -10°C ~ +45°C (@ 60W)
  Storage Humidity Maximum 95%, Non-condensing
  Storage Temperature -4°F ~ 158°F / -20°C ~ +70°C
  LED Indicators AC Power (Green) / Channel Power (Green)
  Warranty - MTBF (Approx.) 100,000 Hours @ 77°F / 25°C
  Warranty - Parts/ Labor 2 Year / 2 Year





  * Specifications subject to change without notice
