    • 10” Mega Pixel IP Public View Monitor
    • Commercial grade LED
    • Built in Pinhole 2.1 Mega Pixel Camera
    • Blinking Message "Recording"
    • Programmable Timed Switching Capabilities
       between camera and media player
    • Powered by PoE
Hover to zoom, click to view



Compatible PoE Injector & Mounts

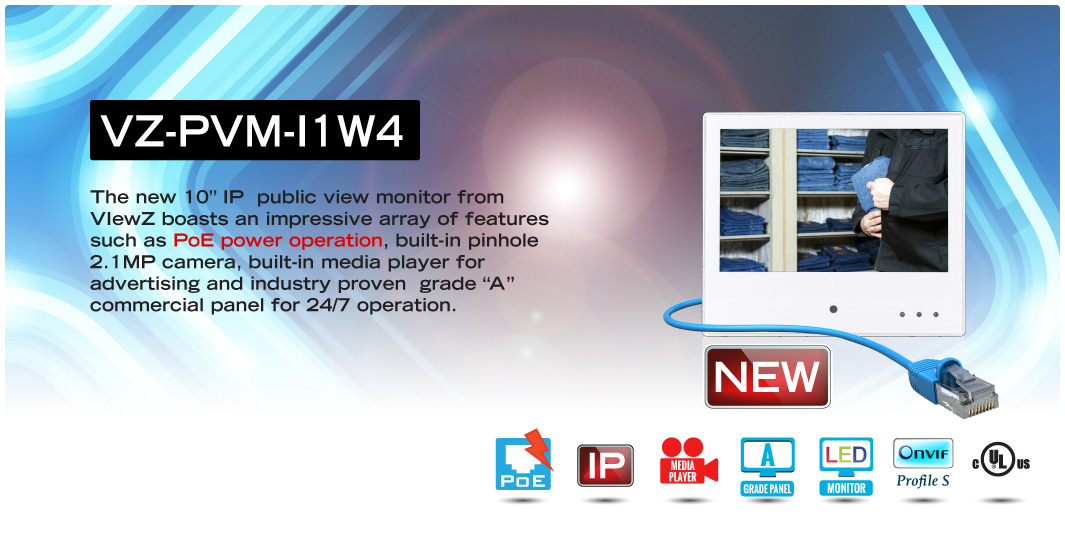

Model Number: VZ-PVM-I1W4

Enhanced Public View Monitor over IP

10" Flat Panel Widescreen LED "A" Commercial-Grade Monitor
Powered by PoE
HD 1280x800 / 16:9
1080p Pinhole 2.1 Mega Pixel HD D-WDR Camera
Motion Sensor and Timed Source Switching between IP Camera and Media Player
Flexible Alert Text / Multi-Color Blinking LED
Camera and Monitor OSD / Remote Control
PIP / PBP
Auto Source Switching
Auto Power/Source Recovery
VESA Wall Mount 75x75
PoE 30W
MTBF: 50,000 hrs
3-Year Warranty














Model Features

Family

 Series Size Color Voltage
10", White, PoE 30W VZ-PVM- I 1 W 4


Series: Z (HD PVM) , I (IP PVM)

Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)

Color: B (Black) , W (White)
Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC110V / DC24V), 4 (PoE)











Download VZ IP-PVM Onvif Compliant VMS List

Download VZ-PVM-I1W4 PDF Specifications Sheet
















  Screen Size 10"
  Max Resolution 1280 x 800 @60Hz
  Pixel Pitch 0.1695mm x 0.1695mm
  Brightness 300cd/m²(Typical )
  Contrast Ratio 1300:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 170°/170°
  Display Color 262K (RGB-6bit)
  Response Time < 25ms


  RJ-45 for iP Camera & Power 1
  USB / SD Card In (Media Player) 1 / 1


  Multi Display Function PIP / PBP
  Blinking Message "Recording" Yes
  Timed Switching Capabilities Yes
  between IP Cam & Media Player
  PoE Support Yes
  Keylock Yes
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Ethernet Interface 10/100Base-T
  Web Client Protocol TCP / IP
  Supported Protocol IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, etc, ONVIF, PSIA support


  Outline Dimension 9.88” x 8.42” x 1.37”
  (W x H x D) 261 x 214 x 34.8 mm
  Net Weight / Gross Weight 4.35 lbs ( 1.97 kg ) /6.7 lbs ( 3.03 kg )


  Vesa 75mm x 75mm / M4 x 12 Screws


  Sensor Type 1/3" Panasonic 2.1M Progressive C-MOS
  Lens Megapixel Pinhole Lens
  Active Pixels 1920(H) x 1080p(V) 30fps
  Min Illumination 0.5 Lux@50IRE, F1.2
  Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog
  D/N, DWDR, AGC, AWB, IR SMART
  Video Compression H.264 CBR, VBR support
  Video Out 1ch RJ-45 output
  Motion Detection Support
  Support Protocol IHTTP, TCP/UDP/IP, ARP, ICMP,
  RTP/RTSP, Multicast, Telnet, ftp,
  PPPoE, SMTP(e-mail), DHCP, NTP,
  uPNP, ONVIF, PSIA
  Ethernet Port 10 / 100 Base-T
  Webclient Connection TCP / IP Protocol
  Dynamic IP Dedicated dynamic IP service using
  www.ipcctvdns.com

  Support Type Photo, Music, Video
  External Storage Support SD/SDHC CARD | USB 2.0 HOST
  Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV,
  MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT,
  MPEG, TS, TP, M2TS, WMV, H.264, H.263,
  WMV9, VC-1, MPEG1/2/4
  Video Resolution 1080P @60Hz
  Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE,
  AC-3, DTS, ATRA, WAV, PCM
  Image File Format JPEG, TIF, PNG, BMP
  VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings P.o.E.
  Power - Consumption 30W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02





  * Specifications subject to change without notice
