  • ACT 1  ACT 2  PSU 2  PSU 3  DC-24-320  VZ-PVM-I1W4 PoE Injector
    • Output : 12V DC / 4.16A
    • Input : 100~ 240VAC / 50~60Hz / 1.2A
    • Fully testified for 10.1" RTC, 17" & 19" RTN, 21.5" LED-SN
      19", 22" & 24" CME / CMP / CMX
    • Safe & Reliable
    • Complies with Environmental Protection Requirements
    • Long Product Life, MTBF of 50,000 hours
Hover to zoom, click to view

Compatible Monitors

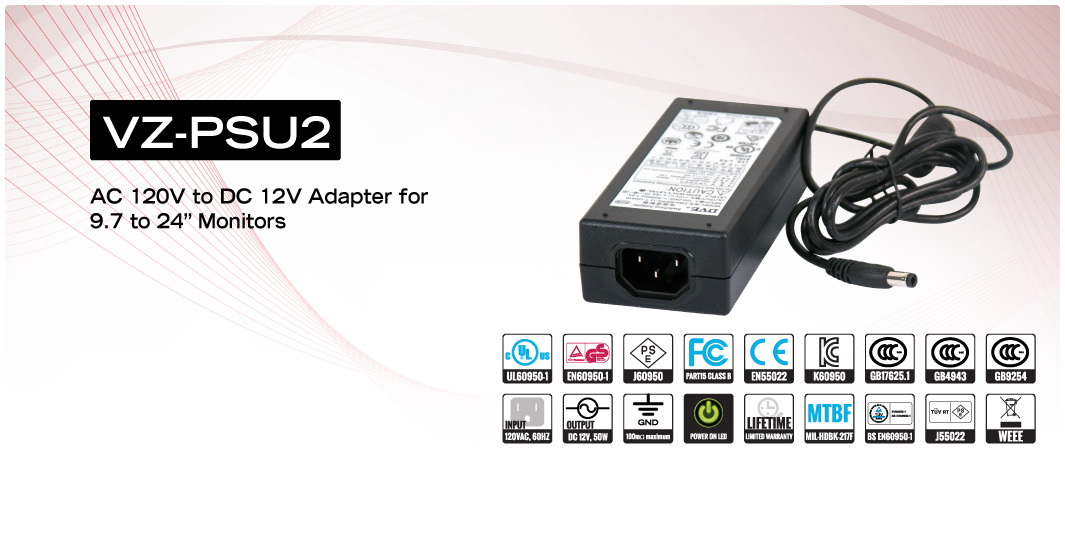

Model Number: VZ-PSU2
Fully testified for 101 RTC, 17" & 19" RTN, 19" & 22" & 24" CMP / CME / CMX, 21.5" LED-S
DC 12V / 4.16A output
AC 100~240V / 50 or 60Hz / 1.2A input
Green Power On LED
Energy Efficiency Rating: V
Compact & Light-Weight
Safe & Reliable
Complies with International Safety Standards & Environmental
Protection Requirements
Over voltage / Overload / Over current / Short Circuit Protection
Complies with Environmental Protection Requirements
Wide Voltage Compatibility
Long Product Life, MTBF of 50,000 hours
EMC meets IEC55013/55020/55022/55024 / 61000 international standard
Safety : UL, KCC, CCC, TUV/GS, PSE, RCM
EMI : CE, FCC/UL, CCC, PSE













Download VZ-PSU2 PDF Specifications Sheet
















  Input Voltage 100 ~ 240V AC, 50/60Hz, 1.2 A
  Output Voltage 12V DC
  Output Watt 49.92 W
  Output Current 4.16 A

  Regulation Safety Standards UL/CUL(UL60950-1),TUV-GS(EN60950-1),
  PSE (J60950), T-LICENSE(BS EN60950-1),
  CCC(GB4943) ,KC-MARK(K60950)
  EMI Standards FCC(PART15 CLASS B), CE(EN55022),
  GB9254,GB17625.1, PSE(J55022)


  Input Plug Type IEC320 C14 AC PIN
  Output Cord WIRE: 18AWG /1C+SH 1185, 1500mm
  PLUG: JACK PLUG 5.5*2.5*10.5mm


  Outline Dimension 2.24" x 4.81" x 1.34"
  (Width x Length x Height) 57mm x 122.3mm x 34.1mm
  Net Weight 0.58 lbs / 0.265kg


  Short-Circuit Protection The power supply shall not be damaged by shock between DC output and DC ground
  Over-Voltage Protection 20V DC maximum auto-recovery function
  Over-Current Protection 8A maximum with auto-recovery function


  Construction PC, ABS, or equivalent
  Operating Humidity 20% ~ 85% RH. Non-condensing
  Storage Humidity 5% ~ 95% RH. Non-condensing
  Operating Temperature 32°F ~ 104°F / 0°C ~ +40°C (10-90%R.H)
  Storage Temperature -4°F ~ 140°F / -20°C ~ +60°C (10-90%R.H)
  Cable UL AWM Style 1185 - 18 AWG/1C + SH
  Cooling Cooling shall be with natural convection cooling





  * Specifications subject to change without notice
