  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 19” LED CCTV Monitor
    • 1280 x 1024 Resolution
    • 2 BNC (Composite) Inputs / 1 BNC Output (Loop-through)
    • HDMI, VGA, Audio In/Out
    • Auto Source & Power Recovery
    • 600 TV Line, 3D Comb-filter, De-Interlace, Built-in Speakers
    • 3-Year Warranty
Hover to zoom, click to view



Compatible Mounts

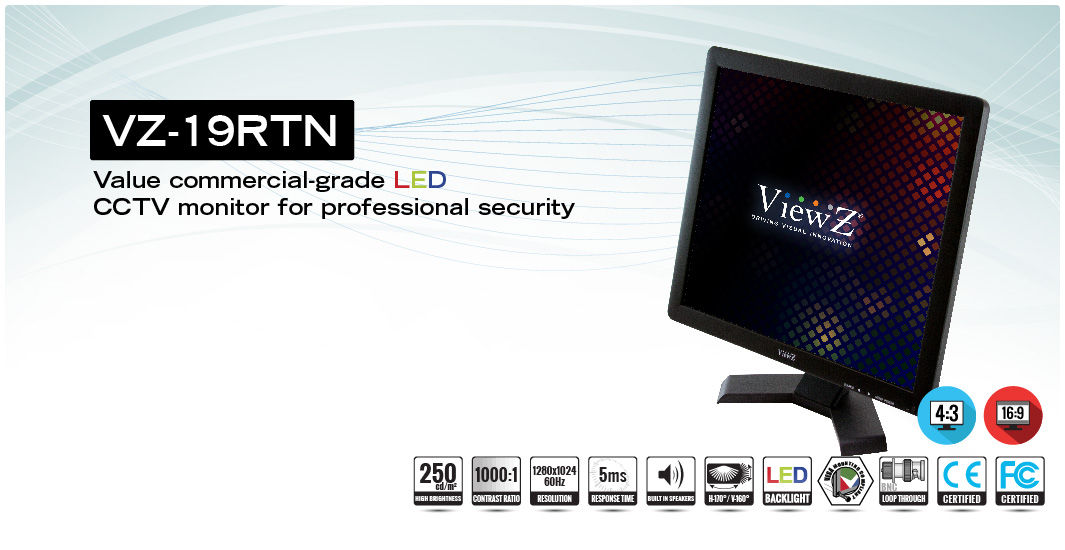

Model Number: VZ-19RTN

19" Black Flat Panel LED "A" Commercial-Grade Monitor
1280X1024 / 4:3 (16:9) Available
2 BNC(Composite) Inputs / 1 BNC (Composite) Output (Loop-through)
HDMI / VGA / Audio In/Out
Analog Video Resolution (Max) - 600 TV Line
3D Comb-Filter / De-Interlace
OSD / Remote Control
Auto Source & Power Recovery
2.5W Stereo Speaker x 2
3-Year Warranty













Download VZ-19RTN PDF Specifications Sheet

Download VZ-19RTN PDF Manual
















  Screen Size 19"
  Max Resolution 1280 x 1024 @60Hz
  Pixel Pitch 0.294mm x 0.294mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 4 : 3 (16:9 Available)
  Viewing Angle (H/V) 170°/160°
  Display Color 16.7 Million
  Response Time < 5ms
  Video System NTSC / PAL


  AV (Composite) In / Out 2 / 1
  RGB In (15pin D-Sub) 1
  HDMI In 1
  Audio In / Out 1 / 1


  Built-in Speaker 2.5 W x 2


  Filter Type 3D Comb-Filter / De-Interlace
  Multi-Lingual Language English, Deutsch,, Spanish,
French, Italian


  Outline Dimension 16.77” x 16.09” x 5.39”
  (W x H x D) (426.10 mm x 408.9 mm x 136.97 mm)
  Net Weight 6.17 lbs ( 2.8kg )
  Gross Weight 7.27 lbs ( 3.3kg )


  Vesa 75mm x 75mm / M4 x L10 Screws


  Power - Electrical Ratings DC 12V, 3A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 23W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 - 122°F / -10°C - 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMK02, VZ-CMKiT-01, VZ-CMKiT-02
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
