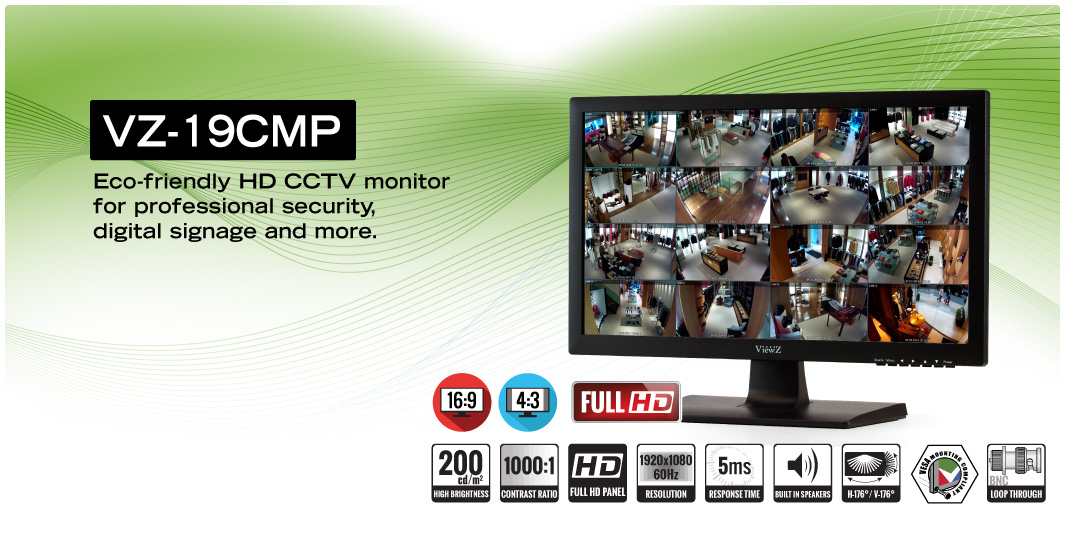

Model Number: VZ-19CMP

19.5" Black Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD (1920x1080) / 16:9
1 AV(CVBS) Inputs / 1 AV (CVBS) Output (Loop-through)
Analog Video Resolution (Max) - 600 TV Line
3D Comb-Filter / De-Interlace
HDMI / VGA / Audio In/Out
Auto Source & Power Recovery
3W Speaker x 2
DC 12V / Power Consumption ≤ 25 W
3-Year Warranty













Download VZ-19CMP PDF Specifications Sheet

Download VZ-19CMP PDF Manual
















  Screen Size 19.5"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.2265 mm x 0.221 mm
  Brightness 200cd/m²(Typical)
  Contrast Ratio 3000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 176°/176°
  Display Color 16.7 Million
  Response Time < 25ms


  AV (CVBS) In / Out 1 / 1
  RGB In (15pin D-Sub) 1
  HDMI In 1
  Audio In/Out 1 / 1


  Built-in Speaker 3 W x 2


  Filter Type 3D Comb-filter / De-Interlace
  Auto Power / Source Recovery Support
  Multi-Lingual Language English, Spanish, French, Korean
  German, Italian

  Outline Dimension 18.42” x 13.38” x 1.92”
  (W x H x D) 467.9 mm x 339.9 mm x 49.0 mm
  Net Weight 7.27 lb / 3.3 kg
  Gross Weight 8.59 lb / 3.9 kg


  Vesa 100mm x 100mm / M4 x L8 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC12V, 3.0A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 24W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01





  * Specifications subject to change without notice
