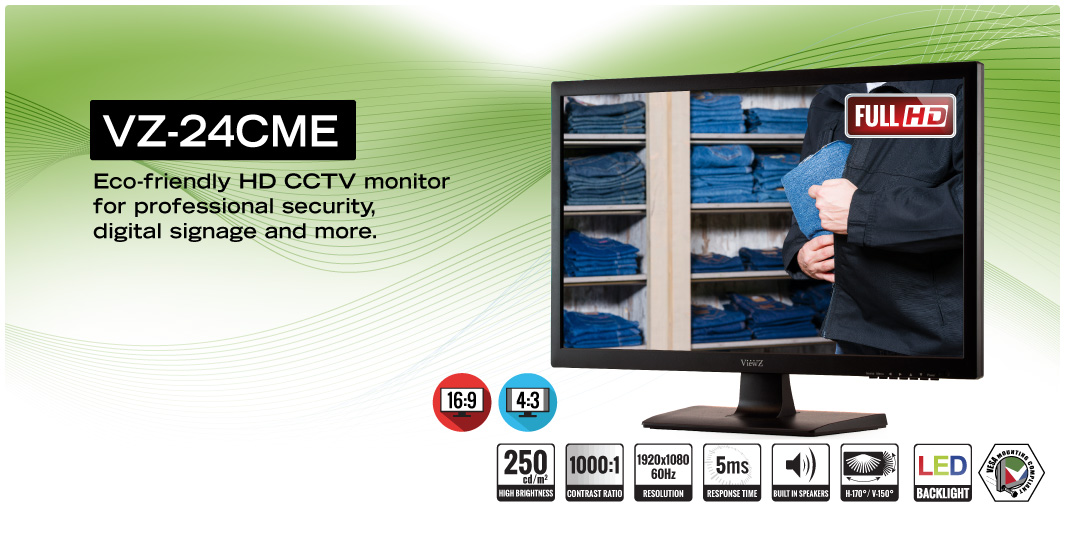

Model Number: VZ-24CME

23.6" Black Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD (1920x1080) / 16:9
HDMI / DVI / VGA / Audio In/Out
OSD (multiple languages)
2W Speaker x 2
DC 12V / Power Consumption ≤ 28 W
3-Year Warranty













Download VZ-24 CME PDF Specifications Sheet

Download VZ-24 CME PDF Manual
















  Screen Size 23.6"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.215 mm x 0.215 mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178° / 178°
  Display Color 16.7 Million
  Response Time < 14ms


  RGB In (15pin D-Sub) 1
  DVI In 1
  HDMI In 1
  Audio In/Out 1/1


  Built-in Speaker 2 W x 2


  Multi-Lingual Language English, Spanish, French, Korean
  German, Italian

  Outline Dimension 21.9" x 15.68" x 1.94"
  (W x H x D) 555.9 mm x 398.47 mm x 49.5 mm
  Net Weight 9.92 lb / 4.5 kg
  Gross Weight 10.36 lb / 4.7 kg


  Vesa 100mm x 100mm / M4 x L8 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC12V, 3.0A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 28W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02





  * Specifications subject to change without notice
