Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

Hover to zoom, click to view



Compatible Mounts

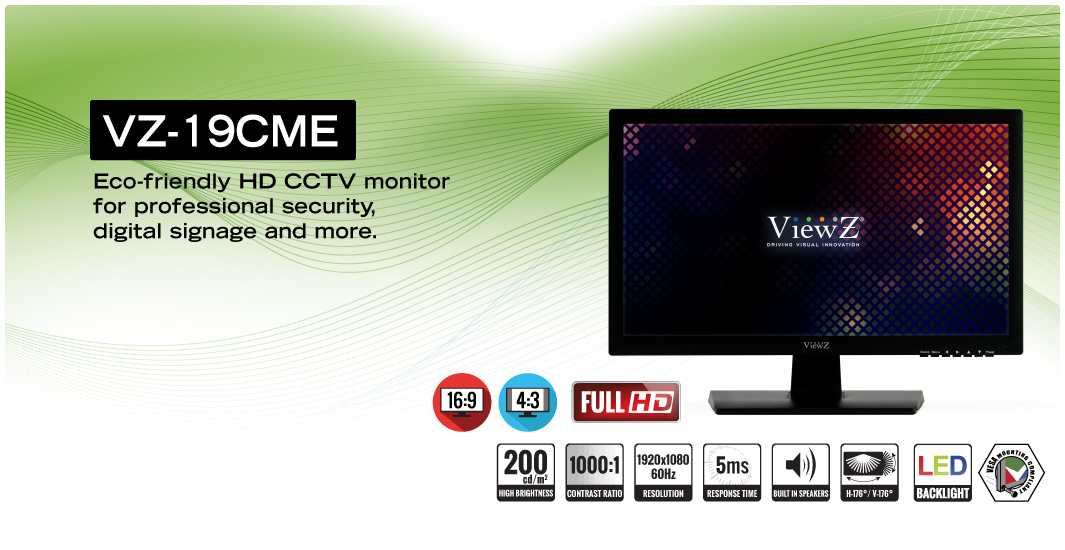

Model Number: VZ-19CME

19.5" Black Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD (1920 x 1080) / 16:9
HDMI / DVI / VGA / Audio In/Out
OSD (multiple languages)
2W Speaker x 2
DC 12V / Power Consumption ≤ 24 W
3-Year Warranty













Download VZ-19CME PDF Specifications Sheet

Download VZ-19CME PDF Manual
















  Screen Size 19.5"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.2265 mm x 0.221 mm
  Brightness 200cd/m²(Typical)
  Contrast Ratio 3000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 176°/176°
  Display Color 16.7 Million
  Response Time < 25ms


  RGB In (15pin D-Sub) 1
  DVI In 1
  HDMI In 1
  Audio In/Out 1/1


  Built-in Speaker 2 W x 2


  Multi-Lingual Language English, Deutsch, Spanish, French, Italian

  Outline Dimension 18.42” x 13.38” x 1.92”
  (W x H x D) 467.9 mm x 339.9 mm x 49.0 mm
  Net Weight 7.05 lb / 3.2 kg
  Gross Weight 8.37 lb / 3.8 kg


  Vesa 100mm x 100mm / M4 x L8 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC12V, 3.0A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 24W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CM06W/B





  * Specifications subject to change without notice
