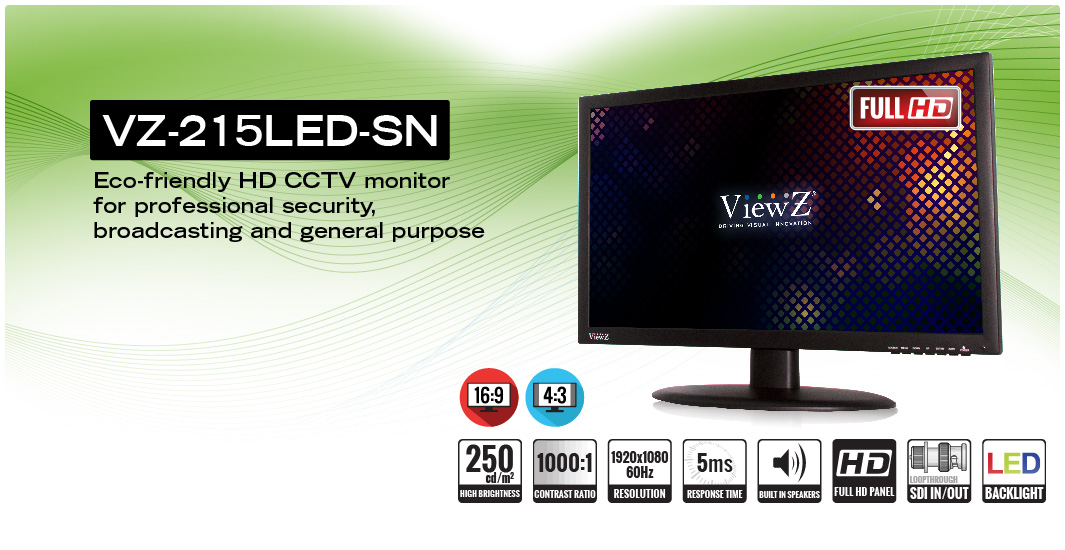

Model Number: VZ-215LED-SN

21.5" Black Flat Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD 1920x1080 / 16:9
HD-SDI In / Out (BNC, 75Ω, 1ch input / 1ch loop-through out)
HDMI / DVI / VGA / PGM(HDMI) / PC Stereo
Color Calibration Ready
Linke Marker, Safety Area, SDI Sound Channel Level Meter
Auto Power and Source Recovery / OSD
2W Speaker x 2
DC 12V / 24W
3-Year Warranty













Download VZ-215LED-SN PDF Specifications Sheet

Download VZ-215LED-SN PDF Manual
















  Screen Size 21.5"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.24825 mm x 0.24825 mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 170°/160°
  Display Color 16.7 Million
  Response Time < 5ms
  Video System NTSC / PAL


  Component (BNC) In 3
  3G-SDI In / Out (BNC, 1 input / loop-through out) 1 / 1
  RGB In (15pin D-Sub) 1
  DVI In 1
  HDMI In 1
  RJ45 In 1
  PGM(HDMI) In 1
  PC Stereo In 1


  Built-in Speaker 2 W x 2


  Color Temp. 3200K, 6500K, 9300K and User settings
  Line Marker Option 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1,
2.35:1, 1.85:1 & 4:3
  Safety Area Option Off, 80%, 85%, 88%, 90%, 93% and 100%
  RGB Gain -128 to 128
  RGB Bias -50 to 50
  Language English


  Outline Dimension 20.25 “ x 14.56 “ x 1.77”
  (W x H x D) 514.5 mm x 370 mm x 44.958 mm
  Net Weight 8.4 lbs ( 3.8 kg )
  Gross Weight 13.58 lbs ( 6.16 kg )


  Vesa 100mm x 100mm / M4 x 10 Screws


  Power - Electrical Ratings DC12V (AC100 ~ 240V[50/60Hz])
  Power - Consumption Approx. 24W
  Warranty - Parts / Labor 2 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VVZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
