  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CMP/CME  Hybrid CMX Monitor
    • 1920 x 1080 Resolution
    • Hybrid AV (AHD / TVI / CVI) Input / Output (Loop-through)
    • AV(CVBS) Input / Output (Loop-through)
    • 16:9 / 4:3 Ratio Available
    • HDMI, VGA, PC Audio In/ AV Audio In
    • 600 TV Line, 3D Comb-Filter, De-Iinterlace, Built-in Speakers
    • Auto Source & Power Recovery
    • 3-Year Warranty
Hover to zoom, click to view



Compatible Mounts





Model Number: VZ-24CMX

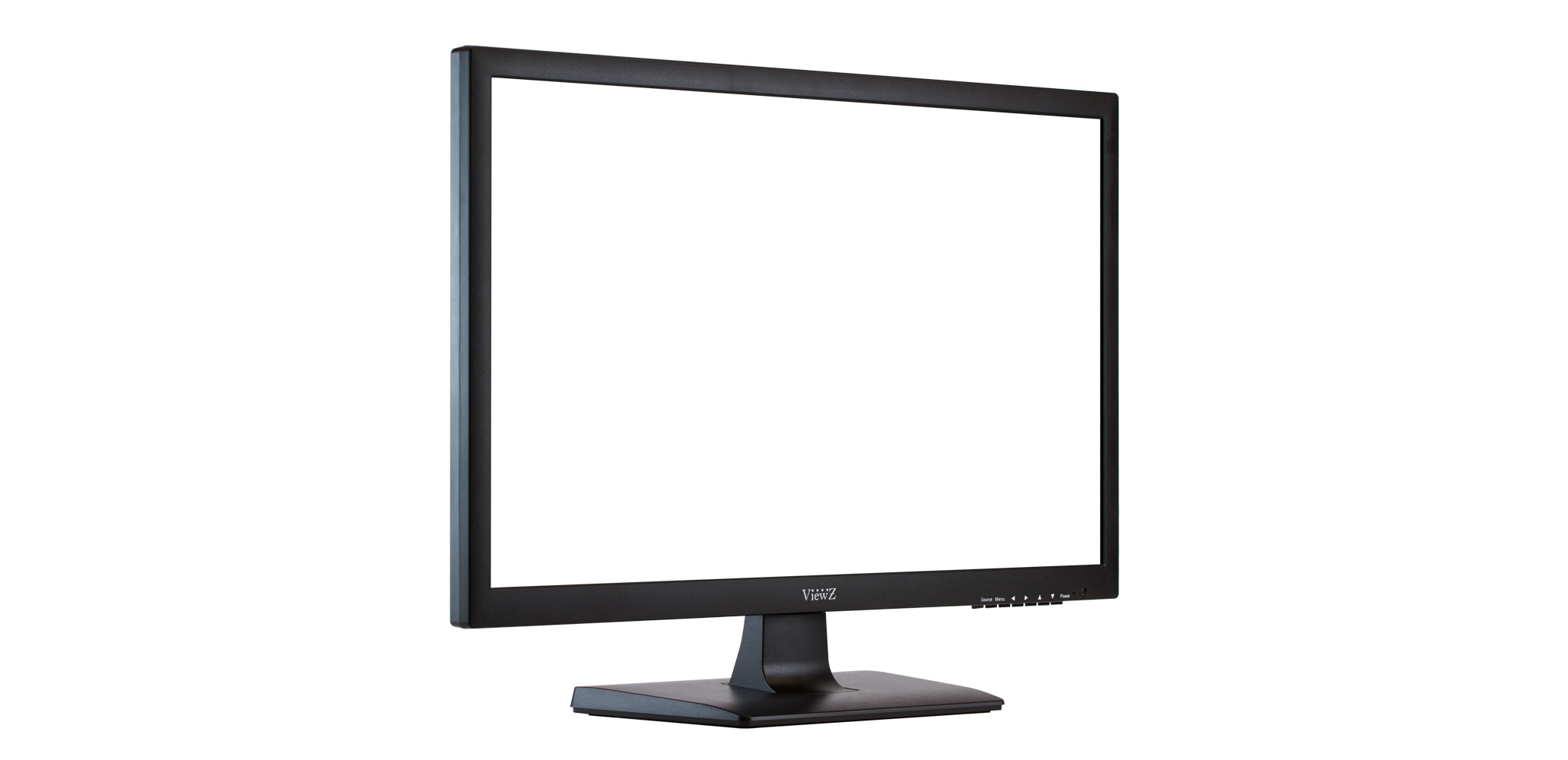

24" Black Panel Widescreen LED "A" Commercial-Grade Monitor
HD (1920x1080) / 16:9
Hybrid 1 AV(AHD/TVI/CVI) Input / 1 AV (AHD/TVI/CVI) Output (Loop-through)
1 AV(CVBS) Input / 1 AV (CVBS) Output (Loop-through)
3D Comb-Filter / De-Interlace
HDMI / VGA / PC Audio In/ AV Audio In
Auto Source & Power Recovery
3W Speaker x 2
DC 12V / Power Consumption ≤ 28 W
3-Year Warranty













Download VZ-24CMX PDF Specifications Sheet

Download VZ-24CMX PDF Manual
















  Screen Size 24"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.215 mm x 0.215 mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 16.7 Million
  Response Time < 14ms


  AV (AHD/TVI/CVI) In / Out 1 / 1
  AV (CVBS) In / Out 1 / 1
  RGB In (15pin D-Sub) 1
  HDMI In 1
  AV Audio In/ PC Audio In 1 / 1


  Built-in Speaker 3 W x 2


  Filter Type 3D Comb-filter / De-Interlace
  Auto Power / Source Recovery Support
  Multi-Lingual Language English, Spanish, French, Korean
  German, Italian

  Outline Dimension 21.88” x 15.68” x 1.94”
  (W x H x D) 555.90 mm x 398.47 mm x 49.5 mm
  Net Weight 11.02 lb / 5.0 kg
  Gross Weight 13.66 lb / 6.2 kg


  Vesa 100mm x 100mm / M4 x L8 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC12V, 3.0A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 28W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01





  * Specifications subject to change without notice
