Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CMP/CME  Hybrid CMX Monitor
    • Full HD 1080p Resolution
    • 1 AV(CVBS) Inputs / Output (Loop-through)
    • 16:9 / 4:3 Ratio Available
    • HDMI, VGA, AV/PC Audio In
    • 3D Comb-Filter, De-Iinterlace, Built-in Speakers
    • Auto Source & Power Recovery
    • 3-Year Warranty



Compatible Mounts

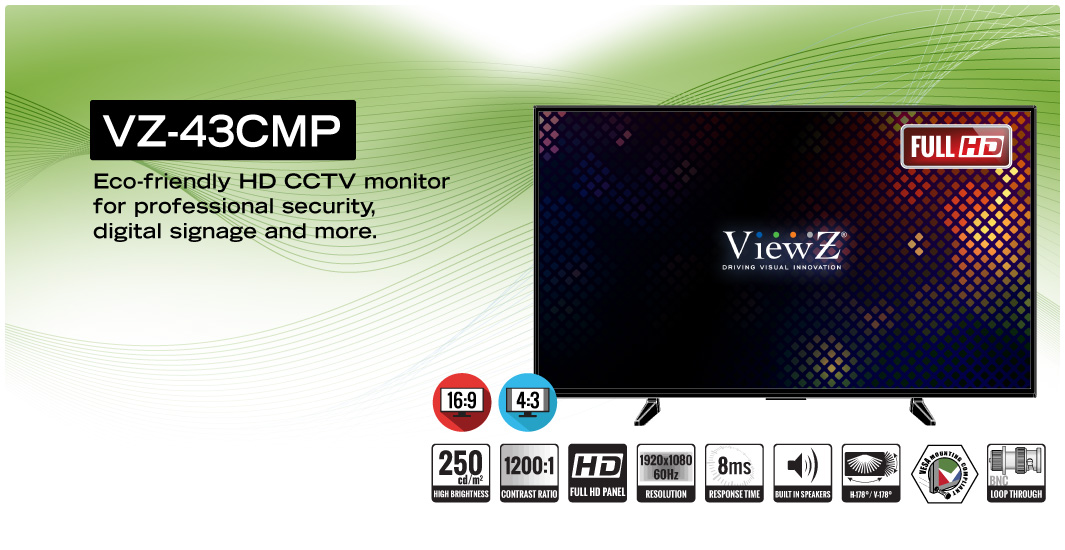

Model Number: VZ-43CMP

43" Black Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD (1920x1080) / 16:9
1 AV (CVBS) Inputs / Output (Loop-through)
3D Comb-Filter / De-Interlace
HDMI / VGA / AV&PC Audio In
Auto Source & Power Recovery
5W Speaker x 2
AC100 ~ 240V(50/60Hz)
3-Year Warranty













Download VZ-43 CMP PDF Specifications Sheet
















  Screen Size 43"
  Max Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.4902 mm x 0.4902 mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1200:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 16.7 Million
  Response Time < 8ms


  AV (CVBS) In / Out 1 / 1
  RGB In (15pin D-Sub) 1
  HDMI In 1
  PC Audio In / AV Audio In 1 / 1


  Built-in Speaker 5 W x 2


  Filter Type 3D Comb-filter / De-Interlace
  Auto Power / Source Recovery Support
  Multi-Lingual Language English, Deutsch, French,
  Spanish, Italian

  Outline Dimension 39.10” x 24.8” x 7.08”
  (W x H x D) 993.3mm x 630.0mm x 180mm
  Net Weight TBD
  Gross Weight TBD


  Vesa 300mm x 300mm / 4 x (M8x L8) Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption TBD
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Compatible Mounts - Wall VZ-AM02, VZ-WM50
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02





  * Specifications subject to change without notice
