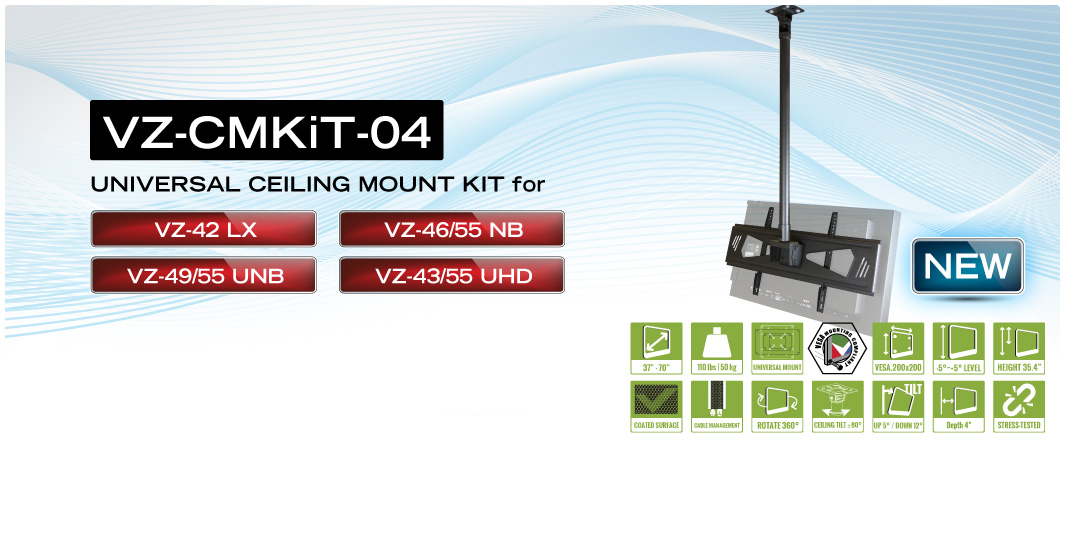

Model Number: VZ-CMKiT-04 |
|
Mounting head for 37" to 70" CCTV & Vdeo Wall Monitors | |
Load capacity is 110 lbs / 50 kg | |
5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle | |
± 5° Level Adjustment | |
VESA Standard (200x200) and Universal Mounting Support | |
Easy Cable Management | |
2 units of VZ-CM-P36 poles can be connected by using VZ-CM-C Pole connector. * Connecting more than 2 poles is not recommended. |
Tilt Ceiling Plate : T (110 lbs / 50kg - load capacity) |
|
Connector : C (Connect P15 - 2units or P36 - 2 units) |
|
Column (Pole) : P15 (8.7" ~ 14.55") , P36 (35.43") |
|
Mounting Pattern: V1 (VESA, 23"~ 42" monitor) , V3 (Universal, 37" ~ 70" monitor) |
|
Ceiling Mount Kit: Kit-01 (Ceiling Mount + VESA Mounting Plate) , KiT-02 (Ceiling Mount + Pole + VESA Mounting Plate), KiT-04 (Ceiling Mount + Pole + Universal Mounting Plate) |
Download VZ-CMKiT-04 PDF Specifications Sheet
Download VZ-CMKiT-04 PDF Installation Manual
Display Range | 37” - 70” |
NET Weight | 11.06 lbs / 5.02 kg |
Weight Capacity | 110 lbs / 50 kg |
Tilt | +5° ~ -12° |
Level | +5° ~ -5° |
Rotation | 360° |
Mounting Pattern Type | Range |
Mounting Patterns (Universal) | 200 x 200 (Min) ~ 800 x 400 (Max) mm |
Installation Range | 35.43" / 900 mm |
VZ-CM-V3 Size | 904mm x 440mm x 103mm |
( Width x Height x Depth ) | 35.59" x 17.32" x 4.05" |
VZ-CM-V3 Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1-1/2" x 3" |
VZ-CM-P36 Pole ( R x Length ) | Ø 48 x 900mm / Ø 1.88 x 35.43" |
VZ-CM-P36 Thread ( R x Length ) | Ø 38.1 mm / Ø 1-1/2" |
VZ-CM-T Plate | 150mm x 120mm x 53mm |
( Wide x Height x Length ) | 5.9" x 4.72" x 2.08" |
VZ-CM-T Pole (R x Length) | Ø 38.1 x 76mm / Ø 1.5 x 3" |
VZ-CM-T Profile | 130.5 mm / 5.13" |
* Specifications subject to change without notice |
