Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 55” LED ULTRA HD Panel
    • Supports 4K (3840X2160) Resolution
    • Mode 1: Displays 4K (3840X2160) Resolution
    • Mode 2: PBP, PIP & Quad (Each 1080p) PIP
    • MVA Technology & V-by-One® INTERFACE
    • Auto Source / Power Recovery
    • Wide Viewing Angle (IPS Panel)
    • 1.07G Color & QFHD 24/30 or 50/60 Hz
Hover to zoom, click to view


Compatible Mounts

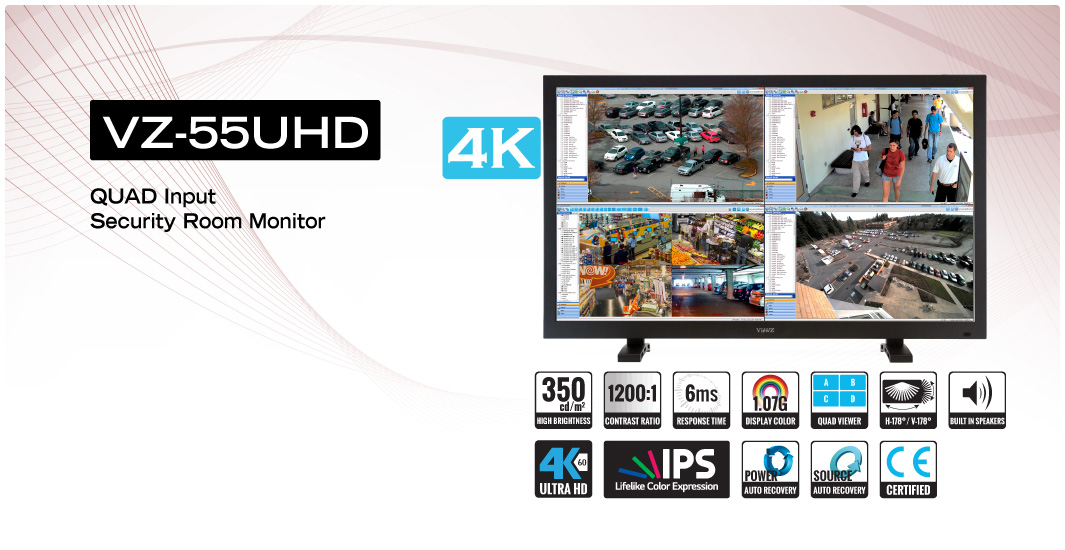

Model Number: VZ-55UHD

55" LED UHD Panel
4K Resolution - 3840x2160 / 16:9
QFHD 24/30 Hz or 50/60 Hz
Wide Viewing Angle (IPS Panel)
Auto Source / Power Recovery
Supported Display Port (1.2), HDMI (2.0 & 1.4), DVI-D & VGA
1200:1 Contrast Ratio













Download VZ-55UHD PDF Specifications Sheet

Download VZ-55UHD PDF Manual


















  Screen Size 55"
  Max Resolution 3840x2160 @60Hz
  Active Display Area (H/V) 0.315 mm x 0.315 mm
  Brightness 350cd/m²(Typical)
  Contrast Ratio 1200:1
  Aspect Ratio 16 : 9 (1.78:1)
  Viewing Angle (H/V) 178°/178°
  Display Color 1.07 G (8-bit + FRC)
  Response Time < 6ms


  Display Port In 1
  HDMI (2.0) In 1
  HDMI (1.4) In 1
  DVI-D 1
  VGA In (15pin D-Sub) 1
  Audio In 1


  Multi Display Function PIP / Dual / Quad
  Image Retention Yes


  Outline Dimension 50.18” x 29.72” x 3.91”
  (W x H x D) 1274.6 mm x 754.9mm x 99.5 mm
  Net / Gross Weight 67.90 lbs ( 30.80 kg ) / 83.44 lbs ( 37.85 kg )


  Universal 300mm x 300mm
  4 x ( M6 ) screws


  Display Port HDMI 2.0 HDMI 1.4 DVI-D VGA
Display Port X Ο Ο Ο Ο
HDMI 2.0 Ο X Ο Ο Ο
HDMI 1.4 Ο Ο X Ο Ο
DVI-D Ο Ο Ο X Ο
VGA Ο Ο Ο Ο X

  Power - Electrical Ratings AC100~240V (50/60Hz)
  Power - Consumption 150W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0°C ~ 40°C
  Operating Humidity 20~80% RH
  Compatible Mounts - Wall VZ-AM03, VZ-WM71, VZ-XMS
  Compatible Mounts - Ceiling VZ-CMKiT-04





  * Specifications subject to change without notice
