Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

Scroll to learn more
Hover to zoom, click to view

Compatible Monitors

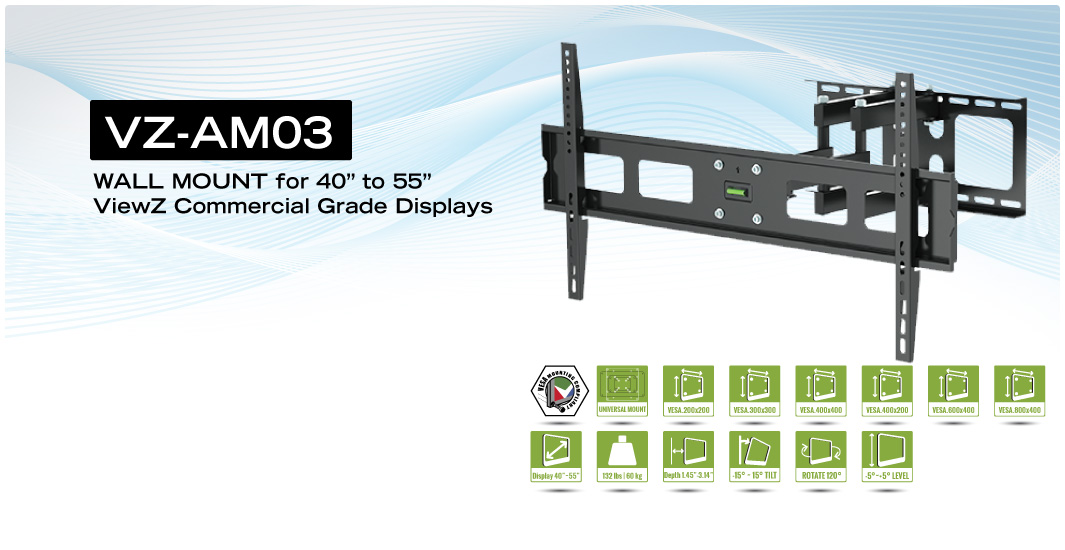

Model Number: VZ-AM03

40" ~ 46" Swing Out Double Articulating Wall Mount
Universal adapter plate fits patterns up to 826x404mm
Black
3-Year Warranty











Download VZ-AM03 PDF Specifcation

Download VZ-AM03 PDF Manual













  Display Range 40" ~ 55"
  Mounting Patterns Type VESA, Universal
  VESA Mounting Patterns 200 x 200 (Min) ~ 800 x 400 (Max) mm
  Extension 4.92" ~ 20.27” / 125 mm ~ 515 mm
  Max Weight Capacity 132 lbs / 60 Kg
  Tilting Angle -15°~ 15°
  Rotation 120°
  Level Adjustment -5°~ 5°

  Net Weight 22 lbs / 9.97 kg
  Dimensions Width x Height x Depth - inch
  19.25 x 7.43 x 4.92
  Width x Height x Depth - mm
  858 x 440 x 125
  DIM Sizes Width x Height - inch
  1.96 ~ 32.51 x 2.92~ 15.9
  Width x Height - mm
  50~826 x 75~404




  * Specifications subject to change without notice
