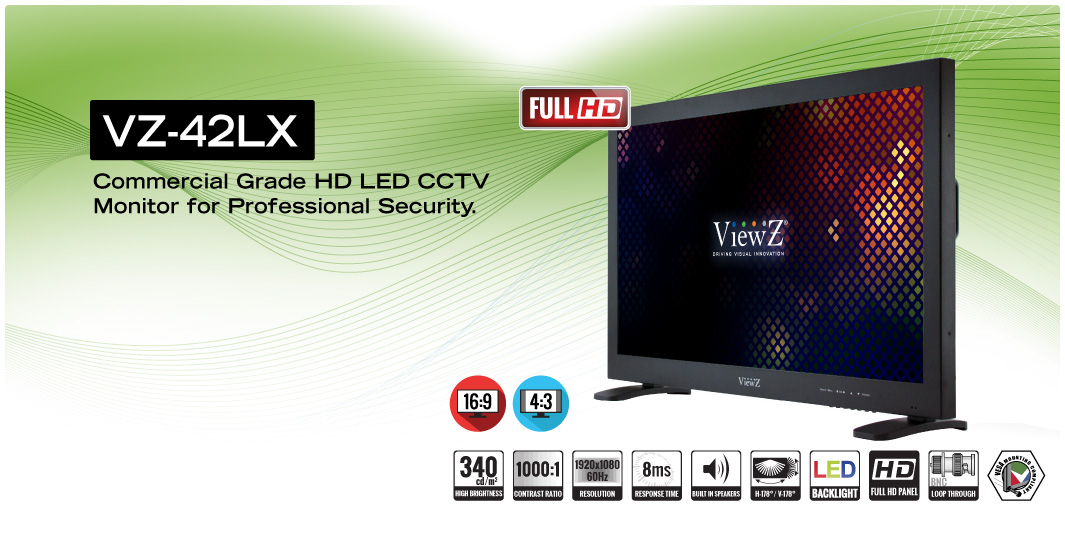

Model Number: VZ-42LX |
|
Black All-Metal Flat Housing |
|
Commerical A-Grade Panels |
|
Full HD 1920x1080 / Brightness 300cm/m² | |
2 Looping BNC(NTSC/PAL) / 3 BNC / 2 HDMI / DVI / VGA / Component(YPbPr) / AV(Composite) Sound L/R (RCA Type) Inputs | |
3D Comb-Filter / De-Interlace | |
OSD / Remote Control | |
PIP / PBP | |
5W Speaker x 2 | |
Auto Source & Power Recovery | |
100-240V~, 50/60Hz (Auto Switching) | |
3-Year Warranty |
Download VZ-42LX PDF Specifications Sheet
Screen Size | 42" |
Max Resolution | 1920 x 1080 @60Hz |
Pixel Pitch | 0.4901mm x 0.4902mm |
Brightness | 300cd/m²(Typical) |
Contrast Ratio | 1000:1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° (CR > 10) |
Display Color | 16.7 Million |
Response Time | < 8ms |
Video System | NTSC / PAL |
AV (Composite) In / Out | 5 / 2 |
RGB In (15pin D-Sub) | 1 |
Component (Y, Pb, Pr) In | 1 |
DVI In | 1 |
HDMI In | 1 |
AV (Composite) Sound L/R (RCA Type) | 1 / 1 |
YPbPr Sound L/R (RCA Type) | 1 / 1 |
Built-in Speaker | 5 W x 2 |
Multi Display Function | PIP / PBP |
Filter Type | 3D Comb filter / De-Interlace |
Image Retention | Yes |
Multi-Lingual Language | English, Spanish, French, Russian, Portuguese |
Outline Dimension (W x H x D) | 39.10” x 24.78” x 7.08” |
993.9mm x 629.5mm x 180mm | |
Net Weight / Gross Weight | 35.54 lbs ( 15.67 kg ) / 43.05 lbs ( 19.53 kg ) |
Vesa | 300mm x 300mm |
4 x ( M8 x L8 ) screws | |
Transmitter - IR Remote Control | Yes |
Power - Electrical Ratings | AC100 ~ 240V(50/60Hz) |
Power - Consumption | 70W |
Warranty - Parts / Labor | 3 Year / 3 Year |
Operating Temperature | 14 - 122°F / -10°C - 50°C |
Compatible Mounts - Wall | VZ-WM71, VZ-AM03 |
Compatible Mounts - Ceiling | VZ-CMKiT-04, VZ-CMK04 |
* Specifications subject to change without notice |
