  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 24” LED CCTV Monitor
    • HD 1080p Resolution
    • Digital & Analog Inputs - BNC, YPbPr, VGA, HDMI and DVI
    • 3D Comb-Filter, De-Interlace, Built-in Speakers
    • Image Rotation Feature Prevents “Pixel Burn-In"
    • Auto Source & Power Recovery
    • 3-Year Warranty
Hover to zoom, click to view



Compatible Mounts

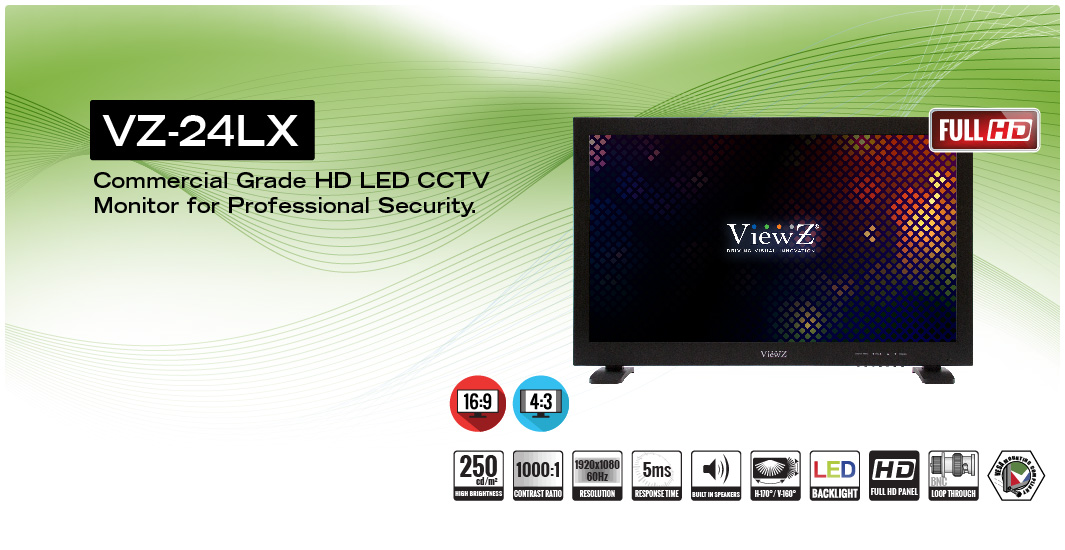

Model Number: VZ-24LX

Black All-Metal Flat Housing

Commerical A-Grade Panels
Full HD 1920x1080 / Brightness 250cm/m²
2 Looping BNC(NTSC/PAL) / 3 BNC / 2 HDMI / DVI / VGA / Component(YPbPr) / AV(Composite) Sound L/R (RCA Type) Inputs
3D Comb-Filter / De-Interlace
OSD / Remote Control
PIP / PBP
5W Speaker x 2
Auto Source & Power Recovery
100-240V~, 50/60Hz (Auto Switching)
3-Year Warranty













Download VZ-24LX PDF Specifications Sheet

Download VZ-24LX PDF Manual
















  Screen Size 24"
  Max Resolution 1920 x 1080 @60Hz
  Pixel Pitch 0.2715mm x 0.2715mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 170°/160° (CR > 10)
  Display Color 16.7 Million
  Response Time < 5ms
  Video System NTSC / PAL


  AV (Composite) In / Out 5 / 2
  RGB In (15pin D-Sub) 1
  Component (Y, Pb, Pr) In 1
  DVI In 1
  HDMI In 1
  AV (Composite) Sound L/R (RCA Type) 1 / 1
  YPbPr Sound L/R (RCA Type) 1 / 1


  Built-in Speaker 5 W x 2


  Multi Display Function PIP / PBP
  Filter Type 3D Comb filter / De-Interlace
  Image Retention Yes
  Multi-Lingual Language English, Spanish, French,
Russian, Portuguese


  Outline Dimension (W x H x D) 22.40" x 14.46" x 6.29"
  569.1mm x 367.5mm x 159.8mm
  Net Weight / Gross Weight 17.63 lbs ( 8.0 kg ) / 25.35 lbs ( 11.5 kg )


  Vesa 75mm x 75mm
  100mm x 100mm / M4 x L10 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption 40W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 - 122°F / -10°C - 50°C
  Compatible Mounts - Wall VZ-AM02, VZ-WM50
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02





  * Specifications subject to change without notice
