Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

  • 4K UHD  HD PVM N  IP PVM N   IPM   PRO  NB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 49” 1080p CCTV LED Monitor / 1.07B color IPS Panel
    • Narrow 5.9 mm Metal Bezel
    • High Brightness 700 cd/m²
    • Digital & Analog Inputs
    • USB - Media Player
    • Auto Source & Power Recovery
    • 3D Comb-Filter & De-Interlace
    • Prevents Pixel Burn-In
    • 3-Year Warranty
Hover to zoom, click to view

Compatible Mounts

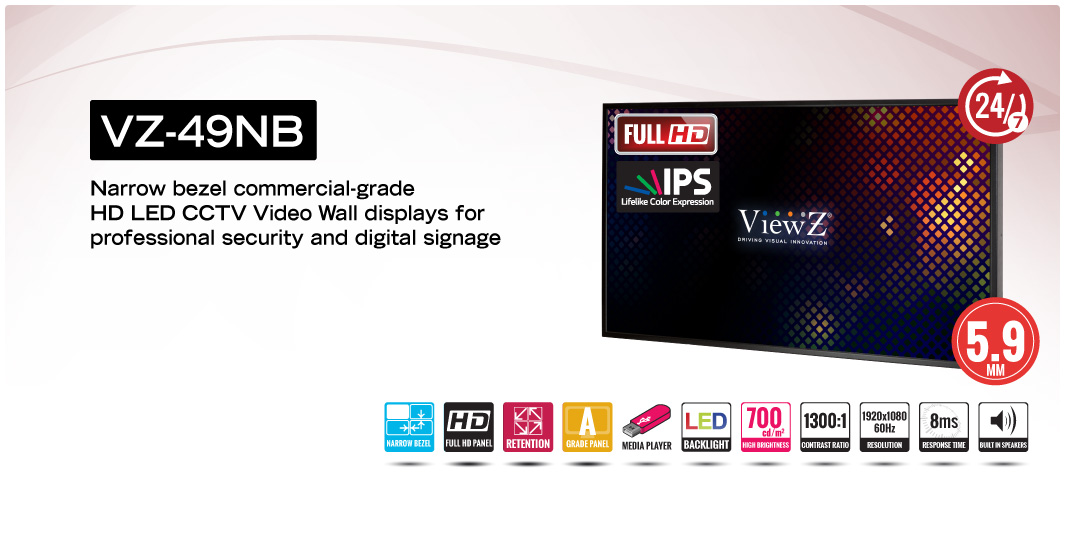

Model Number: VZ-49NB
49" Flat Panel Widescreen LED A Commercial-Grade Monitor

49" Black All Metal 5.9 mm Ultra-narrow Seamless Bezel

1.07 Billion Color IPS Panel (10 bit)
Full HD 1920x1080 / 16:9
HDMI / DVI / VGA / USB / AV (composite) / S-Video(Y,C-BNC) / RCA (Audio) In&Out / PC Stereo In / Rs-232 IN
3D Comb Filter / De-Interlace
Auto Power and Source Recovery
10W Speaker x 2
AC100 ~ 240V(50/60Hz)
3-Year Warranty













Download VZ-49NB PDF Specifications Sheet

Download VZ-49NB PDF Manual
















  Screen Size 49"
  Max Resolution 1920 x 1080 @60Hz
  Bezel Width (Active area to Active area) 0.46" (11.8 mm)
  Pixel Pitch 0.55926mm x 0.55926mm
  Brightness 700cd/m²(Typical)
  Contrast Ratio 1300:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 1.07 Billion
  Response Time < 8ms
  Video System NTSC / PAL


  VGA In (15Pin D-Sub) 1
  DVI-D In 1
  HDMI In 1
  USB In 2
  AV (Composite) In / Out 4 / 1
  Component (Y, Pb, Pr - BNC) In 1
  S-Video (Y, C - BNC) In 1
  RS-232 In / Out 1 / 1
  RCA (Audio) In / Out 1 / 1
  PC Stereo In 1


  Built-in Speaker 10 W x 2


  Video Codec WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB
  Video Format MPEG, AVI, MOV, MP4, MKV, RM, RMVB
  Image Format JPEG, PNG, BMP
  Music Format mp3, mp4, wma
  Text Format TXT (raw text file only)
  Support Capacity Max 16GB


  RS-232 Control Program Monitor Power On / Off
  Prevent Pixel Burn-in YES
  Source & Power Recovery YES
  3D Comb-Filter & De-Interlace YES
  Multi-Lingual Language English, Chinese


  Outline Dimension 42.92" x 24.48" x 3.14"
  (W x H x D) 1091.58mm x 621.8mm x 79.83mm
  Net Weight 54.01 lbs / 24.5kg
  Gross Weight 59.52 lbs / 27.0kg


  Universal 600mm x 94mm x 200mm x 94mm / M6 X L12 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption 140 W (Max) / 0.5 W (Standby)
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 122°F / 0 - 50°C
  Compatible Mounts - Wall VZ-XM55, VZ-WM71
  Compatible Mounts - Ceiling VZ-CMK04, VZ-CMKit04





  * Specifications subject to change without notice
