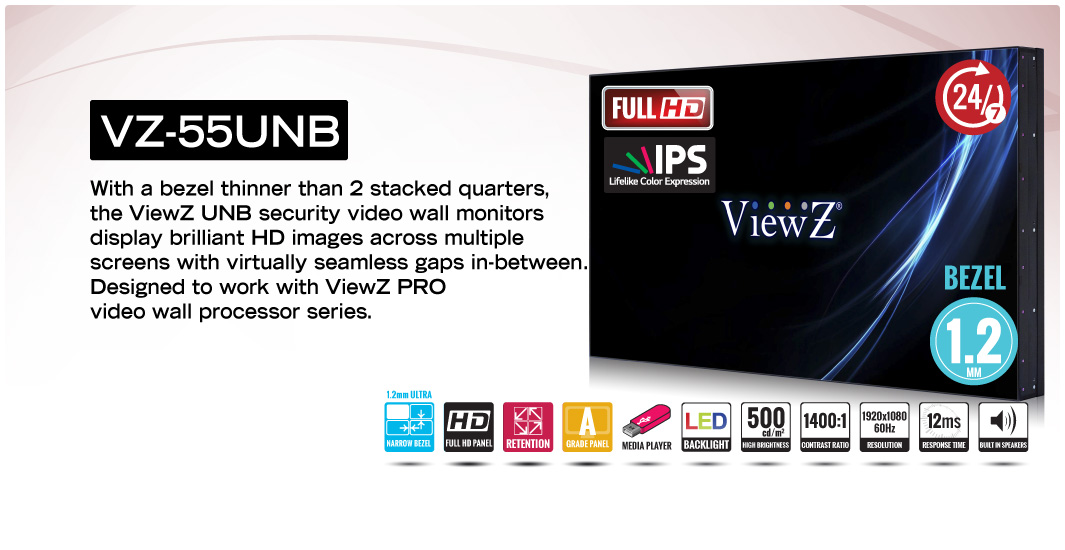

Model Number: VZ-55UNB |
|
55" Flat Panel Widescreen LED A Commercial-Grade Monitor | |
55" Black All Metal 1.2 mm Ultra-narrow Seamless Bezel |
|
1.07 Billion Color IPS Panel (10 bit) | |
Full HD 1920x1080 / 16:9 | |
HDMI / DVI / VGA / USB / AV (composite) / S-Video(Y,C-BNC) / RCA (Audio) In&Out / PC Stereo In / Rs-232 IN | |
3D Comb Filter / De-Interlace | |
Auto Power and Source Recovery | |
10W Speaker x 2 | |
AC100 ~ 240V(50/60Hz) | |
3-Year Warranty |
Download VZ-55UNB PDF Specifications Sheet
Screen Size | 55" |
Max Resolution | 1920 x 1080 @60Hz |
Bezel Width (Active area to Active area) | 0.149" (3.5 mm) |
Pixel Pitch | 0.63025mm x 0.63025mm |
Brightness | 500cd/m²(Typical) |
Contrast Ratio | 1400:1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° |
Display Color | 1.07 Billion |
Response Time | < 12ms |
Video System | NTSC / PAL |
VGA In (15Pin D-Sub) | 1 |
DVI-D In | 1 |
HDMI In | 1 |
USB In | 2 |
AV (Composite) In / Out | 4 / 1 |
Component (Y, Pb, Pr - BNC) In | 1 |
S-Video (Y, C - BNC) In | 1 |
RS-232 In / Out | 1 / 1 |
RCA (Audio) In / Out | 1 / 1 |
PC Stereo In | 1 |
Built-in Speaker | 10 W x 2 |
Video Codec | WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB |
Video Format | MPEG, AVI, MOV, MP4, MKV, RM, RMVB |
Image Format | JPEG, PNG, BMP |
Music Format | mp3, mp4, wma |
Text Format | TXT (raw text file only) |
Support Capacity | Max 16GB |
RS-232 Control | Monitor Power On / Off |
Prevent Pixel Burn-in | YES |
Source & Power Recovery | YES |
3D Comb-Filter & De-Interlace | YES |
Multi-Lingual Language | English, Chinese |
Outline Dimension | 47.77" x 26.93" x 4.34" |
(W x H x D) | 1213.40mm x 684.20mm x 110.30mm |
Net Weight | 70.54 lb / 32.0 kg |
Gross Weight | 90.38 lb / 41.0 kg |
Universal | 600mm x 94mm x 200mm x 94mm / M6 X L12 Screws |
Transmitter - IR Remote Control | Yes |
Power - Electrical Ratings | AC100 ~ 240V(50/60Hz) |
Power - Consumption | 240 W (Max) / 0.5 W (Standby) |
Warranty - Parts / Labor | 3 Year / 3 Year |
Operating Temperature | 32 - 122°F / 0 - 50°C |
Compatible Mounts - Wall | VZ-XM55, VZ-WM71 |
Compatible Mounts - Ceiling | VZ-CMK04, VZ-CMKit04 |
* Specifications subject to change without notice |
