  • • The Tilting Ceiling Mount Plate allows for Quick and Precise
       Installations on Bevel Type Ceiling
    • Load Capacity is 110 lbs / 50 kg and 90.5 mm Profile to Mount
    • ±80° Tilt Adjustment along with 360° Pan Rotation for
       Achieving that Perfect Viewing Angle
    • Fast and Easy Connection
    • Connects to NPT Standard Pole Sizes - 1-1/2" (38.1mm)
Scroll to learn more
Hover to zoom, click to view

Designed specifically for

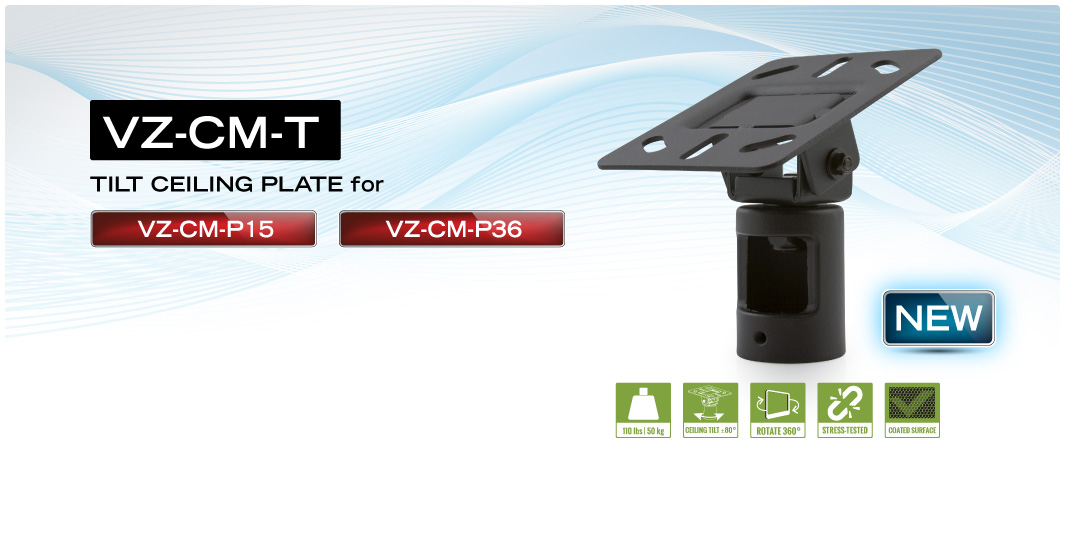

Model Number: VZ-CM-T
The Tilting Ceiling Mount Plate allows for Quick and Precise
Installations on Bevel Type Ceiling
Load Capacity is 110 lbs / 50 kg and 90.5 mm Profile to Mount
±80° Tilt Adjustment along with 360° Pan Rotation for
Achieving that Perfect Viewing Angle
Easy Cable Management
Connects to NPT Standard Pole Sizes - 1-1/2" (38.1mm)
Designed specifically for VZ-CM-P15 & VZ-CM-P36












Tilt Ceiling Plate : T (110 lbs / 50kg - load capacity)

Connector : C (Connect P15 - 2units or P36 - 2 units)

Column (Pole) : P15 (8.7" ~ 14.55") , P36 (35.43")

Mounting Pattern: V1 (VESA, 23"~ 42" monitor) , V3 (Universal, 37" ~ 70" monitor)

Ceiling Mount Kit: Kit-01 (Ceiling Mount + VESA Mounting Plate) , KiT-02 (Ceiling Mount + Pole + VESA Mounting Plate), KiT-04 (Ceiling Mount + Pole + Universal Mounting Plate)















Download VZ-CM-T PDF Specifications Sheet

Download VZ-CM-T PDF Installation Manual














  NET Weight 2.35 lbs / 1.07 kg
  Weight Capacity 110 lbs / 50 kg
  PAN Rotation 360°
  Tilt Capability ± 80°


  Ceiling Plate Pole 150mm x 120mm x 53mm
  ( Wide x Height x Length ) 5.9" x 4.72" x 2.08"
  Pole (R x Length) Ø 38.1 x 76mm / Ø 1.5 x 3"
  Ceiling Plate Profile 130.5 mm / 5.13"







  * Specifications subject to change without notice
