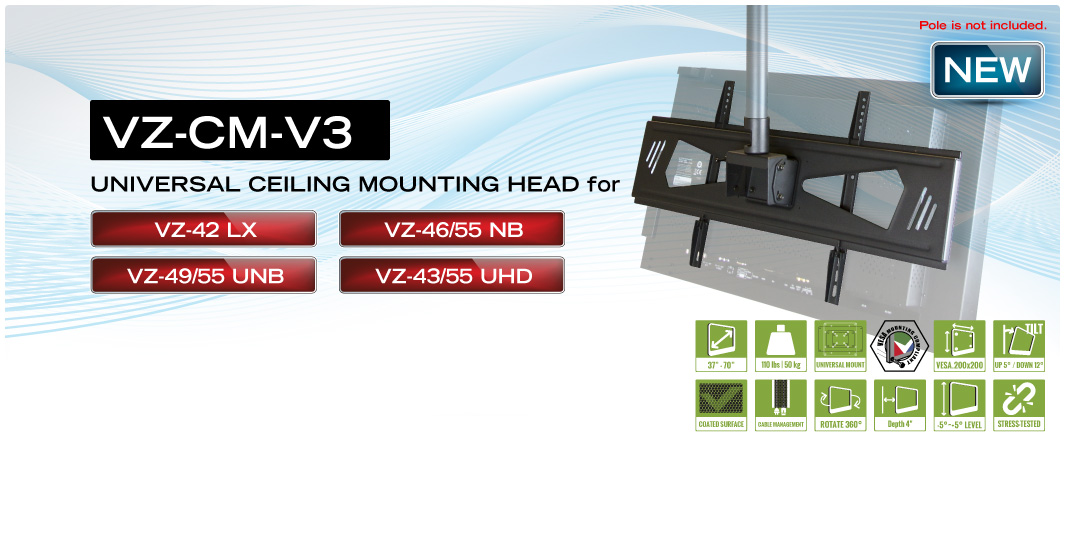

Model Number: VZ-CM-V3 |
|
Mounting Head for 37" to 70" CCTV & Video Wall Monitors | |
Load Capacity is 110 lbs / 50 kg | |
5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle | |
± 5° Level Adjustment | |
VESA Standard (200x200) and Universal Mounting Support | |
Easy Cable Management | |
Pole Option : VZ-CM-P36 (35.5") and VZ-CM-P15 (8.7" ~ 14.55") |
Tilt Ceiling Plate : T (110 lbs / 50kg - load capacity) |
|
Connector : C (Connect P15 - 2units or P36 - 2 units) |
|
Column (Pole) : P15 (8.7" ~ 14.55") , P36 (35.43") |
|
Mounting Pattern: V1 (VESA, 23"~ 42" monitor) , V3 (Universal, 37" ~ 70" monitor) |
|
Ceiling Mount Kit: Kit-01 (Ceiling Mount + VESA Mounting Plate) , KiT-02 (Ceiling Mount + Pole + VESA Mounting Plate), KiT-04 (Ceiling Mount + Pole + Universal Mounting Plate) |
Download VZ-CM-V3 PDF Specifications Sheet
Download VZ-CM-V3 PDF Installation Manual
Display Range | 37” - 70” |
NET Weight | 11.06 lbs / 5.02 kg |
Weight Capacity | 110 lbs / 50 kg |
Tilt | +5° ~ -12° |
Level | +5° ~ -5° |
Rotation | 360° |
Mounting Pattern Type | Range |
Mounting Patterns (Universal) | 200 x 200 (Min) ~ 800 x 400 (Max) mm |
Size | 904mm x 440mm x 103mm |
( Width x Height x Depth ) | 35.59" x 17.32" x 4.05" |
Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1-1/2" x 3" |
* Specifications subject to change without notice |
