Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 55” 1080p CCTV LCD Monitor
    • Ultra-narrow Seamless Bezel
       (Active to Active 5.9 mm)
    • Digital & Analog Inputs
    • 3-Year Warranty
    • Image Rotaton Feature Prevents "Pixel Burn-In"
    • OSD Function Control through
       RJ-45 protocol
Hover to zoom, click to view

Compatible Mounts

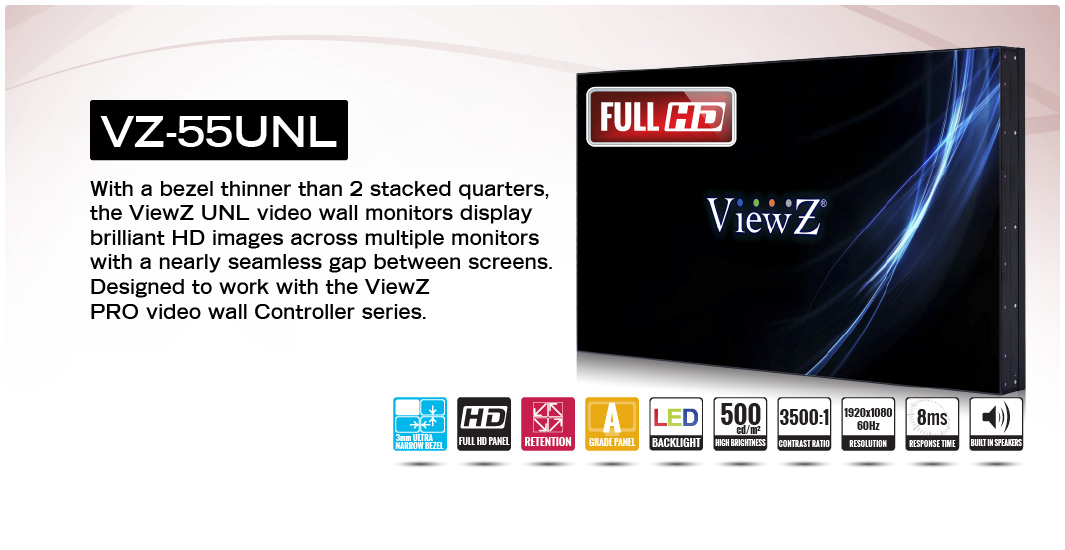

Model Number: VZ-55UNL

55" Black All Metal 5.9 mm Ultra-narrow Seamless Bezel

Full HD 1920x1080 / 16:9
Commercial "A" Grade Flat Panel
RJ-45 IN / HDMI / DVI / DISPLAY / PC Stereo In/Outputs
3D Comb Filter / De-Interlace
OSD / Remote Control
PIP / PBP / VOV
Auto Power and Source Recovery
2W Speaker x 2
AC100 ~ 240V(50/60Hz)
3-Year Warranty













Download VZ-55UNL PDF Specifications Sheet

Download VZ-55UNL PDF Manual

Download UNL Series Monitor Control Software
















  Screen Size 55"
  Max Resolution 1920 x 1080 @60Hz
  Bezel Width (Active area to Active area) 5.9 mm
  Pixel Pitch 0.63025mm x 0.63025mm
  Brightness 500cd/m²(Typical)
  Contrast Ratio 3500:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 16.7 Million
  Response Time < 8ms
  Video System NTSC / PAL
  Frequency (H) 31 ~ 80Khz
  Frequency (V) 56 ~ 75Hz


  VGA In (15Pin D-Sub) 1
  DVI-D In 1
  HDMI In 1
  DISPLAY PORT In 1
  RJ-45 In 1
  PC Stereo In / Out 1 / 1


  Built-in Speaker 2 W x 2


  RJ-45 Control Program Monitor OSD
  Image Rotation YES
  Rotate IR receiver YES
  Noise Reduction YES
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension 47.85" x 27.02" x 5.50"
  (W x H x D) 1215.99mm x 686.30mm x 139.70mm
  Net Weight 91.491839 lbs / 41.5kg


  Vesa 600mm x 100mm x 100mm x 100mm / M8 X 12 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption 330 W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Compatible Mounts - Wall VZ-XM55, VZ-WM71
  Compatible Mounts - Ceiling VZ-CMK04





  * Specifications subject to change without notice
