  • • Mounting head for 23" to 32" CCTV & Video Wall Monitors
    • Load Capacity is 110 lbs / 50 kg
    • VESA Standard - 75x75, 100x100, 200x100 and 200x200
    • Easy Cable Management
    • 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan
       Rotation For Achieving that Perfect Viewing Angle
Scroll to learn more
Hover to zoom, click to view

Designed specifically for

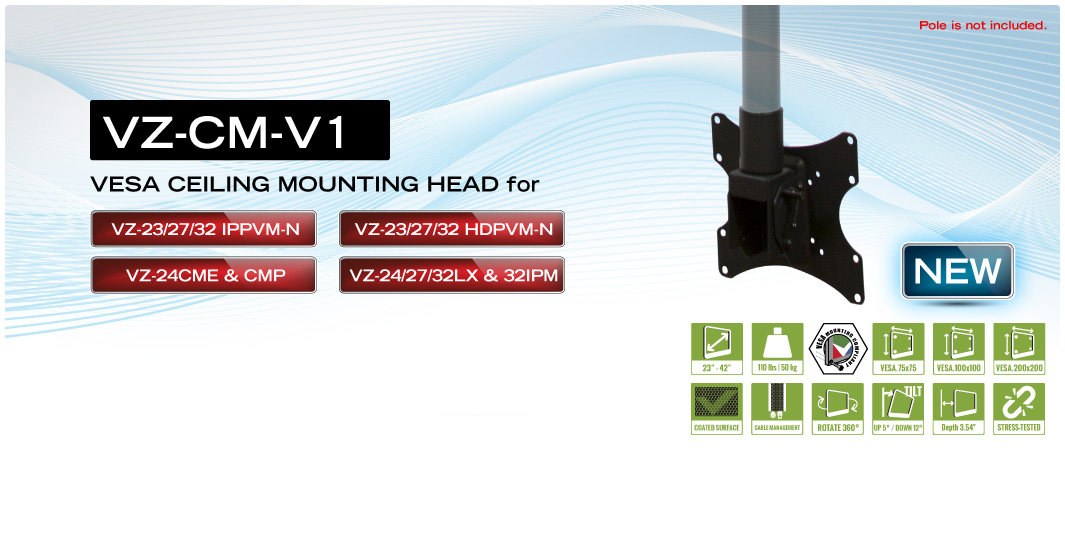

Model Number: VZ-CM-V1
Mounting Head for 23" to 32" CCTV & Video Wall Monitors
Load Capacity is 110 lbs / 50 kg
5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
VESA Standard - 75x75, 100x100, 200x100 and 200x200
Easy Cable Management
Pole Option : VZ-CM-P36 (35.5") and VZ-CM-P15 (8.7" ~ 14.55")












Tilt Ceiling Plate : T (110 lbs / 50kg - load capacity)

Connector : C (Connect P15 - 2units or P36 - 2 units)

Column (Pole) : P15 (8.7" ~ 14.55") , P36 (35.43")

Mounting Pattern: V1 (VESA, 23"~ 42" monitor) , V3 (Universal, 37" ~ 70" monitor)

Ceiling Mount Kit: Kit-01 (Ceiling Mount + VESA Mounting Plate) , KiT-02 (Ceiling Mount + Pole + VESA Mounting Plate), KiT-04 (Ceiling Mount + Pole + Universal Mounting Plate)















Download VZ-CM-V1 PDF Specifications Sheet

Download VZ-CM-V1 PDF Installation Manual














  Display Range 23” - 32”
  NET Weight 4.56 lbs / 2.07 kg
  Weight Capacity 110 lbs / 50 kg
  Tilt +5° ~ -12°
  Rotation 360°
  Mounting Pattern Type VESA
  Mounting Patterns 75 x 75(Min) ~ 200 x 200(Max)


  Size 220mm x 252mm x 90mm
  ( Width x Height x Depth ) 8.66" x 9.92" x 3.54"
  Pole ( R x Length ) Ø 38.1 x 76mm / Ø 1-1/2" x 3"







  * Specifications subject to change without notice
