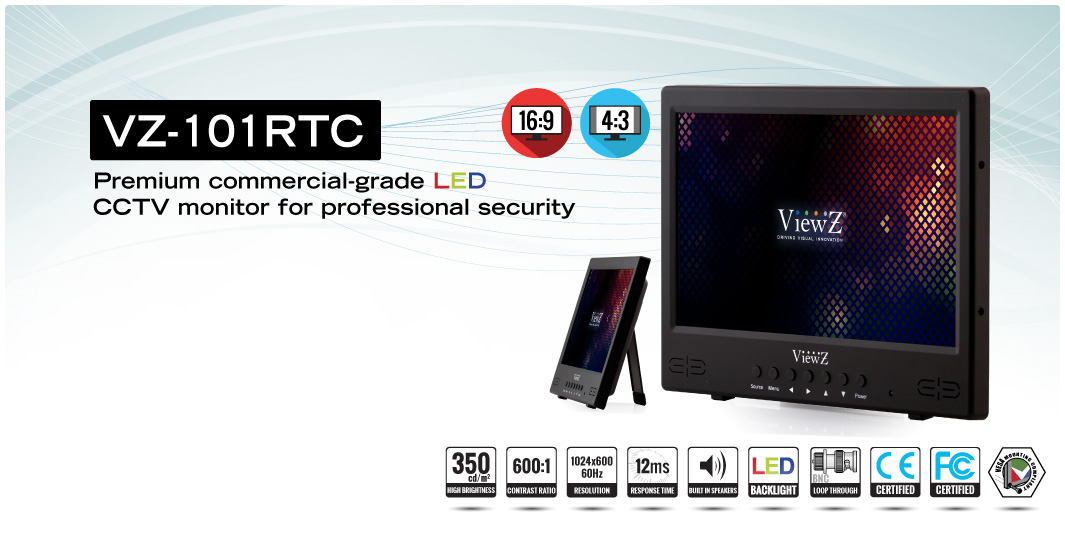

Model Number: VZ-101RTC

10.1" Black Panel Widescreen LED "A" Commercial-Grade Monitor
1024x600 / 16:9 (4:3 available)
Looping BNC(NTSC/PAL) / Looping BNC(NTSC/PAL) / HDMI / VGA / Audio
2D Comb Filter / Noise Reduction / Trigger
OSD
Auto Power and Source Recovery
1W Stereo Speaker x 2
DC 12V, 2.0 A
3-Year Warranty













Download VZ-101RTC PDF Specifications Sheet

Download VZ-101RTC PDF Manual
















  Screen Size 10.1"
  Max Resolution 1024x 600 @60Hz
  Pixel Pitch 0.2175 mm x 0.2088 mm
  Brightness 350cd/m²(Typical)
  Contrast Ratio 600:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 160°/150°
  Display Color 0.26 Million
  Response Time < 12ms
  Video System NTSC / PAL


  AV(Composite)1 In/ Out (BNC Type) 1 / 1
  RGB In (15pin D-Sub) 1
  Trigger In 1
  HDMI In 1
  Audio In 1


  Built-in Speaker 1 W x 2


  Filter Type 2D Comb filter / Noise Reduction
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Polish, Russian


  Outline Dimension 9.92” x 7.28” x 1.05”
  (W x H x D) 252.0 mm x 185.0 mm x 26.80 mm
  Net Weight 2.86 lbs / 1.3 Kg
  Gross Weight 3.52 lbs / 1.6 Kg


  Vesa 75mm x 75mm / M4 x L8 Screws


  Power - Electrical Ratings DC 12V, 2.0A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 8W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations CE, FCC(A)
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
