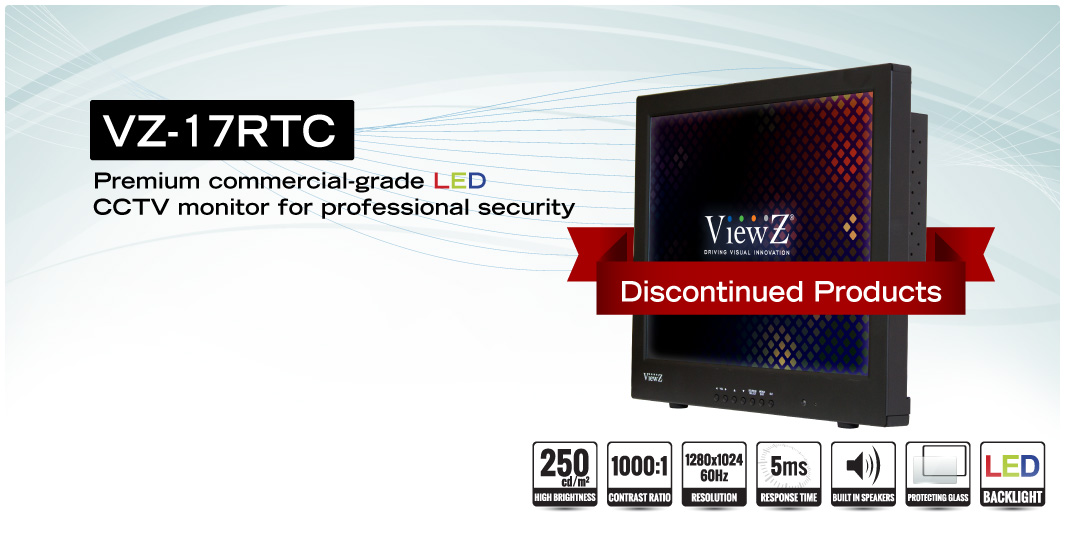

Model Number: VZ-17RTC

17" Black All Metal Flat Panel LED "A" Commercial-Grade Monitor
1280x1024 / 5:4
2 Looping BNC(NTSC/PAL) / 2 HDMI / DVI / VGA / S-Video / Component / PC Stereo
3D Comb Filter / De-Interlace
OSD / Remote Control
PIP / PBP / VOV
Auto Switching
Auto Power and Source Recovery
2W Stereo Speaker x 2
LCD Protection Glass
DC 12V
50Khrs
3-Year Warranty













Download VZ-17RTC PDF Specifications Sheet

Download VZ-17RTC PDF Dimension Diagram

Download VZ-17RTC PDF Manual
















  Screen Size 17"
  Max Resolution 1280 x 1024 @60Hz
  Pixel Pitch 0.264mm x 0.264mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 5 : 4
  Viewing Angle (H/V) 160°/160°
  Display Color 16.7 Million
  Response Time < 5ms
  Video System NTSC / PAL
  Frequency (H) 31 ~ 80Khz
  Frequency (V) 56 ~ 75Hz


  AV (Composite) In / Out 2 / 2
  S-Video In / Out (1ch input (Y/C) , loop-through out) 1 / 1
  RGB In (15pin D-Sub) 1
  Component (Y, Pb, Pr, Sound L / R) In 1
  DVI In 1
  HDMI 1 / HDMI 2 1 / 1
  Trigger In 1
  Trigger Sensor Yes
  AV (Composite) Sound In/Out (RCA Type) 2 / 2
  PC Stereo In/Out 1 / 1


  Built-in Speaker 2 W x 2


  Multi Display Function PIP / PBP / VOV
  Filter Type 3D Comb filter / De-Interlace
  LCD Protection Glass Yes
  Video Resolution (Max) 600 TV Line
  Camera Mounting Hole 2 (Top / Bottom)
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension 15.35” x 13.78” x 2.95”
  (W x H x D) 389.89 mm x 350.012 mm x 74.93 mm
  Net Weight 14.15 lbs / 6.42Kg
  Gross Weight 18.06 lbs / 8.19Kg


  Vesa 100mm x 100mm / M4 x 10 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC 12V, 3A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 36W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations UL, CB, FCC(B), CE-Emc(LVD)
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
