Model Number: VZ-15RTC

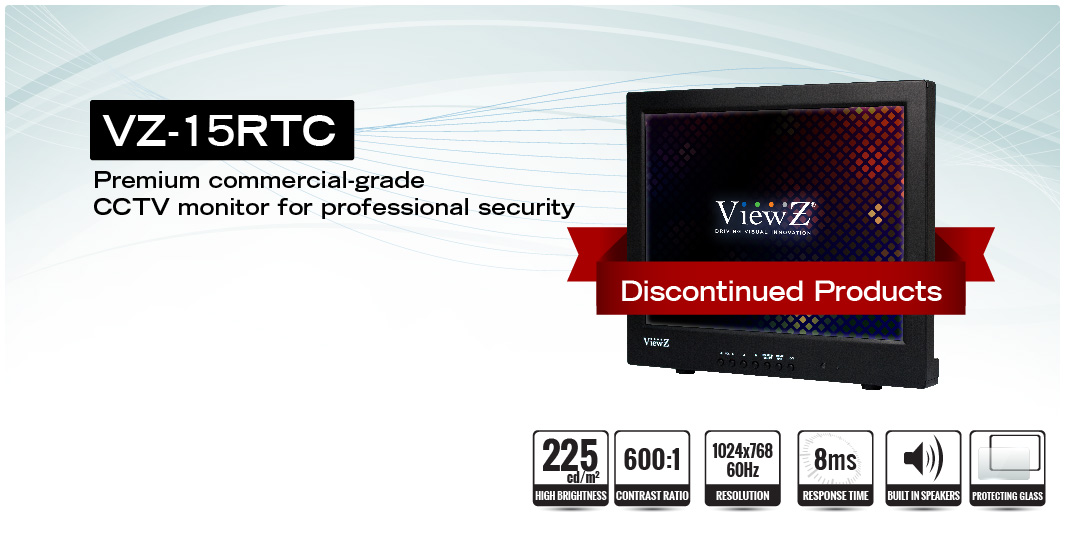

15" Black All Metal Flat Panel LCD "A" Commercial-Grade Monitor
1024x768 / 4:3
2 Looping BNC(NTSC/PAL) / S-Video / VGA / PC Stereo
3D Comb-Filter / De-Interlace
OSD
Auto Power and Source Recovery
2W Stereo Speaker x 2
LCD Protection Glass
DC 12V
50Khrs
3-Year Warranty













Download VZ-15RTC PDF Specifications Sheet

Download VZ-15RTC PDF Dimension Diagram

Download VZ-15RTC PDF Manual
















  Screen Size 15"
  Max Resolution 1024x 768 @60Hz
  Pixel Pitch 0.297mm x 0.297mm
  Brightness 225cd/m²(Typical)
  Contrast Ratio 600:1
  Aspect Ratio 4 : 3
  Viewing Angle (H/V) 160°/160°
  Display Color 16.7 Million
  Response Time < 8ms
  Video System NTSC / PAL
  Frequency (H) 31 ~ 48Khz
  Frequency (V) 56 ~ 75Hz


  AV (Composite) In / Out 2 / 2
  S-Video In / Out (1ch input (Y/C) , loop-through out) 1 / 1
  RGB In (15pin D-Sub) 1
  AV(Composite) Sound In (RCA Type) 1
  PC Stereo In 1


  Built-in Speaker 2 W x 2


  Filter Type 3D Comb filter / De-Interlace
  LCD Protection Glass Yes
  Video Resolution (Max) 520 TV Line
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension 13.92” x 11.97” x 2.36”
  (W x H x D) 353.568mm x 343.038mm x 59.94mm
  Net Weight 10.58 lbs / 4.8 Kg
  Gross Weight 13.80 lbs / 6.26Kg


  Vesa 100mm x 100mm / M4 x 10 Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings DC 12V, 3A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 36W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations UL, CB, FCC(B), CE-Emc(LVD)
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
