  • ACT 1  ACT 2  PSU 2  PSU 3  DC-24-320  VZ-PVM-I1W4 PoE Injector
    • Output : 24VAC / 40VA
    • Input : 120VAC / 50~60Hz
    • Specifically Designed for 10" PVMZ
    • Auto-Resetting (PTC) Fused Secondary
    • UL2BFO Listed
    • Wire Strain Relief
    • Factory Lifetime Limited Warranty
    • Maximum Distance : 1200 ft / 365.76 m
Hover to zoom, click to view

Compatible Monitors

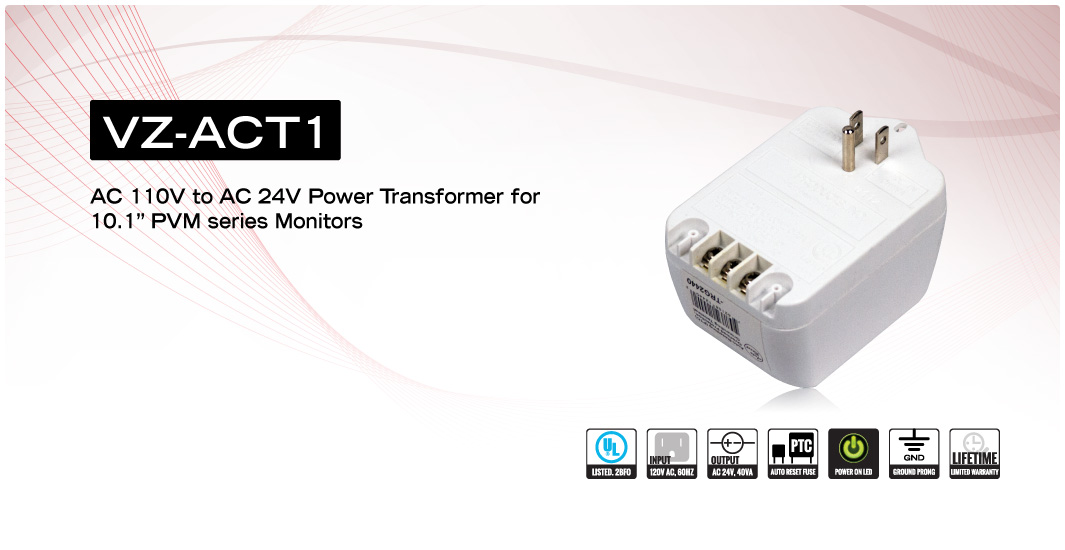

Model Number: VZ-ACT1

Specifically designed for 10" HD Public View Monitor
AC 24V output
AC 120V / 60Hz input
Auto-Resetting (PTC) Fused Secondary
Green Power On LED
Grounding Prong & Terminal
Electrical Outlet Mounting Tab
UL Listed, Wire Strain Relief, Factory Lifetime Limited Warranty













Download VZ-ACT1 PDF Specifications Sheet
















  Input Voltage 120V AC, 60Hz
  Output Voltage 24V AC
  Output Power 40VA

  Monitor Model VZ-PVM-I1W4N
  Cable Type 14AWG

  Ft / Meter Volt. (V) Curr. (A)
  50 ft / 15.24 m 27.43 0.698
  100 ft / 30.48 m 27.25 0.707
  200 ft / 60.96 m 26.76 0.713
  300 ft / 91.44 m 26.53 0.713
  500 ft / 152.4 m 25.77 0.720
  800 ft / 243.84 m 25.74 0.734
  1000 ft / 304.8 m 24.39 0.744
  1200 ft / 365.76 m 23.55 0.773
  Over 1200ft Not Recommended


  Regulation Safety Standards UL 2BFO


  Outline Dimension (W x H x D) 2.74" x 4.14" x 2.2"
  70mm x 105mm x 56mm
  Net Weight 2 lbs / 0.90 kg


  Operating Temperature 32 - 104°F / 0 - 40°C   Compatible Mounts - Wall VZ-XM46, VZ-AM03, VZ-WM71   Compatible Mounts - Ceiling VZ-CMK04
-->




  * Specifications subject to change without notice
