    • 1/3" SONY Super HAD II CCD Camera with 3.7mm Fixed Lens
    • Camera BNC Loop Out
    • Camera and LED On Screen Display (OSD) Switch on Back
    • Steel Housing
    • Comes with Remote Control
    • Low Cost & Easy to Setup and Install
Hover to zoom, click to view



Compatible Mounts

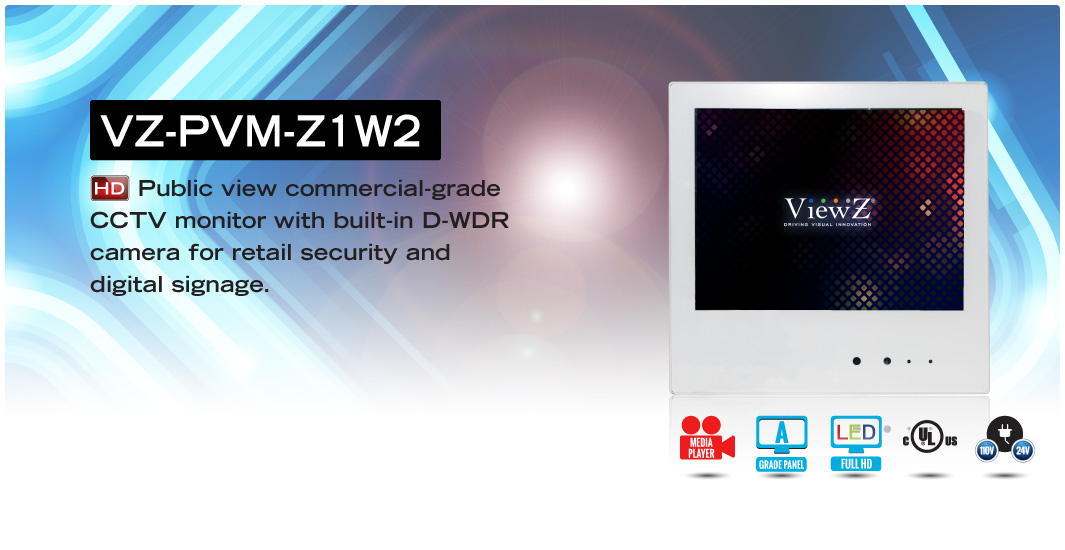

Model Number: VZ-PVM-Z1 _ _
9.7" Flat Panel IPS LED "A" Commercial-Grade Monitor
1024x768 / 4:3
620TVL Camera
USB & SD Media Player
Motion Sensor and Timed Source Switching
Flexible Alert Text / White Blinking LED
Looping BNC
2D Comb Filter / De-Interlace
Camera and Monitor OSD / Remote Control
Auto Power / Source Recovery
VESA Wall Mount 75x75mm
AC 24V
MTBF: 50,000 hrs
3-Year Warranty












Model Features Family Series Size Color Voltage
10", White, AC24V VZ-PVM- Z 1 W 2


Series: Z (HD PVM) , I (IP PVM)

Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)

Color: B (Black) , W (White)
Voltage: 1 (AC110V) , 2 (AC24V)













Download VZ-PVM-Z1W2 PDF Specifications Sheet

Download 10" PVM PDF Manual
















  Screen Size 9.7"
  Max Resolution 1024 x 768 @60Hz
  Pixel Pitch 0.192mm x 0.192mm
  Brightness 300cd/m²(Typical)
  Contrast Ratio 600:1
  Aspect Ratio 4 : 3
  Viewing Angle (H/V) 178°/178°
  Display Color 0.26 Million
  Response Time < 35ms
  Video System NTSC / PAL


  AV (Composite) In / Out 1 / 1
  Camera Out 1 / 768x498(Resolution)
  RGB In (15pin D-Sub) 1


  Filter Type 2D Comb filter / De-Interlace
  Blinking Message “Recording” Yes
  Timed Switching Capabilities Yes
  between Two Cameras
  Protection Glass Yes
  Camera Mounting Hole 3 (Top, Left, Right)
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension 9.37" x 9.17" x 2.08"
  (W x H x D) (238mm x 233mm x 53mm)
  Net / Gross Weight 4.61lbs (20.9kg) / 2.85kg (6.28 Ibs)


  Vesa 75mm x 75mm / M4 x 10 Screws


  Sensor Type 1/3" Sony Supper HAD II CCD
  Effect Pixel NTSC: 768x494 / PAL: 752x582
  Min Illumination 0.001 Lux (F1.2)
  Lens 3.7mm Fixed Lens
  Video Control OSD Key Control, AGC, D-WDR, DNR, IR Smart, White Balance, Day&Night


  Support Type Photo, Music, Video
  Support File Format MPEG1, MPEG4, JPEG, BMP, GIF, PNG, MP3
  Memory - Internal 512MB Nand Flash
  Memory - External USB1.1, USB2.0, SD(4i n1):SD/MMC/MS/XD
  Resolution 720 X 576


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC24V
  Power - Consumption 17W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  Regulations CUL, FCC
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
  Compatible Mounts - Rack VZ-RMK08





  * Specifications subject to change without notice
