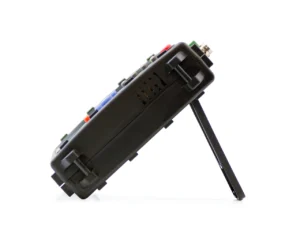

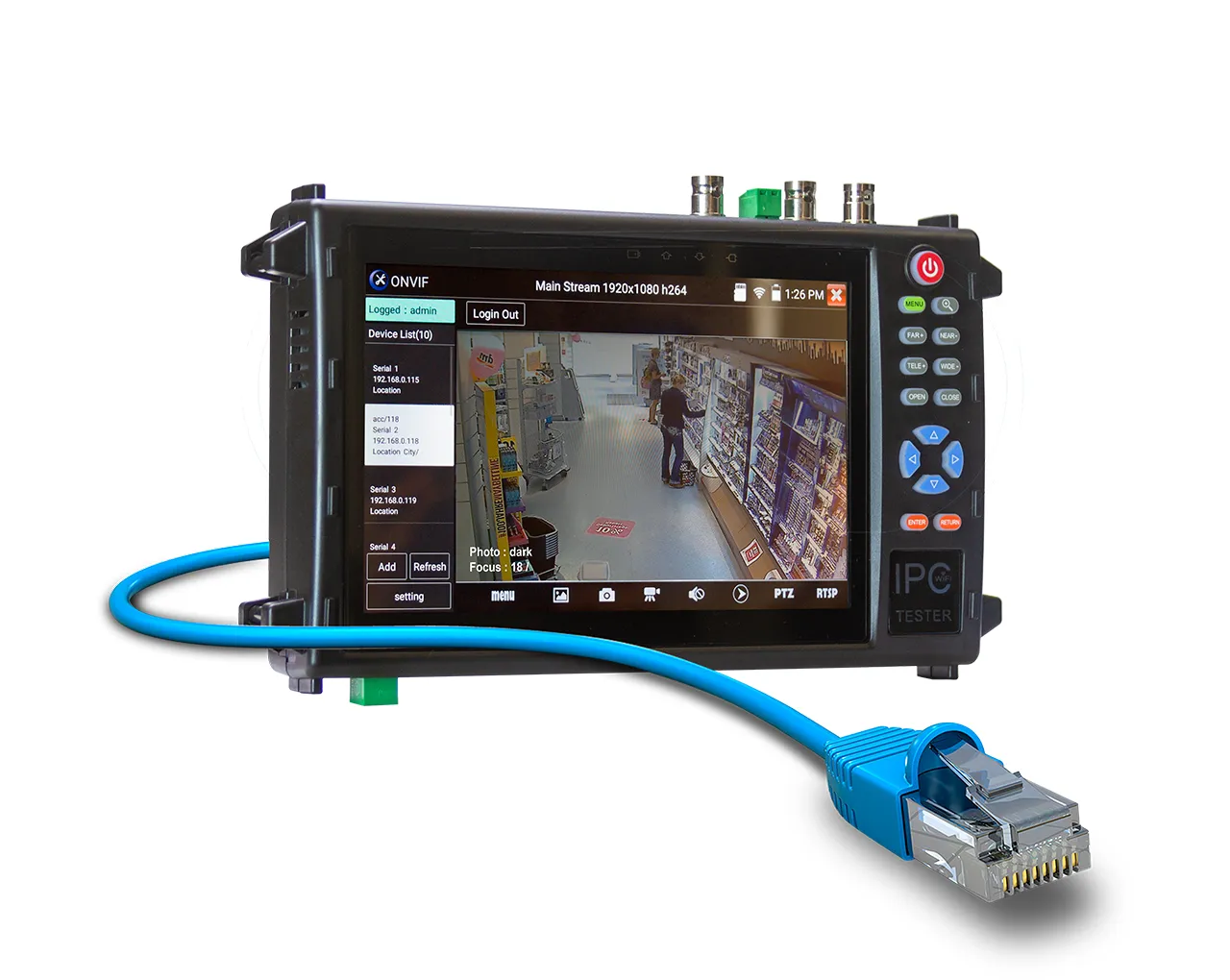

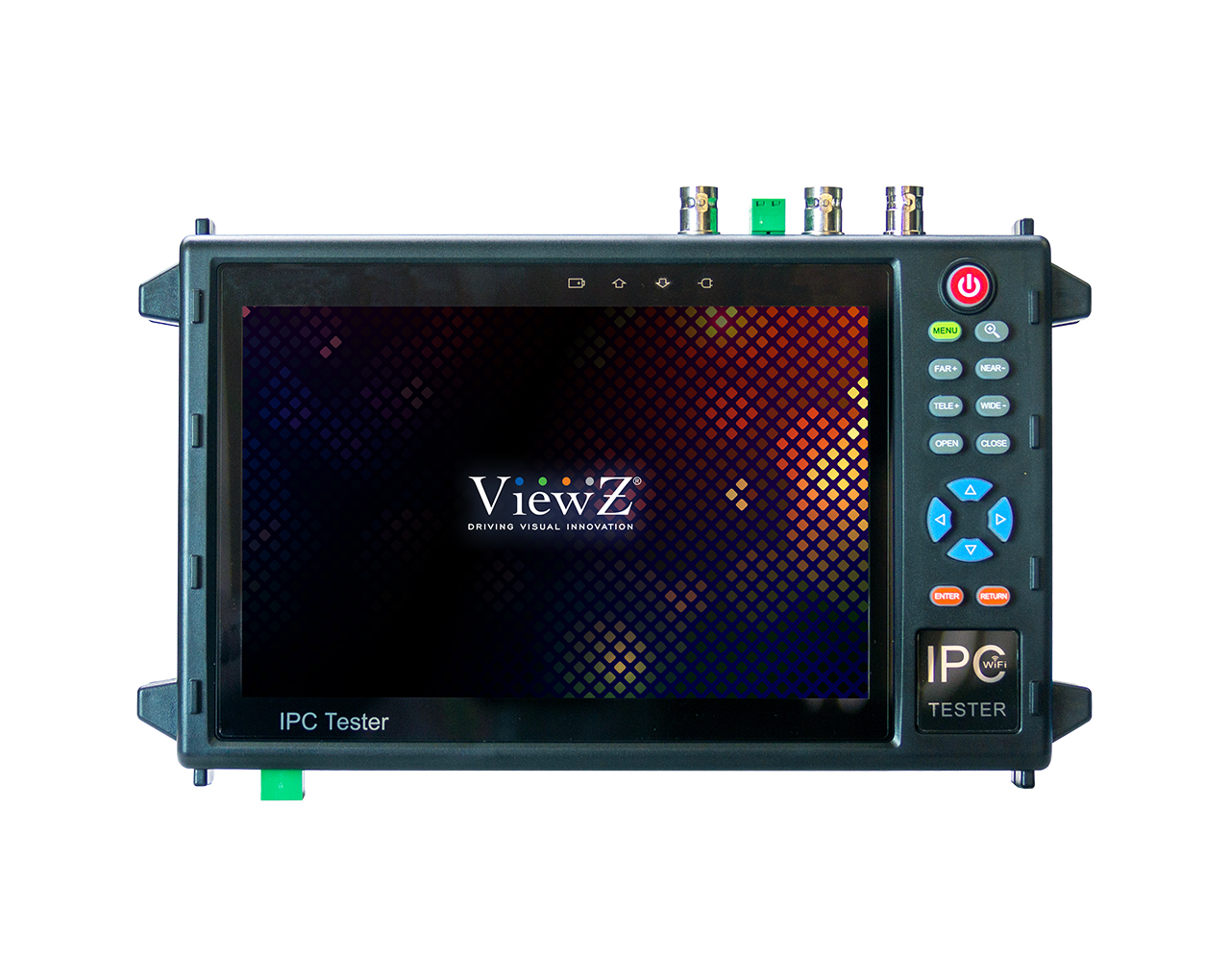

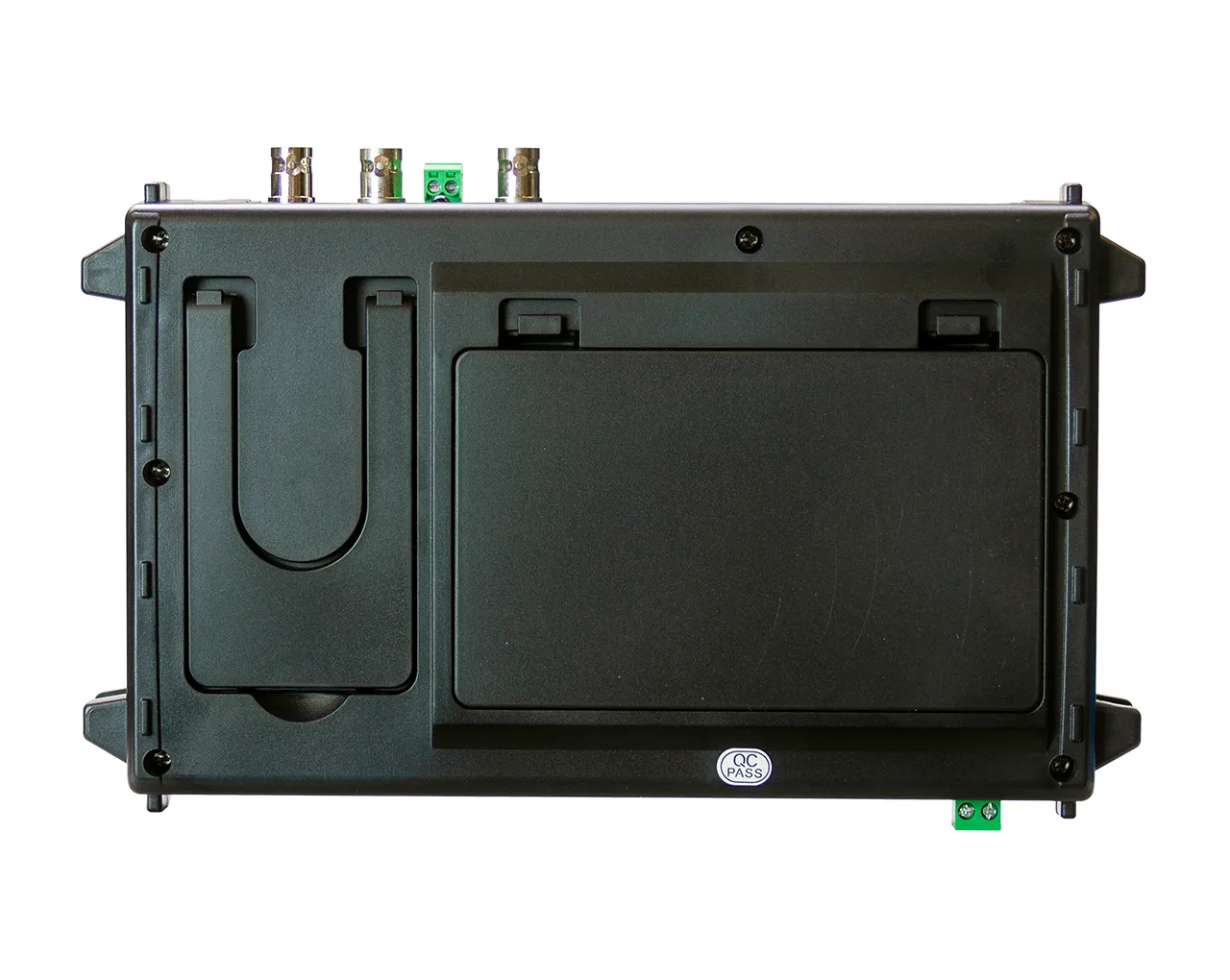

VZ-7IPTM
Developed for on-site installation and maintain for both IP & Hybrid cameras
- 7” IPS with 1280 x 800 Resolution
- Onvif & Hybrid (8MP AHD, TVI, CVI, EX-SDI) Support
- Built-in Wifi Connection & Touch Screen & 8K H.265 Video Display
- P.o.E. Switch or PSE Voltage
- Supports Onvif, IPC Test, IP Discovery, RTSP Play, Client APK
- HDMI Output 4K @60hz & HDMI Input 4K @30hz
- Rapid Video, Video Streaming Record, Playback & Screen Shot
- Color Bar Generator (NTSC/PAL), Display Network Port, WiFi & Other Network Connection Monitoring
- Network – Ping, IP Scan, Port Flash, DHCP Server & Trace Route
- Support RS485 (PTZ Control), Lithium Battery (16 hours)
- Power Out – 48V PoE, DC 24V 2A & DC 12V 3A
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : IPTM | Key Features : Touch Screen IP Test Monitor Hybrid Input NDAA Compliant
Product Features
- Model Number: VZ-7IPTM
- 7” IPS with 1280 x 800 Resolution
- Built-in Wifi Connection, Touch Screen & 8K H.265 Video Display
- Hybrid – 8MP TVI, CVI, AHD & EX-SDI Test
- UTP Cable Test / RJ45 TDR Cable Test / Cable Quality Test
- Onvif, IPC Test, IP Discovery, RTSP Play, Client APK
- HDMI Output 4K @60hz & HDMI Input 4K @30hz
- Rapid Video, Video Streaming Record, Playback & Screen Shot
- Color Bar Generator (NTSC/PAL), P.o.E. Switch or PSE Voltage
- Network – Ping, IP Scan, Port Flash, DHCP Server & Trace Route
- Display Network Port, WiFi & Other Network Connection Monitoring
- Support RS485 (PTZ Control), Lithium Battery (16 hours)
- 48V PoE, DC 24V 2A & DC12V 3A Power Out
- NDAA Compliant
Display
| Screen Size | 7″ |
| Max Resolution | 1280 x 800 @60Hz |
| Aspect Ratio | 5 : 4 |
| Display Color | 16.7 Million |

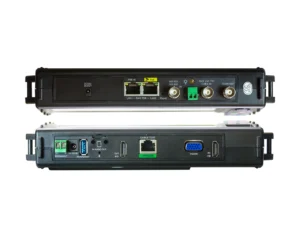

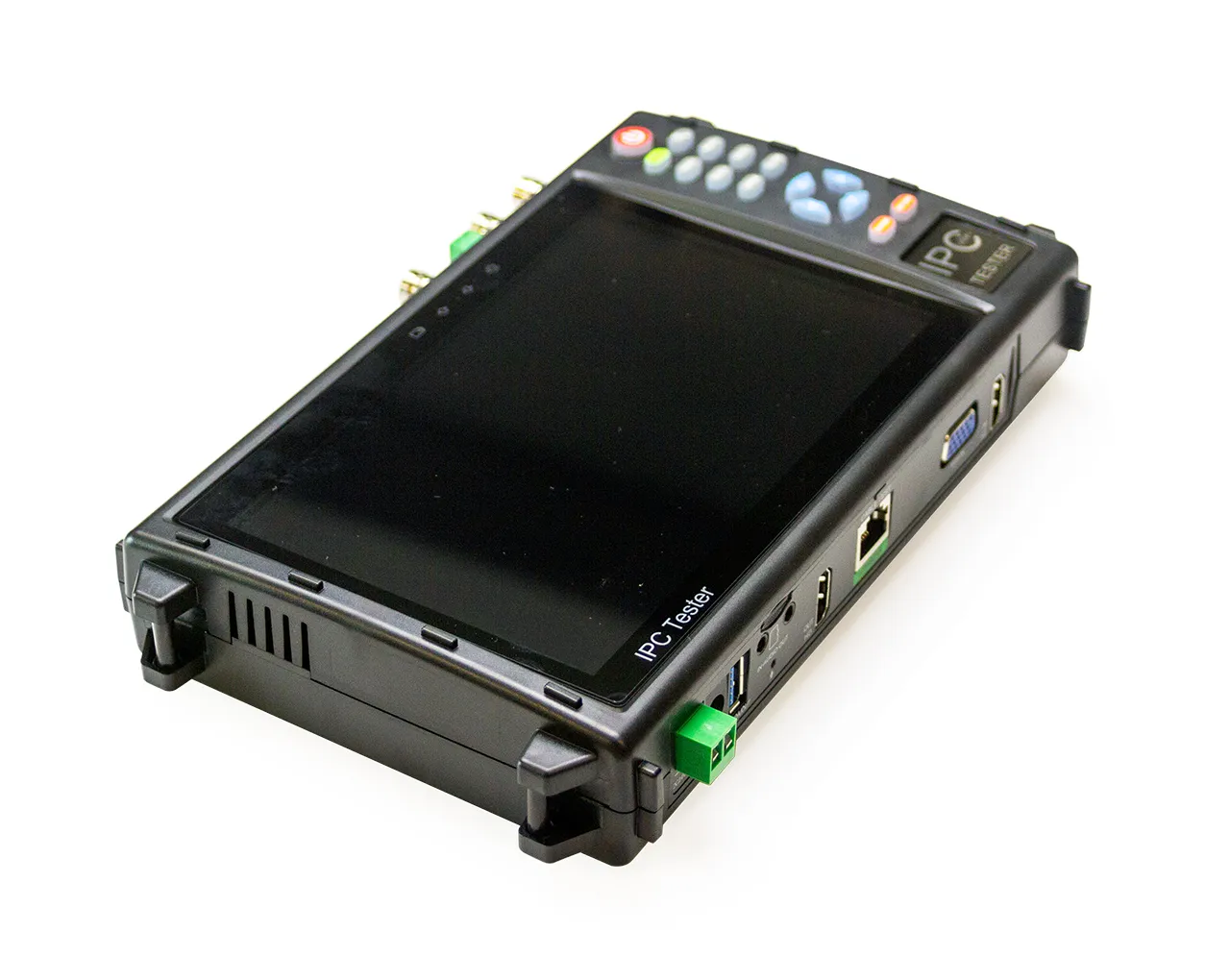

Interface
| 8MP HD-SDI / EX-SDI / 3G-SDI In | 1 |
| 8MP AHD / TVI / CVI / CVBS In | 1 |
| CVBS / SCAN Out | 1 |
| Ethernet (PSE/RJ45-TDR )/ Ethernet (PoE/RJ45-TDR) | 1 / 1 |
| Ethernet (UTP / Cable Tracer) | 1 |
| HDMI In / Out | 1 / 1 |
| RS485 (PTZ Control) In / VGA In | 1 / 1 |
| TF Card In / Built-in MIC | 1 / 1 |
| Audio In / Out | 1 / 1 |
| USB (DC 5V (2A)) Out / DC 24V (2A) Out | 1 / 1 |
| DC 12V (2A) In / DC 12V (3A) Out | 1 / 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 9.44 x 6.06 x 1.81” / 240 x 154 x 46 mm |
| Net Weight | 4.4 lbs / 2 kg |
General Summary
| >Power – Electrical Ratings | DC 12V (AC100 ~ 240V (50/60Hz) ) / 2A |
| Power – Consumption | ≤ 60 W |
| P.o.E. Injector | 48V / 30W Output |
| Battery – Capacity | Built-in 7.6V Lithium Polymer Battery / 7800 mAh |
| Battery – Type | Rechargeable Lithium Polymer Battery (3.5 hours charging time) |
| Battery – Operation Time | 16 hours |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 30 ~ 90% RH |
| Regulations | CE, FCC (A), NDAA, RoHS |
| Language (OSD) | English, Spanish, Russian, Italian, French, Turkish, Portuguese, Polish, Deutsch, Serbian, Czech, Vietnamese, Japanese, Korean & etc |
| Battery – Type | Replaceable Lithium Polymer Battery |
| Package Include | VZ-7IPTM (1pc), Network Cable Tester (1pc), 12V/2A Power Adaptor (1pc), User Manual (1pc), Polymer Lithum ION Battery(1pc), BNC Cable(1pc), 8GB SD Card (1pc), SC/ST Connector (1pc), RS485 Cable(1pc),Audio Cable(1pc),Tool Bag(1pc) |
VIDEO MODE
| CVBS | 1 ch BNC In & 1 ch BNC loop-out, NTSC/PAL |
| Analog video level meter, Sync signal level, Peak video signal level, Color-bar chroma level measurement | |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |
| CVBS – Loop Test | The tester can send and receive color bar generator signal to check BNC cable |
| IP Camera Test – 8K H.265 / 4K H.265 & H.264 | IP Discovery, Quick ONVIF, IPC Test, RTSP Play, Client APK |
| IP Camera Test – Rapid Video | Auto view the video, create testing report |
| IP & CVBS Test | IP & CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD Test – 8MP TVI Camera Test | 3840 x 2160p 15 fps, UTC control & call OSD menu |
| Coaxial HD Test – 8MP CVI Camera Test | 3840 x 2160p 12.5/15 fps, UTC control & call OSD menu |
| Coaxial HD Test – 8MP AHD Test | 3840 x 2160p 12.5/15 fps, UTC control & call OSD menu |
| Coaxial HD Test – 8MP | EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu |
| HDMI In & Out | HDMI In 4K@30fps, HDMI Out 4K@60fps |
| VGA In | 1920 x 1080p |
| Zoom Image | 4 x Zoom, Record, Save, View & Record & Play Back |
TEST
| Tester Play (Screen Projection) | Tester, Mobile Phone and PC display at the same time (For Android Ver. Mobile Phone) |
| Network Test | Trace Route, Link Monitor, DHCP Server, Port Flashing, Ping Test |
| PoE Test | Measurement PoE Switch or PSE Power Supply Voltage and Cable Connection Status |
| Audio Test | 1 ch Audio Signal Input, test whether Sound Normal, 1 ch Audio Signal, to connect Headphone |
| Wi-Fi | Built in WIFI (speeds 150M) display wireless Camera Image |
| Data Monitor | Captures & Analyzes the Command Data from controlling Device, also can send Hexadecimal |
| Cable Test – UTP Cable Test | Test UTP Cable Connection Status & display on the Screen. Read the Number on the Screen |
| Cable Test – RJ45 Cable TDR Test | Test Cable Pair Status, Length, Attenuation, Reflectivity, Impedance, Skew etc. Measurement Range 800 m |
ANALOG VIDEO OUT
| Color Bar Generator – Output 1 ch | NTSC/PAL color bar video signal for testing monitor or video cable |
Product Dimension & Weight
