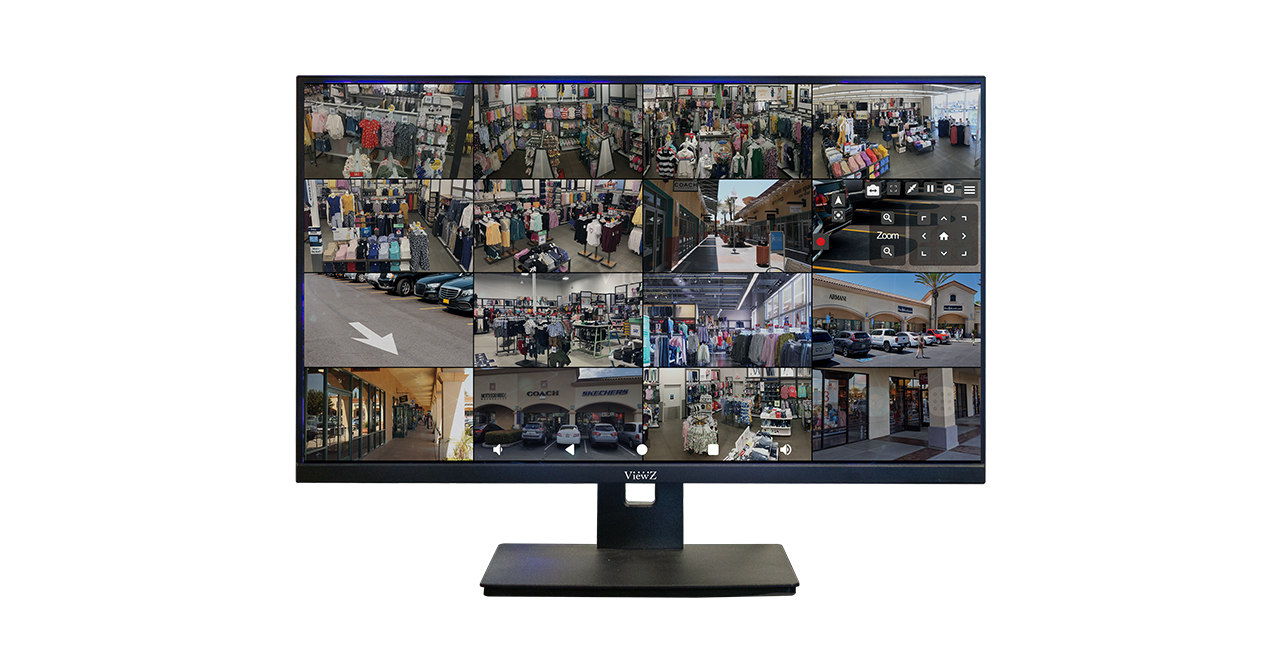

VZ-24IPM
The ViewZ IP Monitor with onboard Android OS connects to VMS/NVR or IP cameras for streaming live video. Eliminate the need for a client PC with a simple all-in-one solution. Install the android app of your choice and you’re good to go !
- Cost Effective Remote Viewing Alternative to PC
- Sequential and 16ch 1080p Multiview Modes – via Built-In ViewZ App
- Over 22,000 IP Camera Models Supported – via Built-In ViewZ App
- Built-In Android OS & Ethernet 10/100
- Designed to Run Android Apps
- Full HD 1080p Resolution
- 23.8” Full HD 1080p Resolution
- NDAA Compliant
Specification | Dimension | Download
Series : IPM | Key Features : IP Input Monitor Android IP NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-24IPM
- 23.8″ Flat Panel Widescreen LED “A” Commercial-Grade Monitor
- Sequential Viewing Mode Available (via ViewZ App)

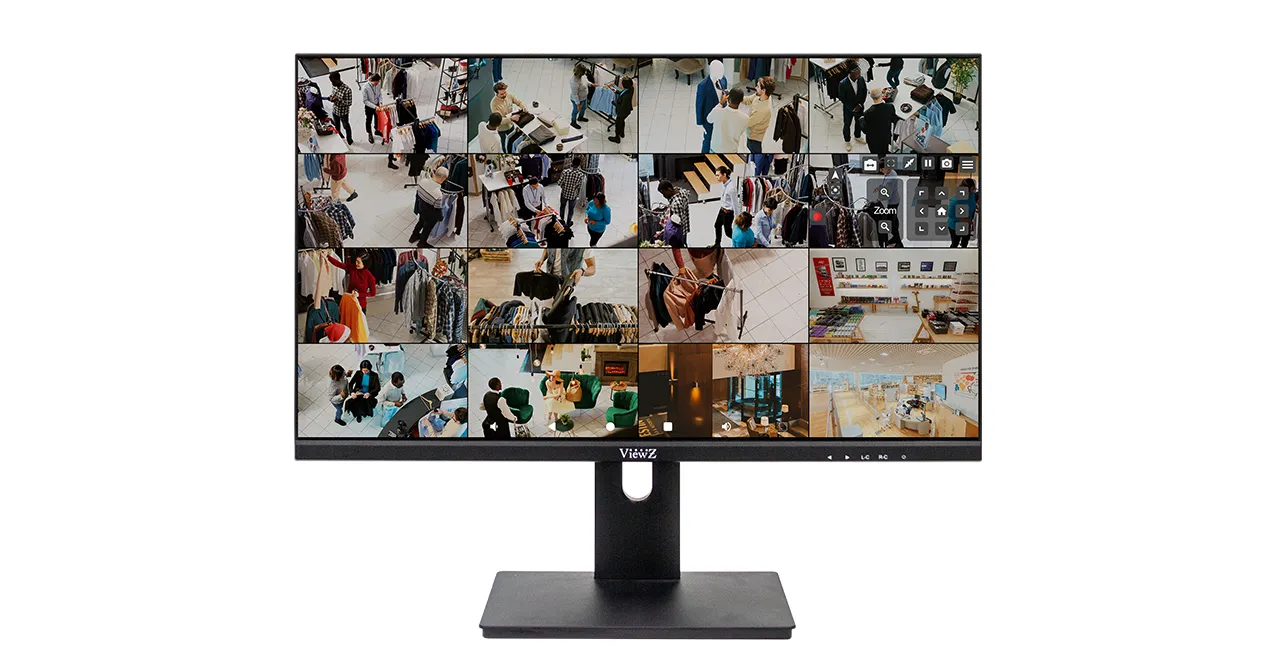

- Capable of 16ch 1080p Multiview Modes Available (1 / 2 / 3 / 4 / 6 / 9 / 12 / 16 via ViewZ App)
- Over 22,000 IP Camera Models Supported including ViewZ IP-PVM series
- Micro SD Card for recording
- One 10/100 Ethernet Port, USB Type-C, 2 USB Ports
- Ideal for Remote Viewing 1 – 16 Cameras
- Full HD 1920×1080 Resolution / 16:9 Ratio

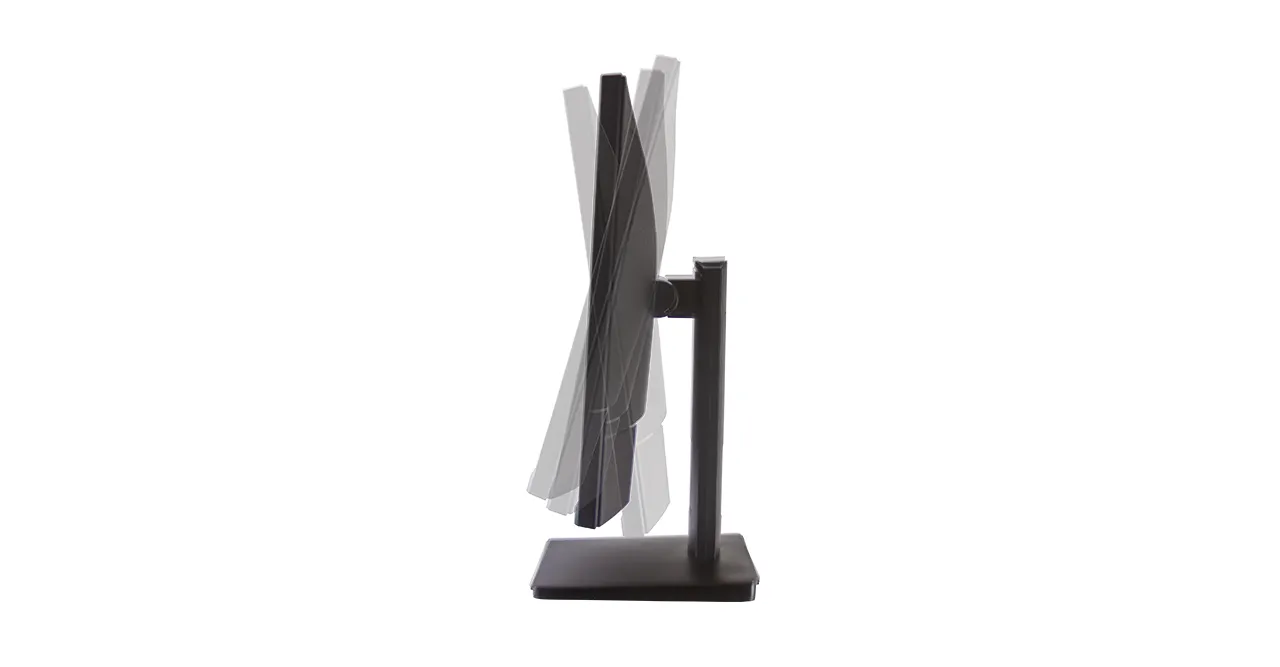

- Height Adjustable Stand (4 inch)
- Auto Power / Source Recovery
- VESA 100×100 Wall Mount Support
- PoE ++ (Type 3) 52V DC
- DC 12V, 4A (AC100 ~ 240V [50/60Hz] with DC Adaptor)
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 23.8″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2745 mm x 0.2745 mm |
| Brightness | 250cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 14 ms |
Interface
| Ethernet 10/100 | 1 |
| Micro SD In | 1 |
| USB 2.0 In (Type-A) | 1 |
| USB 3.0 In (Type-A) | 1 |
| USB In (Type-C) | 1 |
| HDMI In (Test Purpose Only) | 1 |
| HDMI Out | 1 |
| Audio Out | 1 |
| I/O (RESET) | 1 |
Verified VMS APPs
| VMS Provider | Exacq, Genetec, Avigilon, Milestone, I3international and more |
Special Features
| Sequential Viewing Mode | Available |
| Multi Channel Viewing Modes | 1 / 2 / 3 / 4 / 6 / 9 / 12 / 16 |
| Multi-Lingual Language | English, German, Spanish, French, Italian, Portuguese, Netherlander |
Dimensions
| Outline Dimension (W x H x D) | 21.31 x 16.2 x 1.53” / 541.4 x 411.7 x 39 mm |
| Net Weight | 8.04 lbs / 3.65 kg |
| Gross Weight | 9.92 lbs / 4.5k g |
Mount
| Vesa | 100 mm x 100 mm / M4 x L8 mm |
Android Board Spec
| Android OS | Ver. 12.0. |
| CPU | Octa Core, Quad Cortex-A76 & A55, 2.1 GHz |
| RAM | 8 GB DDR4 |
| Storage | 32 GB (NAND-Flash) |
| External Storage | Micro SD up to 32GB / USB 2.0 up to 2TB |
| WiFi + BT | IEEE 802.11 a/b/g/n/ac/ax, Dual WiFi antenna, Bluetooth BT5.2, Bluetooth v2.1+EDR |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | PoE ++ (Type 3) 52V DC & DC 12V, 4A (AC 100 ~ 240V[50/60Hz]) |
| Power – Consumption | ≤ 32 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Operating Humidity | 5 ~ 90% RHC |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM02-A |
| Compatible Mounts – Pole | VZ-SCM-SQ, VZ-SCM-S |
| Compatible Mounts – Ceiling | VZ-CMKiT-01 |
| Regulation | FCC(A), CE, NDAA |
| Package Include | Stand (1set), Manual (1pc), Power Cable (1pc), Remote Control (1pc) |
Product Dimension & Weight
Click below to enlarge
