VZ-015MCT
The monitor comes with a 10-point touch screen and 1000 nits high brightness screen panel. The interface support a wide range of customisation options in addition to the existing types such as HDMI, VGA & AV. The front panel of VZ-015MCT has IP65 front panel design in a great convenience for installation on methods and applications.
- 15.6” Full HD 1080p LED Panel
- Auto Dimming Supported
- Metal Housing with Dust and Water Proof Rating IP65 (Front)
- 10-Point Capacitive Touch Screen
- Supports HDR & Marker
- Supports Scan, Aspect, Freeze & Image Flip
- HDMI x1, VGA x1, AV x1
- Standard Accessories
- NDAA Compliant
Specification | Dimension | Download
Series : MCT | Key Features : Touch Screen NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-015MCT
- 15.6” Full HD 1080p LED Panel
- Auto Dimming Supported
- Metal Housing with Dust and Water Proof Rating IP65 (Front)
- 10-Point Capacitive Touch Screen
- Support HDR & Marker
- Support Scan, Aspect, Freeze & Image Flip
- HDMI x1, VGA x1, AV x1
- Standard Accessories
- NDAA Compliant
Display
| Screen Size | 15.6″ (IPS Panel) |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | TBD |
| Brightness | 1000 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 M (8bit) |
Interface
| HDMI (1.4) In | 1 |
| VGA In | 1 |
| AV In | 1 |
| Audio In | 1 |
Audio
| Built in Speaker | 2 |
| Ear Jack | 1 (3.5 mm – 2ch 48K Hz / 24 bit) |
Touch
| Sensor Type | Capacitive |
| Infrared Touch | 10 Points |
SPECIAL FEATURES
| Water Proof | Front Panel IP x4 |
| Dust Proof | Front Panel IP 6x |
Input Format
| 3840 x 2160p | 24 / 25 / 30 Hz |
| 1920 x 1080p | 24 / 25 / 30 / 50 / 60 Hz |
| 1920 x 1080i | 50 / 60 Hz |
| 1280 x 720p | 50 / 60 Hz |
Dimensions & Weight
| Outline Dimension (W x H x D) | 16.06 x 10.19 x 1.43” / 408 x 259 x 36.5 mm |
| Net Weight | 6.39 lbs / 2.9 kg |
General Summary
| Power – Electrical Ratings | DC 12 ~ 24V |
| Power – Consumption | ≤ 24.5 W (15V) |
| Warranty | 2 Years |
| Operating Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Humidity at High Operating Temperature | 90% RH |
| Storage Temperature | -22 ~ 158°F / -30 ~ 70°C |

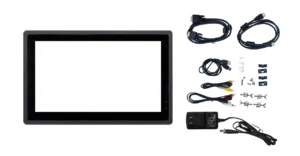

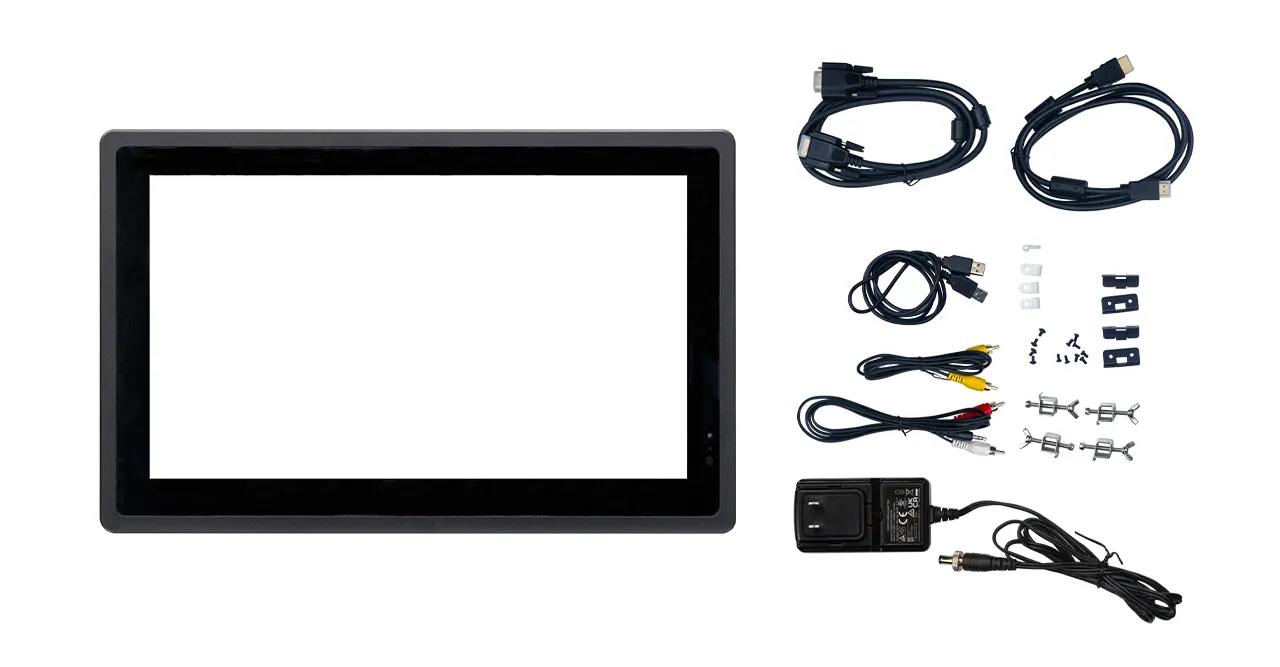

| Accessories | Monitor x1, DC 12V Power Adapter x1, AC Power Cable x1, VGA Cable (5ft) x1, HDMI Cable (5ft) x1, AV Cable (5ft) x1, AV Audio Cable (5ft) x1, Cable Clamp x4, Mount Bracket x4 |
