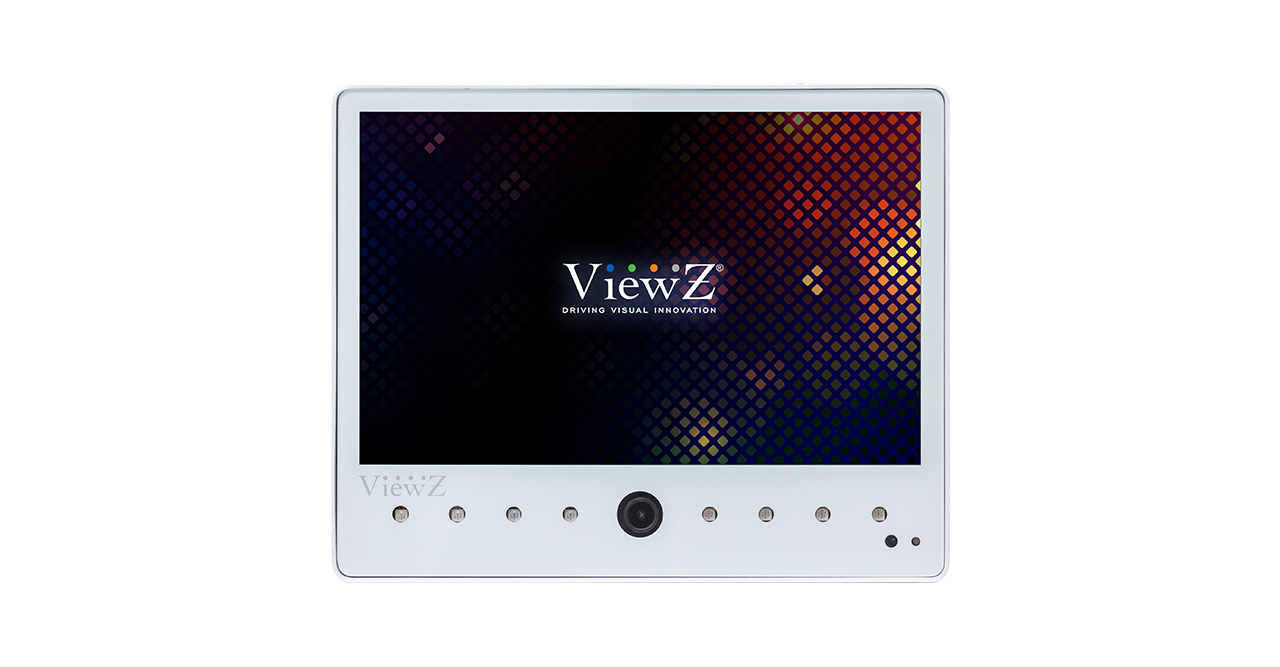

VZ-PVM-A1W4/A1B4-N

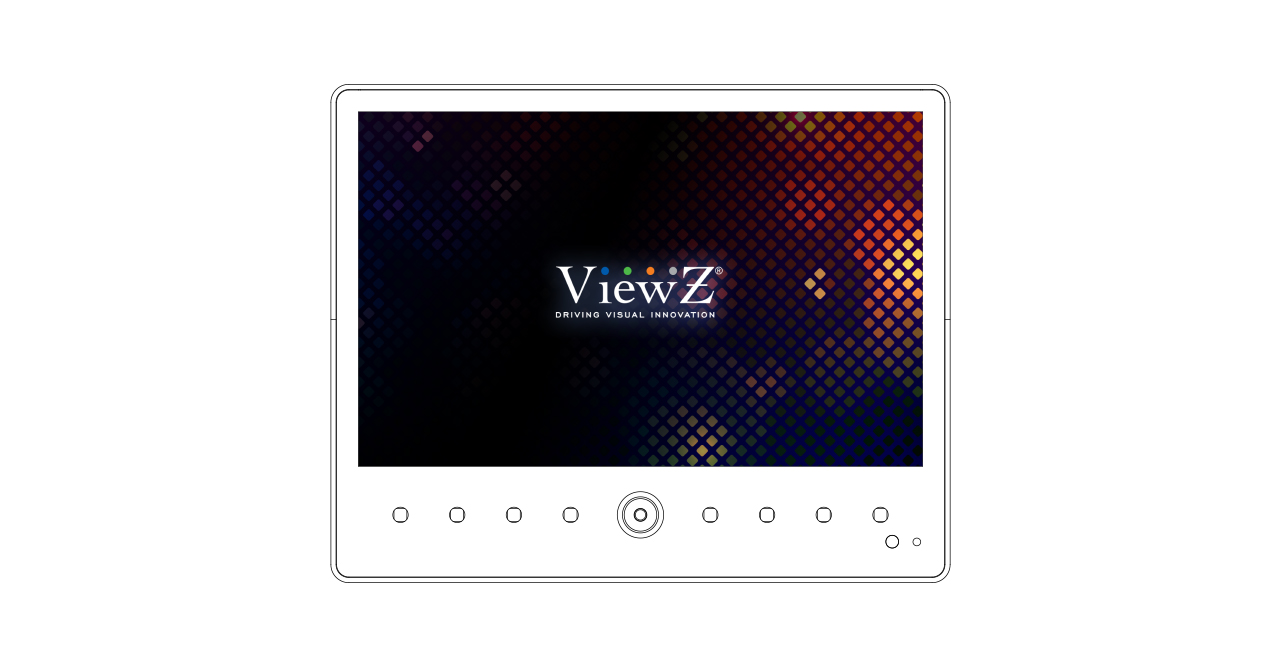

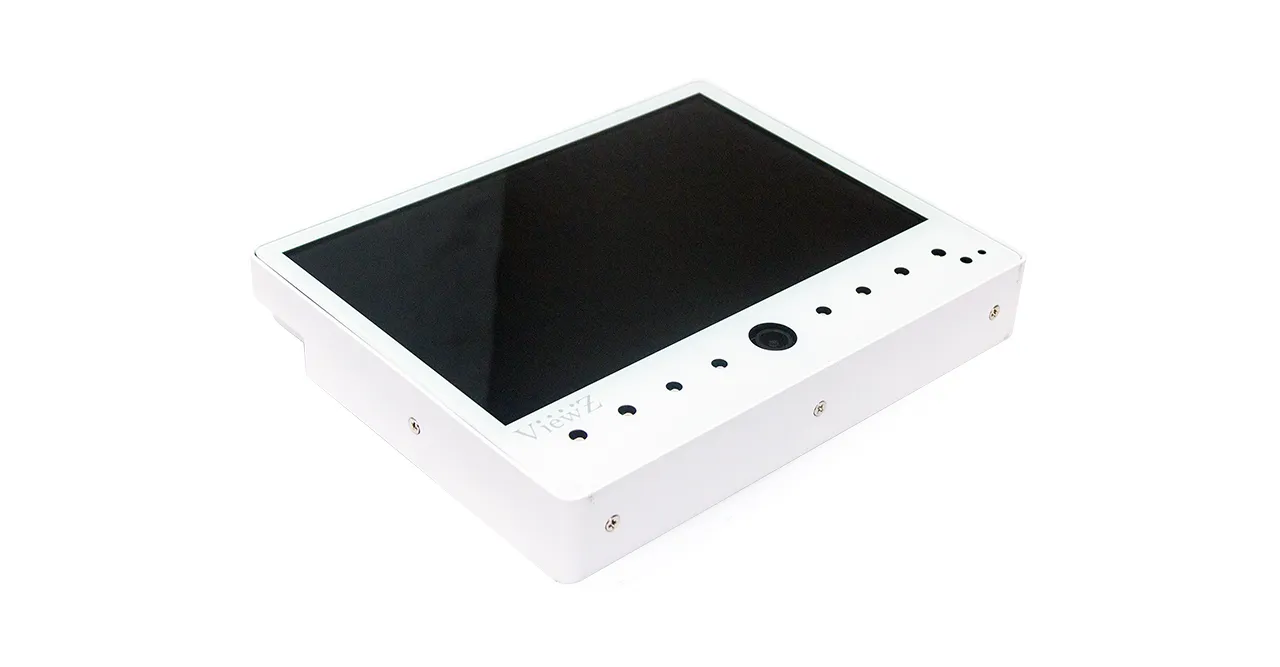

The new 10`` AI IP public view monitor from ViewZ boasts an impressive array of features such as PoE power operation, built-in 2.0 MP camera, built-in media player for advertising and industry proven grade ``A`` commercial panel for 24/7 operation.
- 10.1” Mega Pixel Full HD 1080p IP Public View Monitor
- Onvif Profile-S Compliant & NDAA Compliant

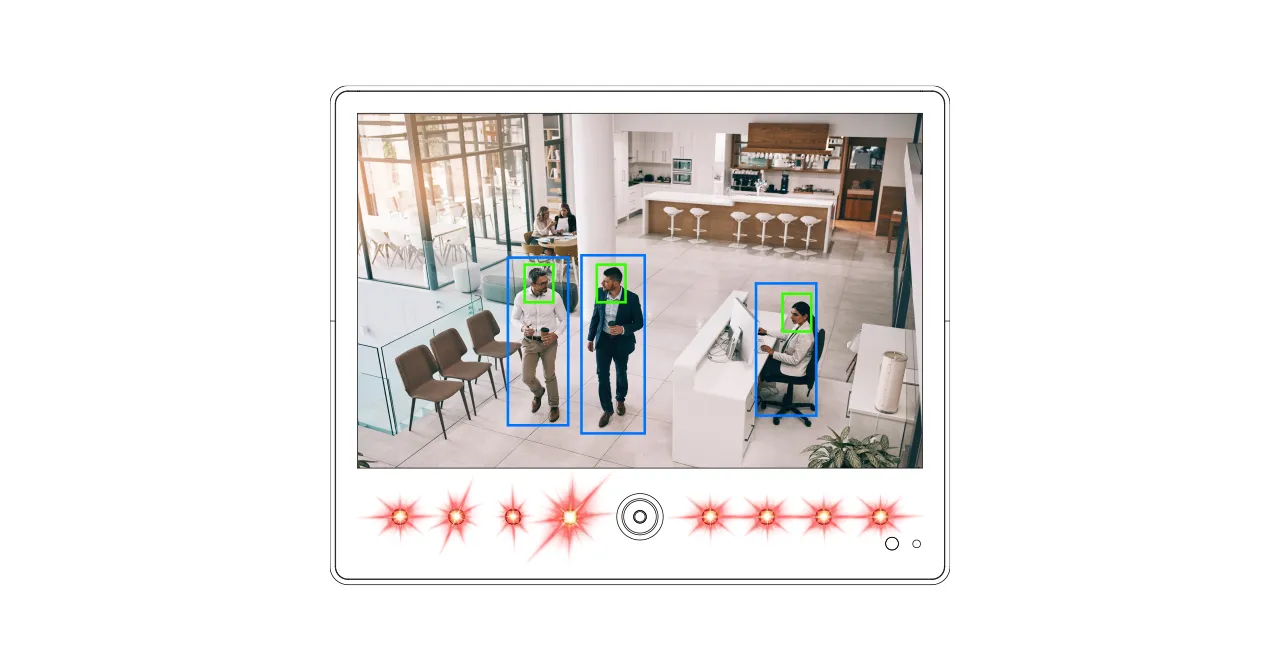

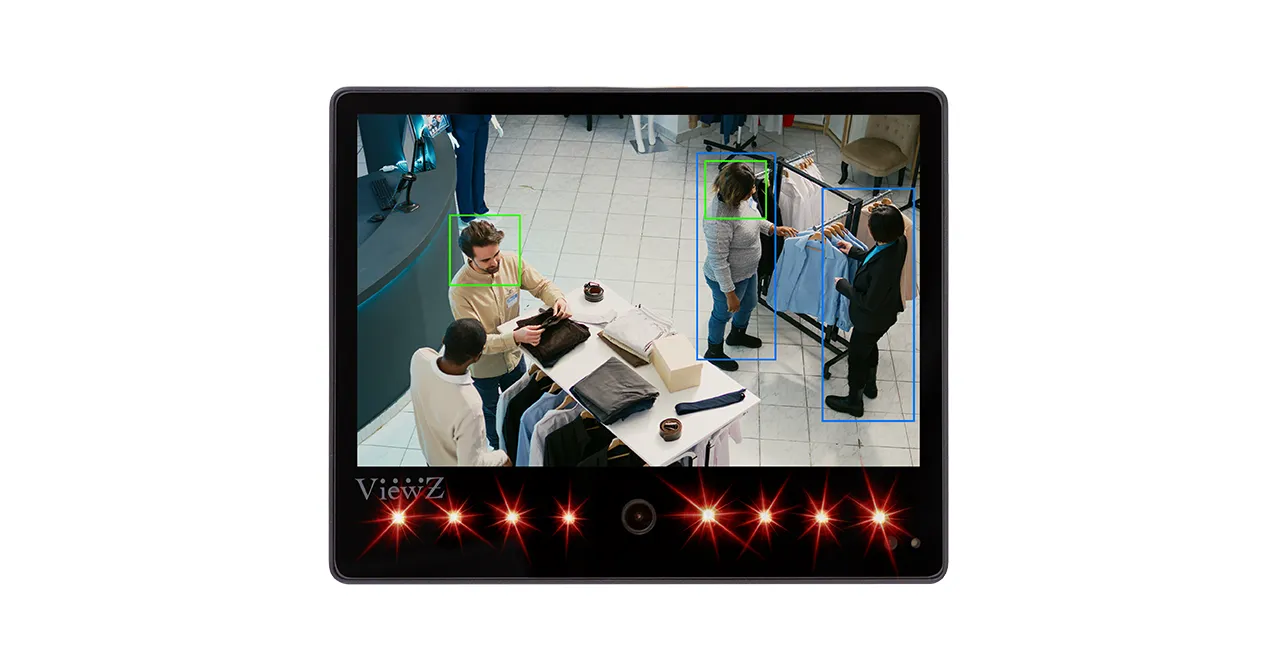

- Gun Detection / Face Detection (Display Detection Boxes)
- People Count / Emergency Alert / Customized Banner

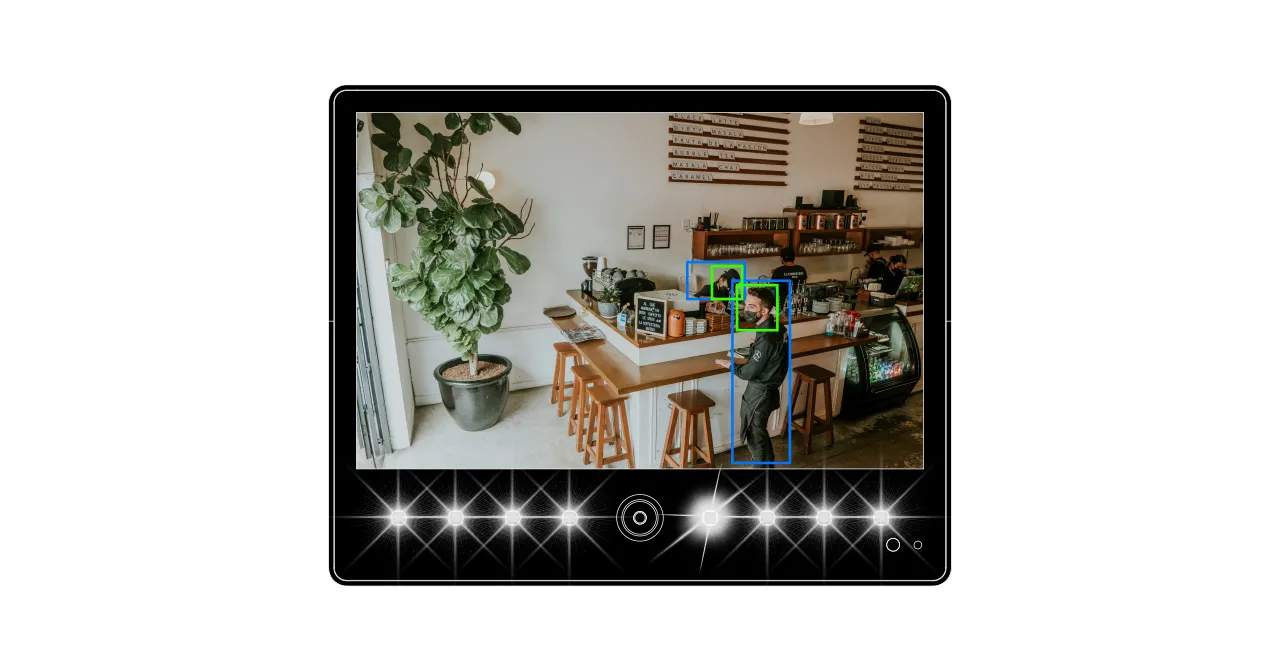

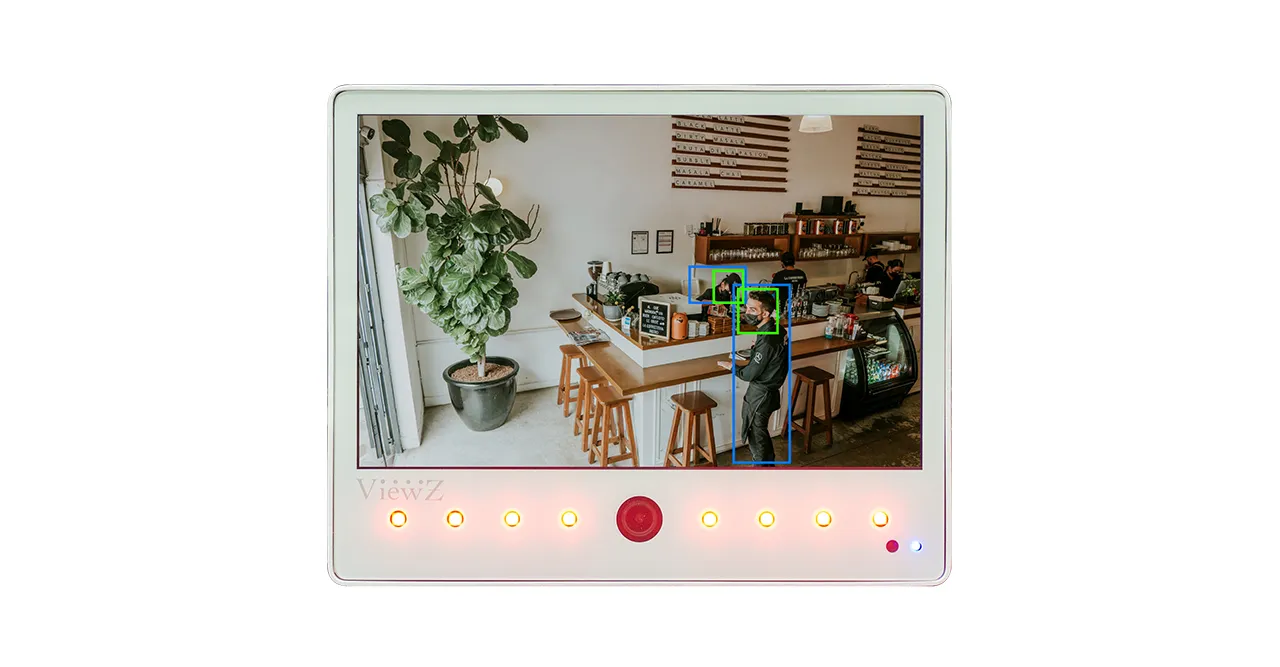

- 8 RGBW LED Flashing Lights
- Recording Available with Micro SD
- PoE Protocol: IEEE 802.3 bt
- Protective Glass & IMS (CMS) Software to manage Alert & Data.
- Video Obstruction / Door Open / Video Loss / Power Loss Alarm
- Built-in 2 MP IP Camera, Built-in Media Player
- Blinking Message – “Recording in Progress”
- Auto Power / Source Recovery
- Built to run 24/7/365
Specification | Dimension | Spec & Manual
Series : IPPVM-N | Key Features : IP P.o.E. Built-in Media Player NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-PVM-A1__N
- 10.1” Mega Pixel IP HD Resolution
- Onvif Profile S Compliant
- Gun Detection & Face Detection (Display Detection Boxes)
- People Count, Emergency Alert & Customized Banner
- IMS (CMS) Software to manage Alert & etc.
- On-Screen Banner Overlay Message “Recording”
- Video Obstruction / Door Open Alarm
- Video Loss / Power Loss Alarm
- Auto Power & Source Recovery
- Time Interval Based Source Switching
- Camera Recording Available with Micro SD
- Built-in 2 MP IP Camera, Built-in Media Player
- PoE Protocol: IEEE 802.3 AF/AT
- NDAA Compliant
- Built to run 24/7/365
- 3-Year Warranty
Ordering Information : Parts #
| Model Features | Family | Series | Size | Color | Voltage | |
| 10″, Black, PoE | VZ-PVM- | A | 1 | B | 4 | N |
| 10″, White, PoE | VZ-PVM- | A | 1 | W | 4 | N |
- Series: Z (HD PVM) , I (IP PVM) , A (AI PVM)
- Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch) , 5 (43inch)
- Color: B (Black) , W (White)
- Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC 110V / DC 24V), 4 (PoE)
Display
| Screen Size | 10.1″ |
| Max Resolution | 1280 x 800 @60Hz |
| Pixel Pitch | 0.1695 mm x 0.1695 mm |
| Brightness | 350cd/m²(Typical) |
| Contrast Ratio | 900 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million |
| Response Time | < 30 ms |

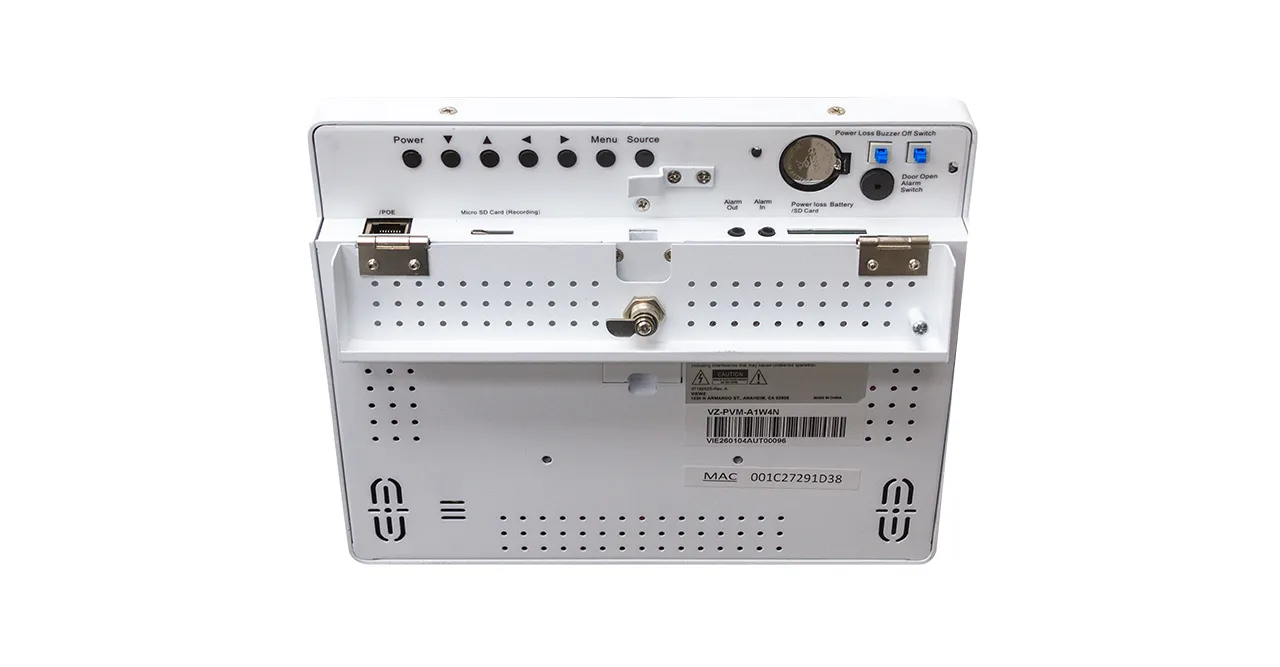

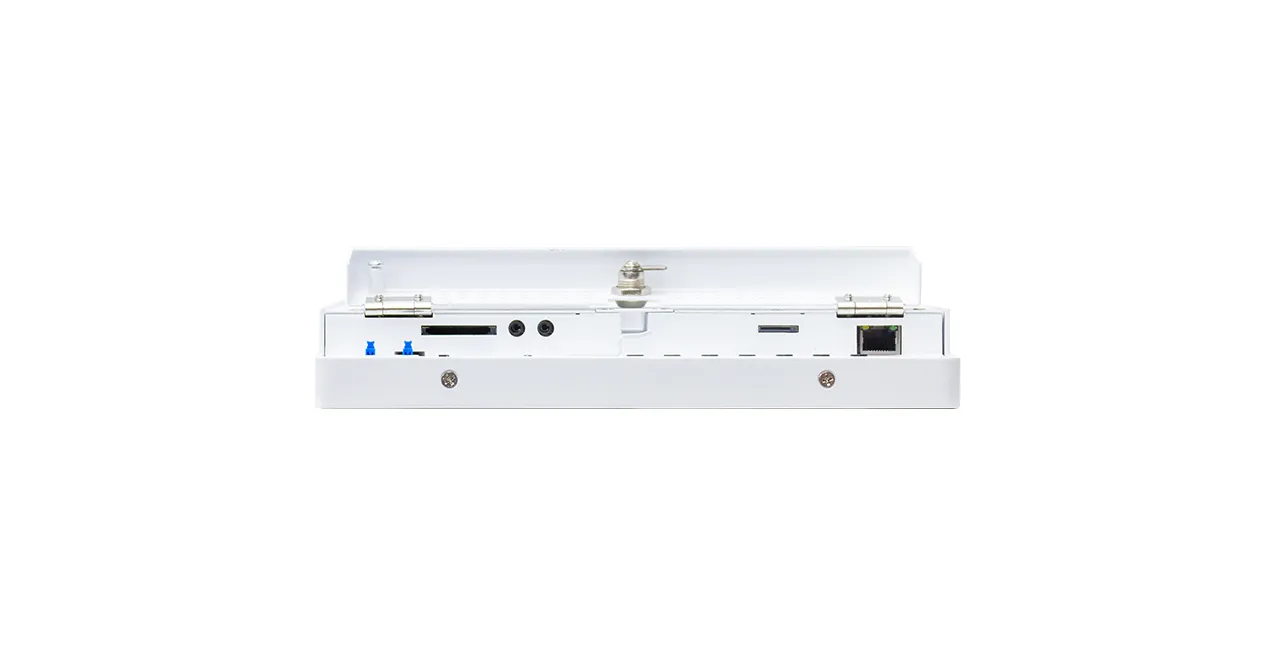

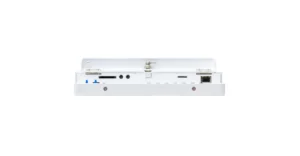

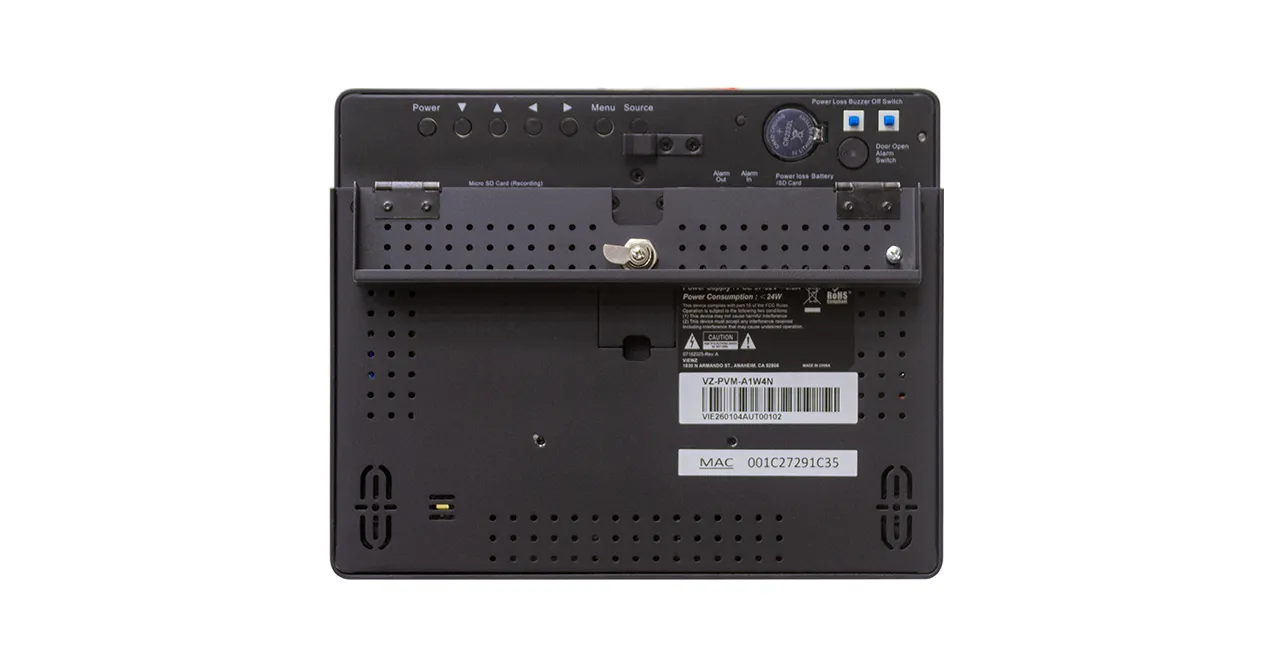

Interface
| RJ-45 for IP Camera & Power | 1 |
| USB / SD Card In (Media Player) | 1 / 1 |
| Micro SD In (Recording) | 1 |
IP Features
| Ethernet Interface | 10/100 Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
Special Features
| Gun, Face & Full Body Detection | Support |
| People Count & Emergency Alert | Support |
| On-Screen Banner & Customizing Banner | Support |
| Video Obstruction & Door Open Alarm | Support |
| Video & Power Loss Alarm | Support |
| Multi-Lingual Language | English, Spanish, French, Portuguese, Japanese |
Dimensions
| Outline Dimension (W x H x D) | 9.45” x 7.61” x 1.39” / 240.2 mm x 193.4 mm x 35.5 mm |
| Net Weight | 4.4 lbs / 2.0 kg |
| Gross Weight | 5.51 lbs / 2.5 kg |
Mount
| Vesa | 75mm x 75mm / M4 x L8 Screws |
Camera
| Sensor Type | 1/3″ 2.0M SONY IMX307 / NT98529 |
| Lens | 2.8mm Board Lens |
| Active Pixels | 1920(H) x 1080p(V) 30p |
| Camera Type | 2.0 Mega Pixel IP Camera |
| Function | 2D/3D DNR, HLC/BLC, Defog, WDR, Gain, White Balance, Noise Reduction, Aisle Mode, Smart IR, Mirror, Privacy Masking, True WDR, Digital Zoom, Day/Night (Auto ICR), Region of Interest (Off/On, 8zone & Rectangle) |
| Video Compression | H.265, H.264, MJPEG, CBR, VBR support |
| Video Out | 1ch RJ-45 output |
| Gun / Face / Full Body / Motion Detection | Support |
| Network Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| Web Application | Windows Edge / Firefox / Chrome |
| MAX. User Access | 10 Users |
| Recording Capacity | TF Card (EXT4 format, MAX 256G) |
| Recording Capacity – 2MP – H.265 w/256G | 30fps / 11days & 15fps / 15days |
| Recording Capacity – 2MP – H.264 w/256G | 30fps / 5days & 15fps / 7days |
| Intelligent Detection | Smart Motion, Single/Double Line Crossing, Multi-Loitering, Wrong Way, General Parameters, Single Bad, Gun Detect, People Count, Intrusion |
| Integration Protocol | ONVIF 22.06 (supported), SDK, CGI |
Media Card Reader
| Support Type | Photo, Music, Video |
| External Storage | Support SD/SDHC CARD (Max.128GB), USB 2.0 HOST |
| Video File Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Video Resolution | 1080P @60/50Hz, 1080i @60/50Hz, 720P @60/50Hz |
| Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image File Format | JPEG, TIF, PNG, BMP |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
General Summary

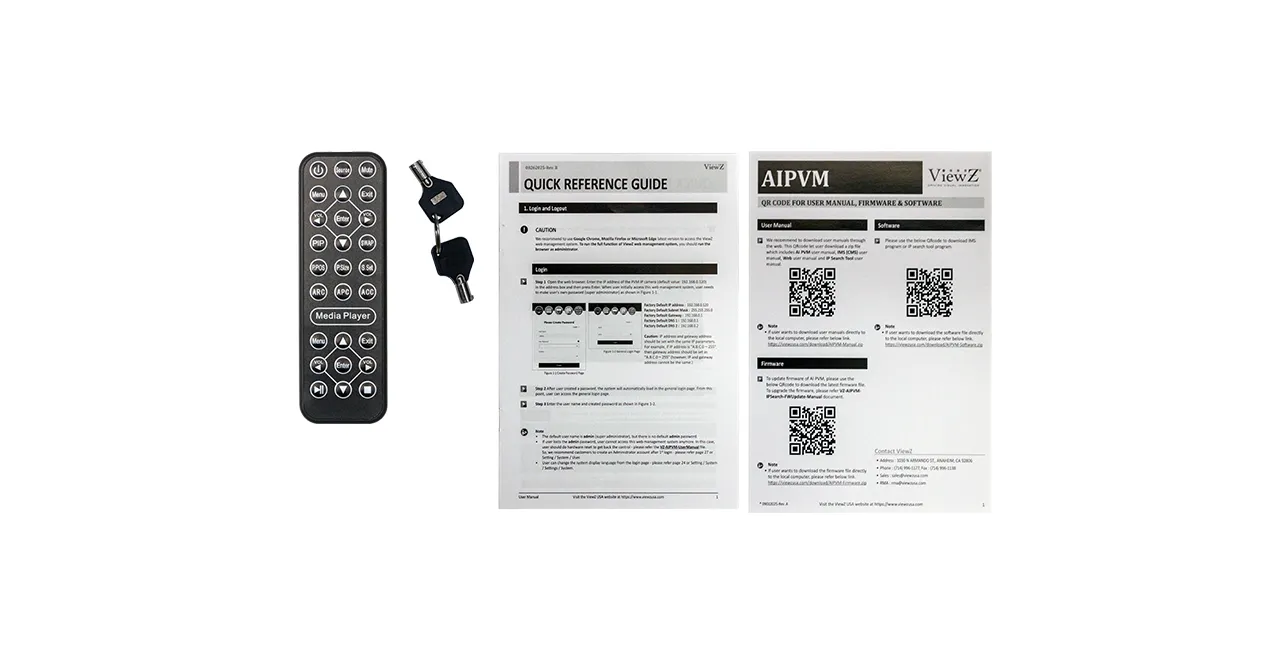

| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | PoE (37 – 52V) |
| Power – Consumption | ≤ 24 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CM308 |
| Compatible Mounts – Pole | VZ-SCM, VZ-SM01 |
| Compatible PoE | VZ-CSE1202 |
| Regulation | FCC(A), CE, NDAA |

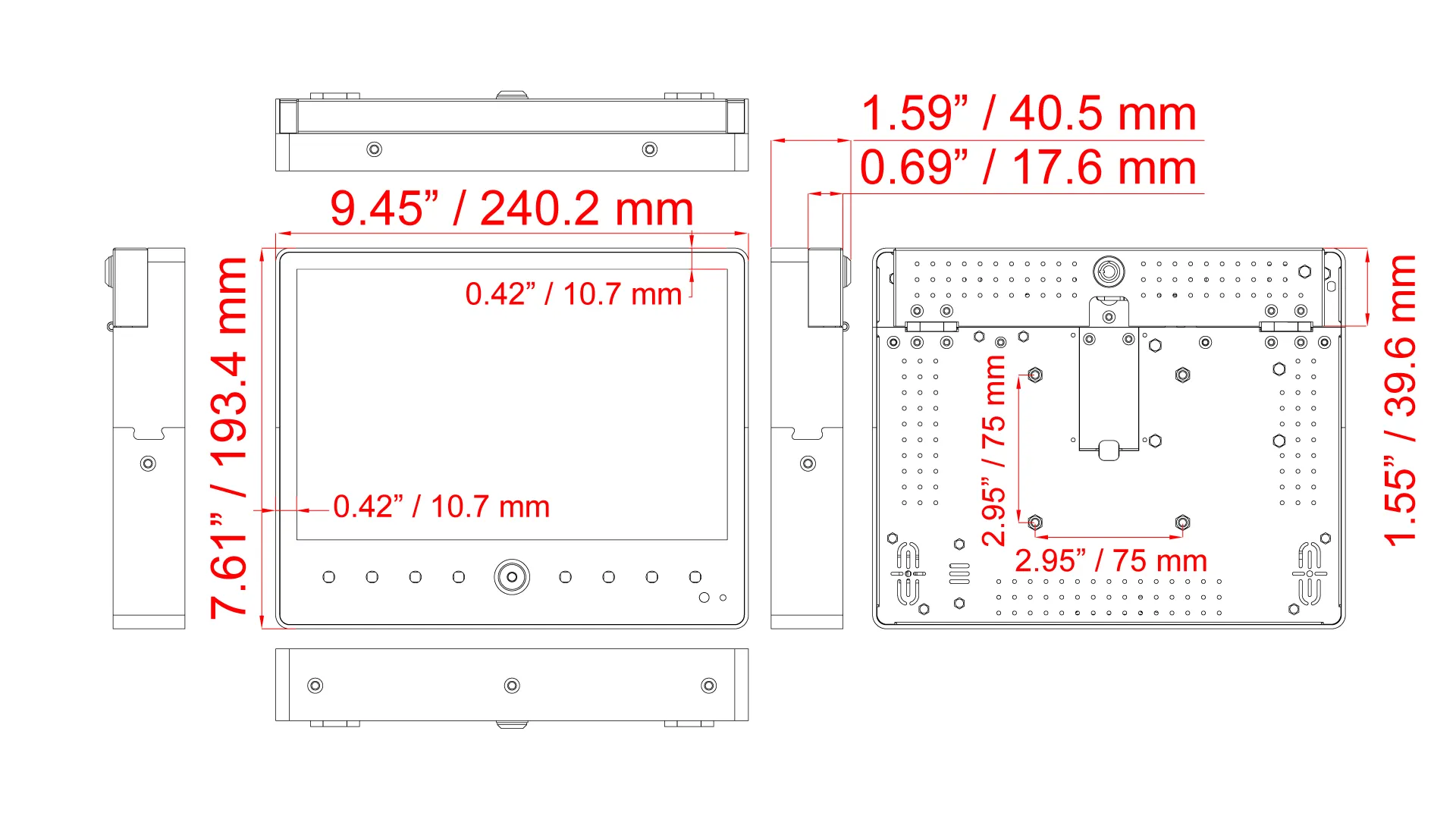

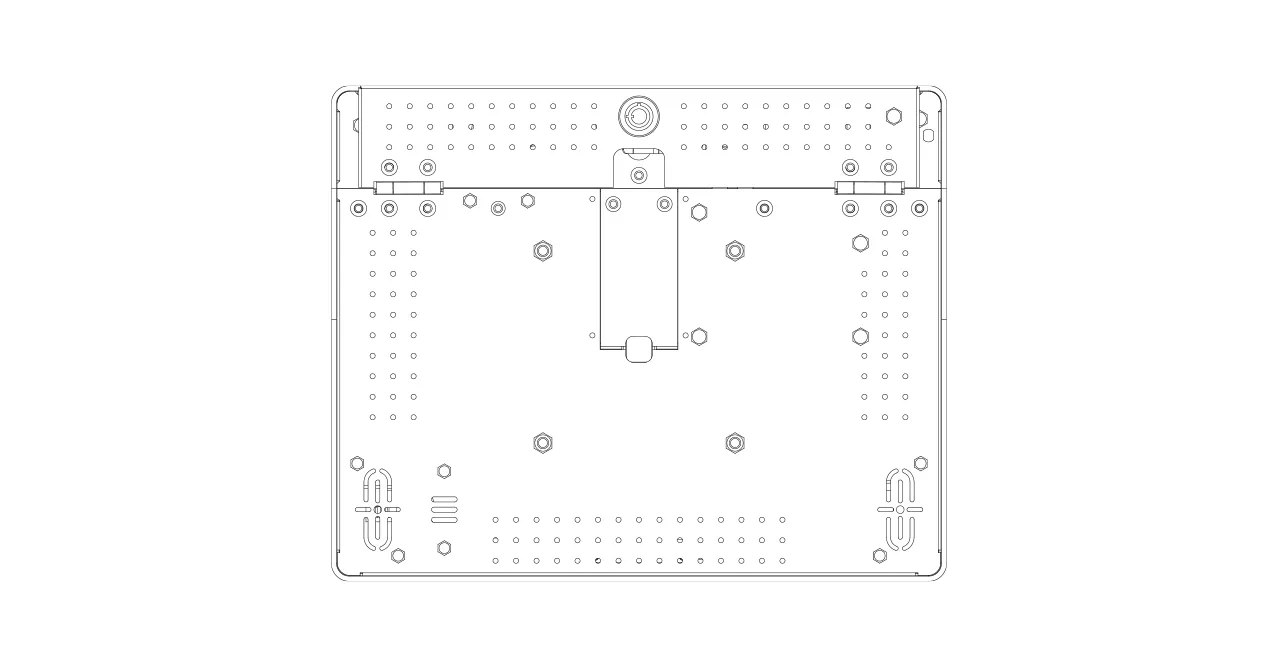

Product Dimension & Weight
Click below to enlarge
