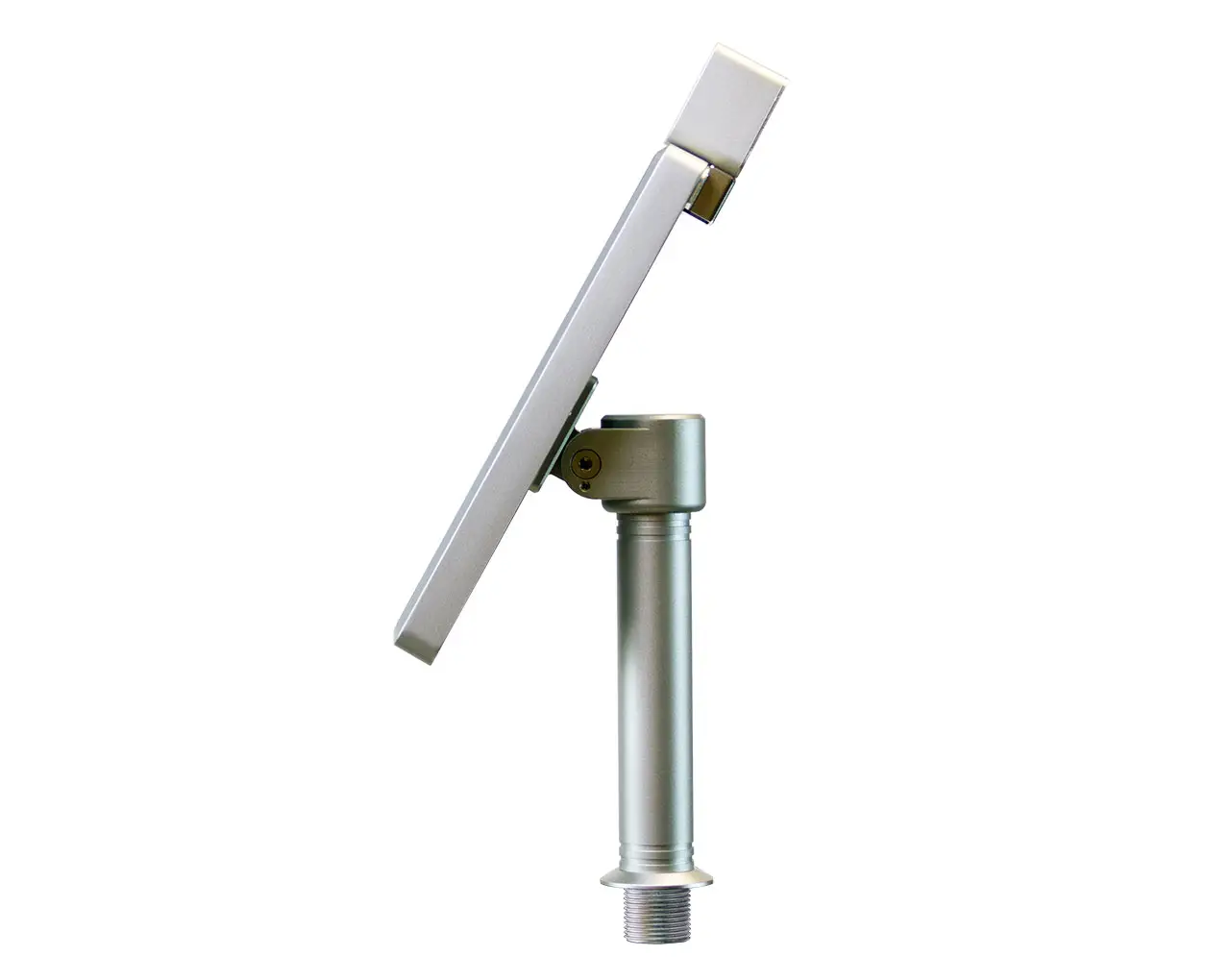

vz7tims29
vz7timfs10
vz7tims24

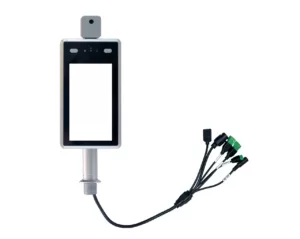

vz7tims23
vz7timfs11

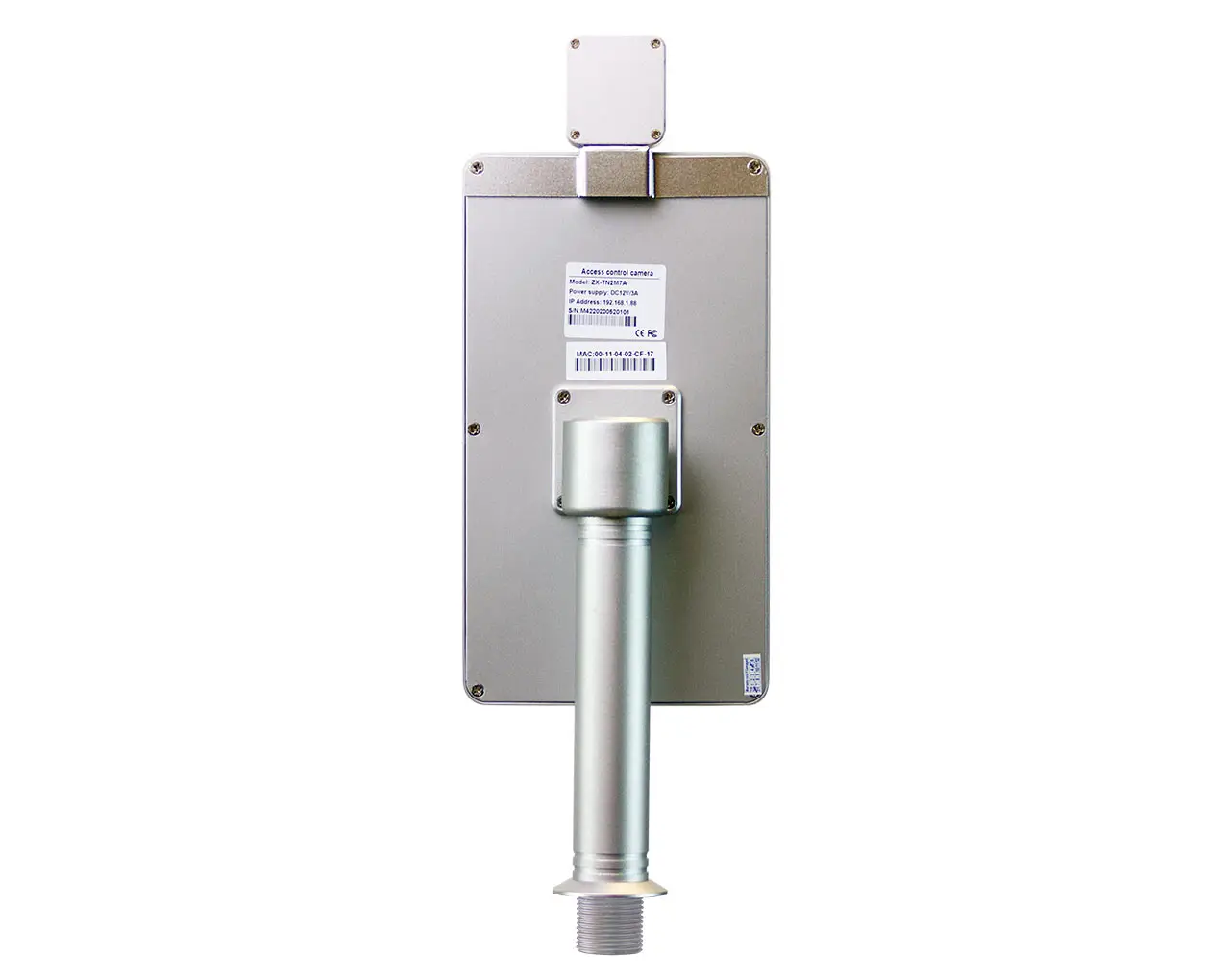

vz7tims22
vz7timfs13

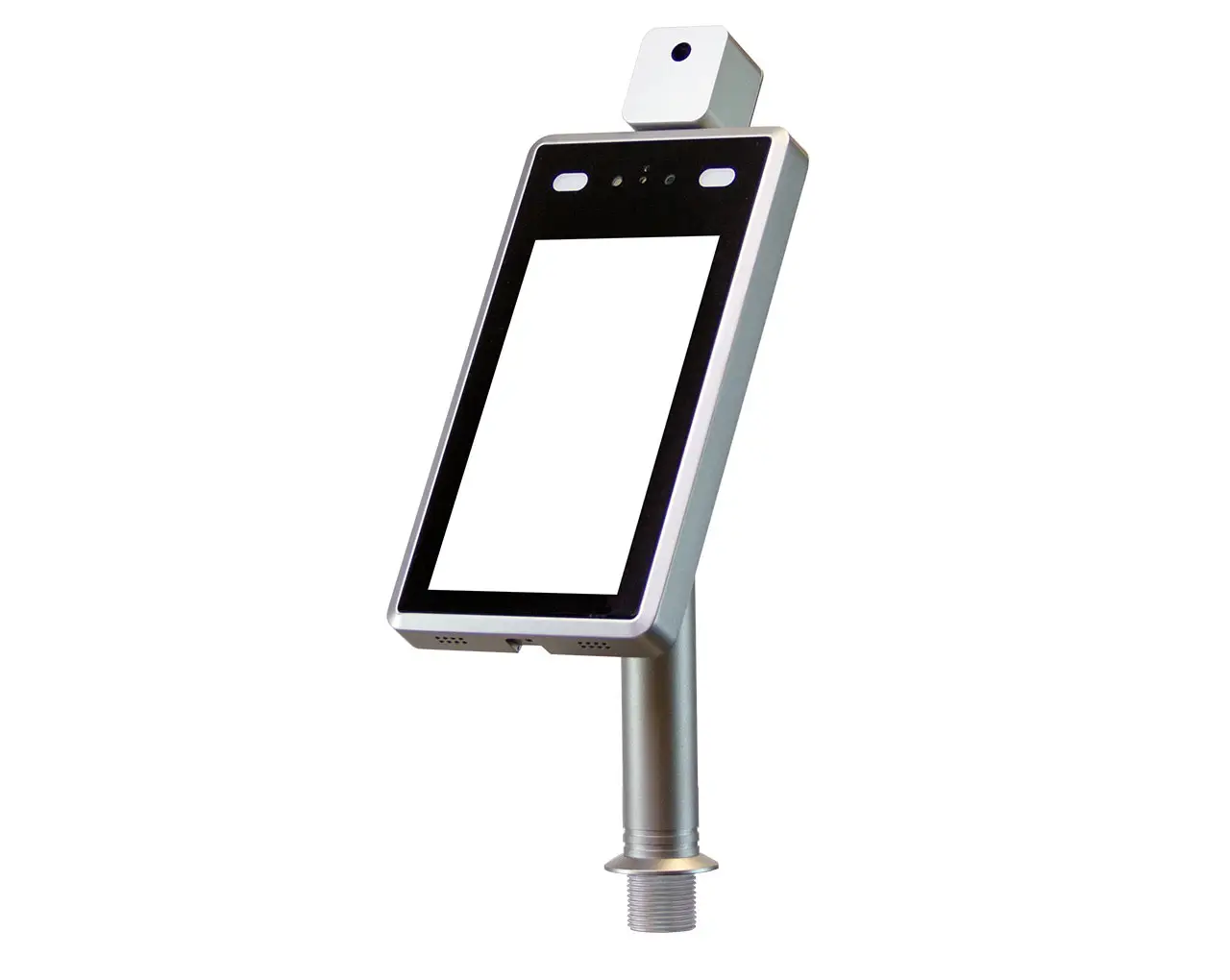

vz7tims28
vz7timfs12

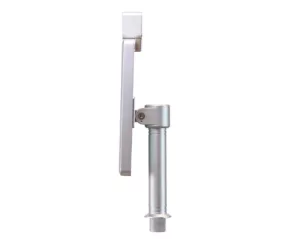

vz7tims25
vz7tims26
vz7tims27
vz7timfs15
vz7timfs14
vz7tims21 vz7tims29 vz7timfs10 vz7tims24 vz7tims23 vz7timfs11 vz7tims22 vz7timfs13 vz7tims28 vz7timfs12 vz7tims25 vz7tims26 vz7tims27 vz7timfs15 vz7timfs14

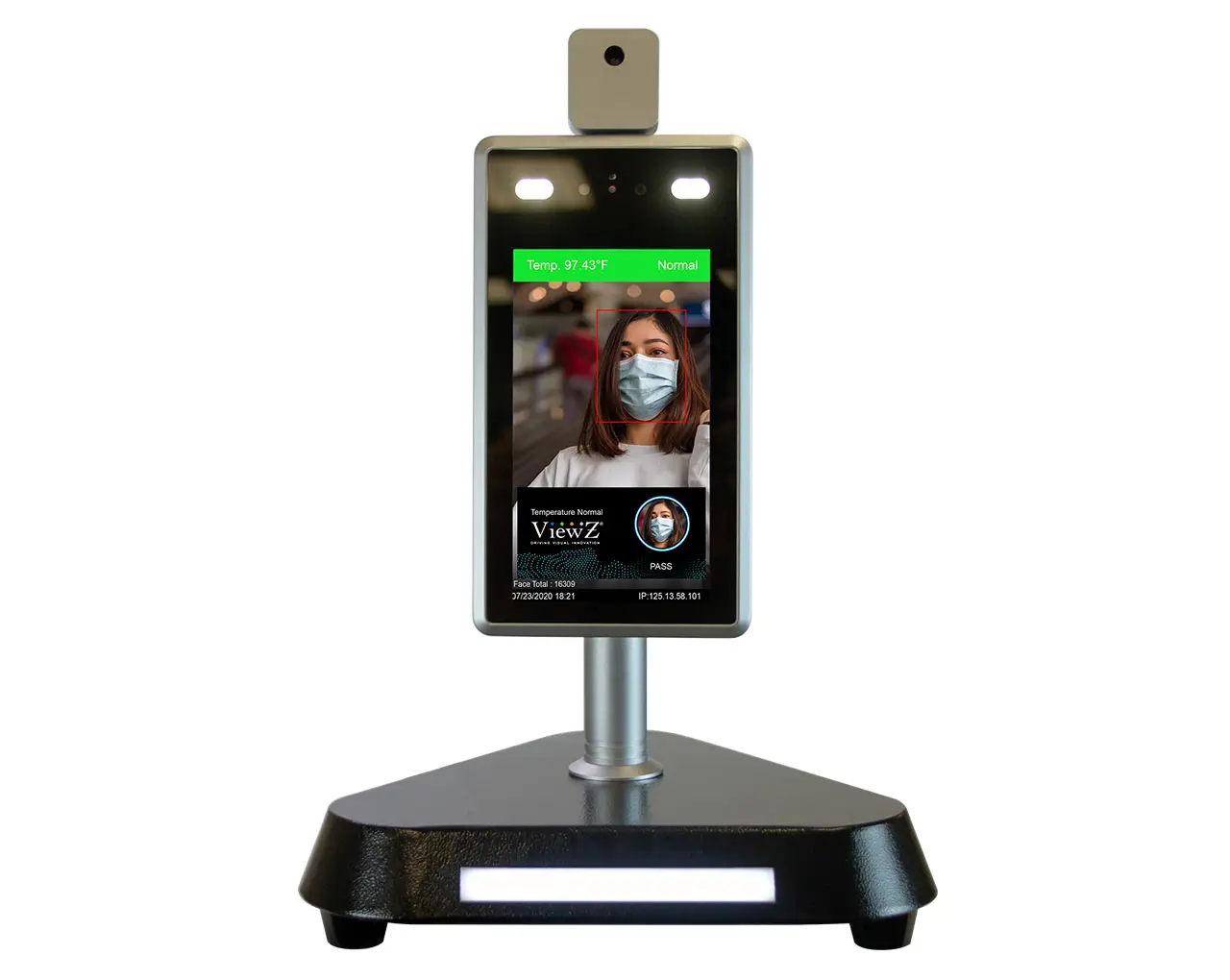

Face Recognition & Temperature Measurement Monitor

  • Non-contact Automatic Face Temperature Detection Monitor
  • Temperature Measurement Range 86~113°F Accuracy ± 0.54°F
  • Registers and Records Information without the need of Manual Operation
  • Automatically Identifies Unmasked Personnel and Provides Real-time Warning
  • Supports Mid-range Temperature Measurement and Real-time Warning at High Temperature
  • Supports Wiegand Output – WG26 & WG34 format

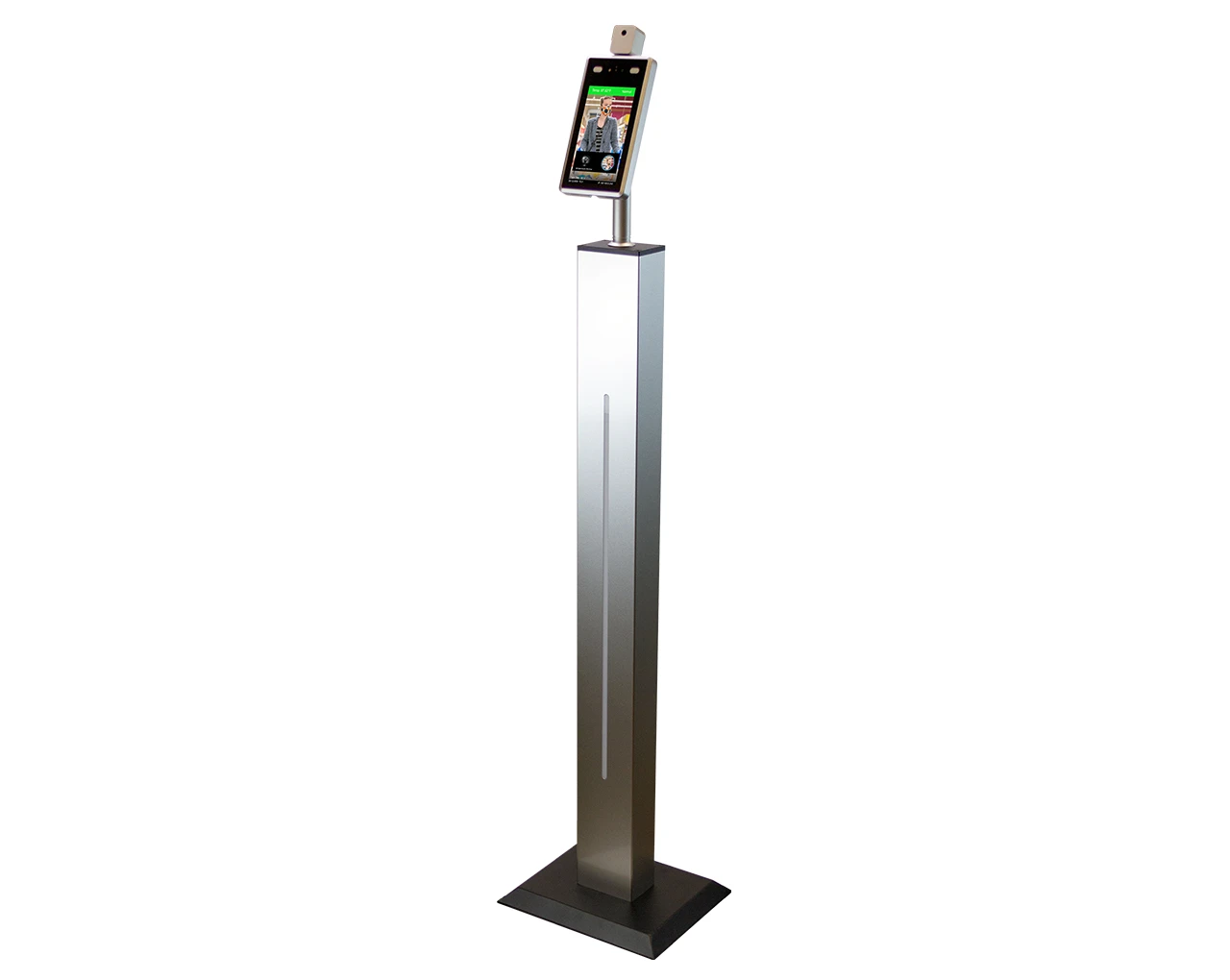

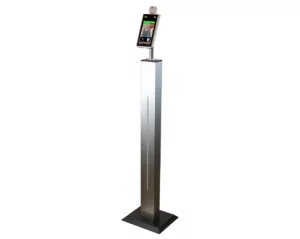

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-7TIM-S
  • Non-contact Automatic Face Temperature Detection Monitor
  • Temperature Measurement Range 86~113°F Accuracy ± 0.54°F
  • Automatically Identifies Unmasked Personnel and Provides Real-time Warning
  • Registers and Records Information without the need of Manual Operation
  • Supports Mid-range Temperature Measurement and Real-time Warning at High Temperature
  • Unique Face Recognition Algorithm to accurately Recognize Faces – Face Recognition Time <500ms
  • Supports Binocular Live Detection
  • Supports Wiegand Output – WG26 & WG34 format
  • Supports Alarm System
  • IP34 Dust & Water Proof

Presentation Video

Display

Screen Size 7″


Interface

Ethernet 10/100 1 (IPC Out)
USB 1
Wiegand (IN/OUT) N/A | 1 (WG26 & WG34)
Alarm 1 ch (Relay Output)


Face Recognition

Height Range 3.93 ~ 7.2 ft / 1.2 ~ 2.2 m
Distance Range 1.64 ~ 6.56 ft / 0.5 ~ 2.0 m
Recognition Time < 500 ms
Viewing Angle Ver. ± 40°
Function Support 22,400 Face DB & 100,000 Records


Temperature Measurement

Temperature Detection Range 86 ~ 113 °F / 30 ~ 45 °C
Temperature Detection Accuracy 0.54 °F / 0.3 °C
Distance 0.98 ~ 2.62 ft / 0.3 ~ 0.8 m
Response Time < 300 ms


Hardware Spec

Chipset Hi3516DV300
System Linux OS
RAM 16GB EMMC


Camera Spec

Camera Type 2 Mega Pixel Binocular w/ Live Detection
Lens 4.5 mm
Image Sensor 1/2.7” CMOS
Total / Effect Pixel 1920(H) x 1080p
Min. lux Color 0.01Lux @F1.2(ICR), B/W 0.001Lux @F1.2
SNR ≥ 50 db (AGC Off)
WDR ≥ 80 db


Dimensions & Weight

Outline Dimension (W x H x D) 4.86” x 14.22” x 3.3” / 123.5 x 361.3 x 84 mm
Net Weight 4.62 lbs / 2.1 kg
Gross Weight 5.5 lbs / 2.5 kg


General Summary

Power – Electrical Ratings DC 12V, 3.0 A (AC100 ~ 240V[50/60Hz])
Power – Consumption 20 W (Max)
Operating Temperature 32°F ~ 122°F / 0°C ~ 50°C
Operating Humidity 5% ~ 90% RH


Product Dimension & Weight
