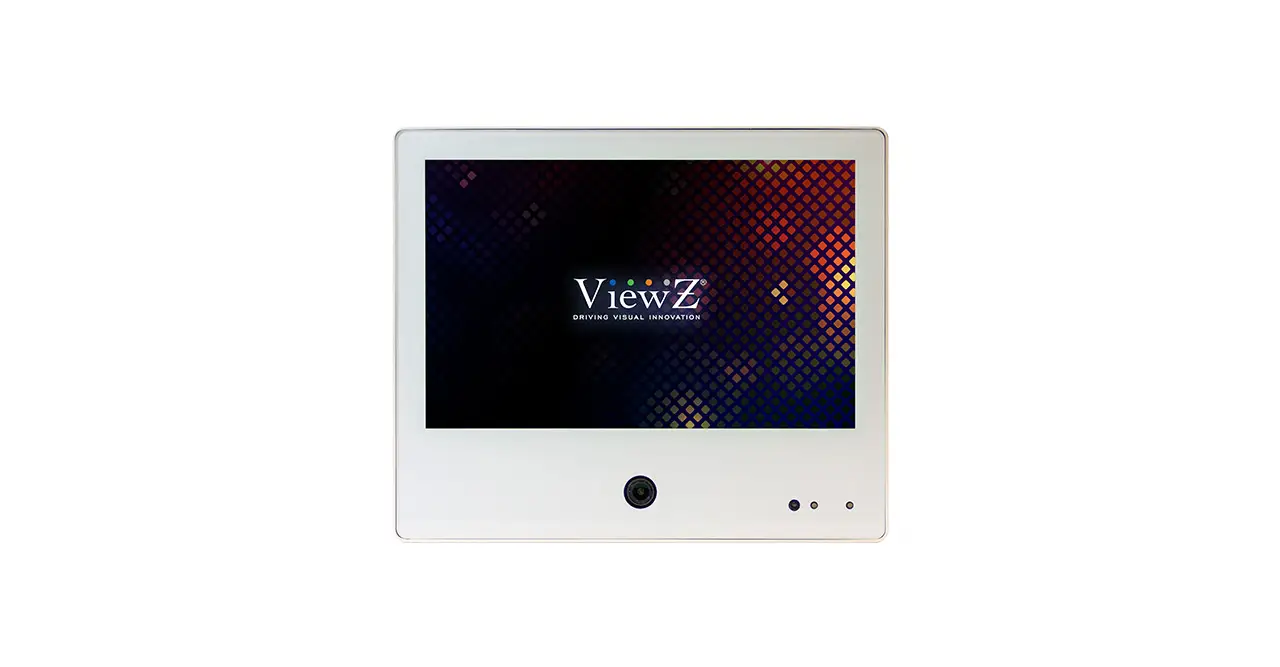

VZ-PVM-Z1W5-N

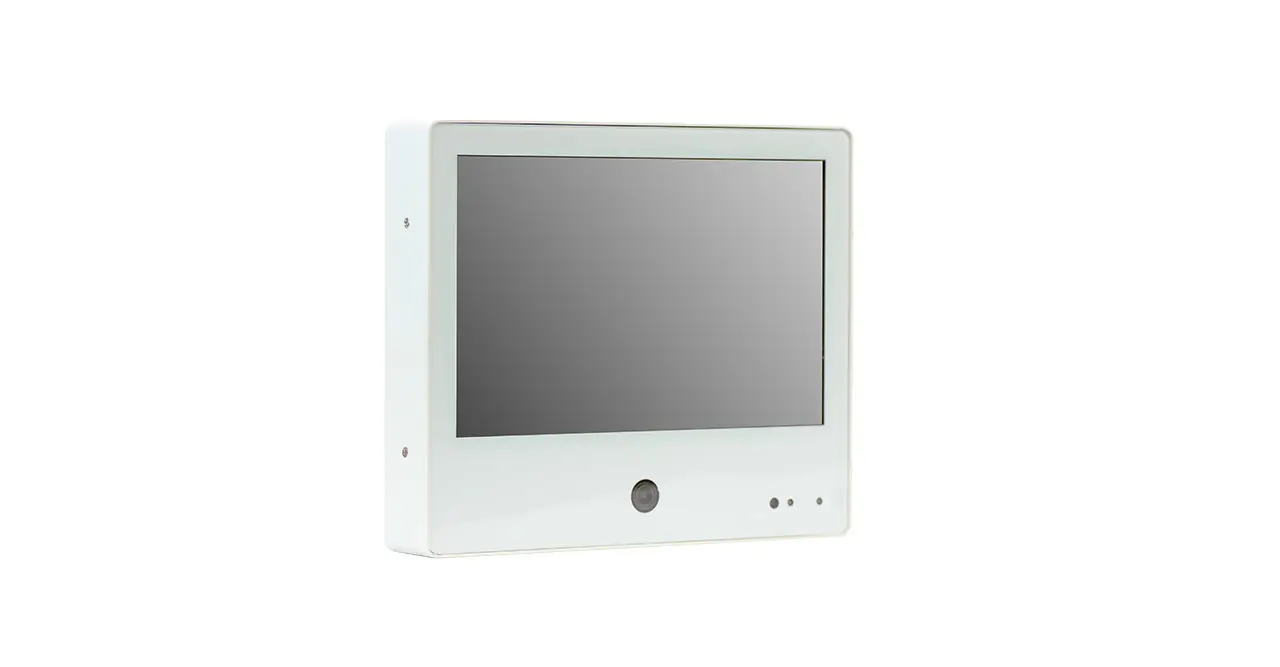

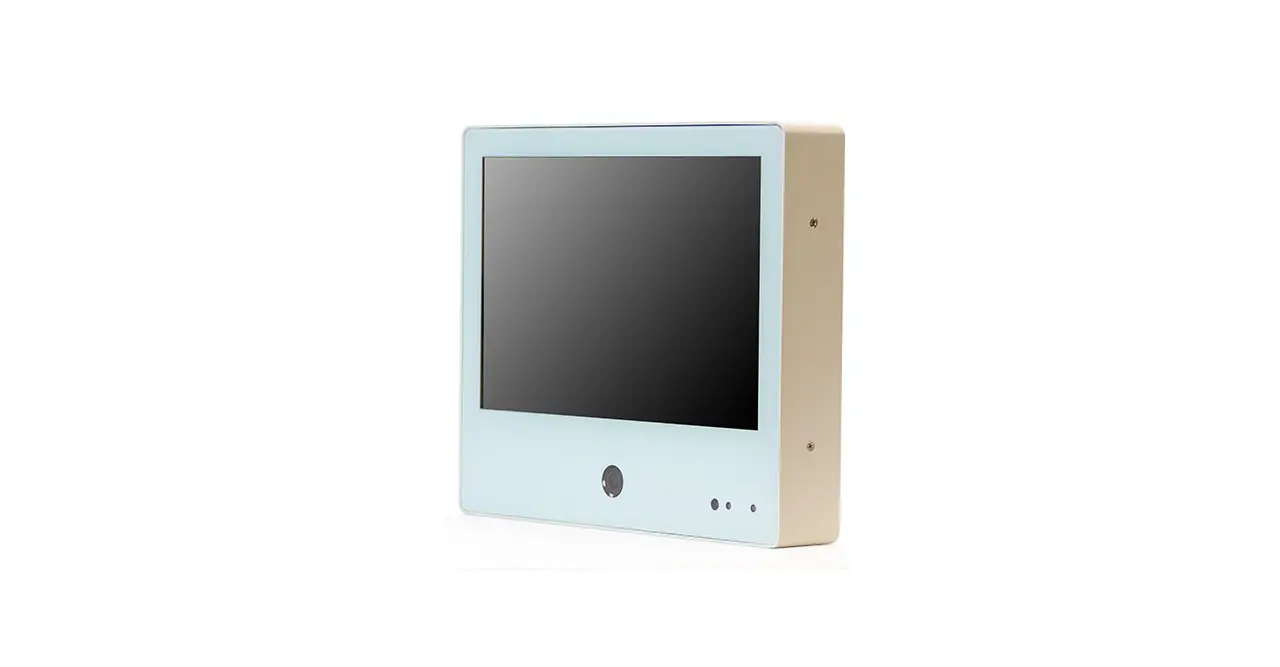

Public View Monitor with HD Resolution
- 10.1” HD Public View Monitor
- Video Loss / Door Open Alarm
- Camera Motion Sensor
- Blinking Indicator LED (Blue, Red, Purple)
- Blinking Message “Recording”
- Auto Power & Source Recovery
- DC 12V / Built-in 2 Mega Pixel Camera
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : HDPVM-N | Key Features : Built-in Media Player
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-PVM-Z1W5N
- 10.1” HD Public View Monitor
- Built-in 2 Mega Pixel Camera
- “A“ Commercial Grade LED
- Blinking Indicator LED (Blue, Red, Purple)
- Blinking Message “Recording”
- Camera Motion Sensor
- Video Loss / Door Open Alarm
- Auto Power & Source Recovery
- Built to run 24/7/365
- 3-Year Warranty
- DC 12V
- NDAA Compliant
Display
| Screen Size | 10.1″ |
| Max Resolution | 1280 x 800 @60Hz |
| Pixel Pitch | 0.1695 mm x 0.1695 mm |
| Brightness | 300cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million |
| Response Time | < 25ms |
Interface
| Camera (CVBS) Out | 1 |
| SD Card In | 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 9.88” x 8.31” x 1.80” / 251.2 x 211.2 x 45.9 mm |
| Net Weight | 4.62 lbs / 2.1 kg |
| Gross Weight | 7.05 lbs / 3.2 kg |
Mount
| Vesa | 100 mm x 100 mm / M4 x L10 Screws |
Audio
| Built in speaker | 2W x 2 |
Camera
| Camera Type | 2 Mega Pixel Camera |
| Lens | 2.8 mm Fixed Lens |
| Total / Effect Pixel | 1920(H) x 1080p(V) 30fps |
| Video Out | CVBS (960H) / 1.0 Vp-p Composite (75Ω) |
| Motion Detection | Support |
| Image Sensor / Encoder Chipset | 1/2.8” CMOS MN34227 / Nextchip NVP2440 |
| Function | 2D/3D NR, HLC/BLC, Defog, D/N, DWDR, AGC, AES, AWB, Privacy Masking (4 zone) |
| Min Illumination | Color:1.0 lux, BW: 0.5 lux, Color: DSS:0.017 lux, BW DSS:0.0008 lux |
Media Card Reader
| Support Type | Photo, Music, Video |
| External Storage | Support SD CARD (Max.64GB) |
| Video File Format | RMVB, RM(RV8/9), H.263, MPEG-1/2(VOB), H. 264 (MOV/MP4/M4V),MPEG-4(XVID/DIVX), WMV7,VC-1, MKV, AVI, TS/TP, VOB, PMP, FLV |
| Video Resolution | 1080P @60Hz |
| Audio File Format | MP3,WMA,AFE,FLAC,OGG,APE,AAC,AC3,DTS |
| Image File Format | JPEG, GIF, PNG, BMP |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | DC 12V, 2A |
| Power – Consumption | 12 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Operating Humidity | 5% – 90%RH |
| Regulation | CE, FCC(A), RoHS |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM01, VZ-SCM, VZ-SM01 |
Product Dimension & Weight
Click below to enlarge
