9 ~ 32” Vesa Wall Mount | VZ-AM02-A

product Description
vzam02a10
vzam02a12
vzam02a11
vzam02a17
vzam02a18
vzam02a13
vzam02a15
vzam02a16
vzam02a14
vzam02a10 vzam02a12 vzam02a11 vzam02a17 vzam02a18 vzam02a13 vzam02a15 vzam02a16 vzam02a14

VZ-AM02-A

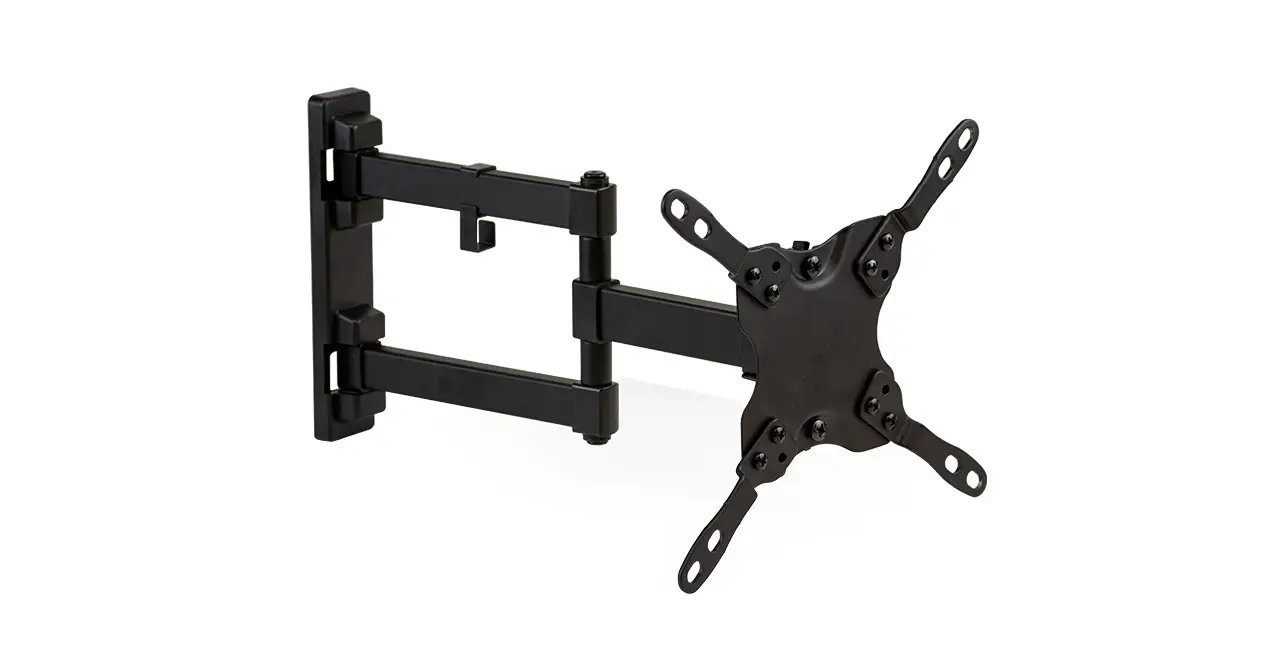

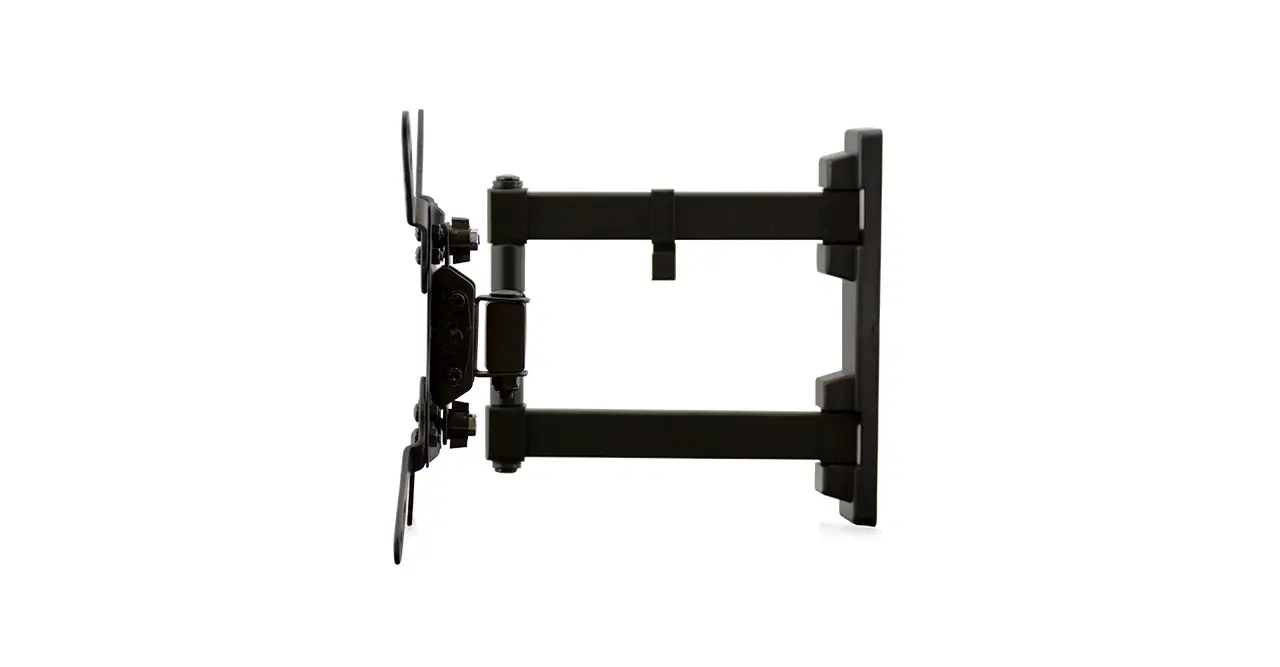

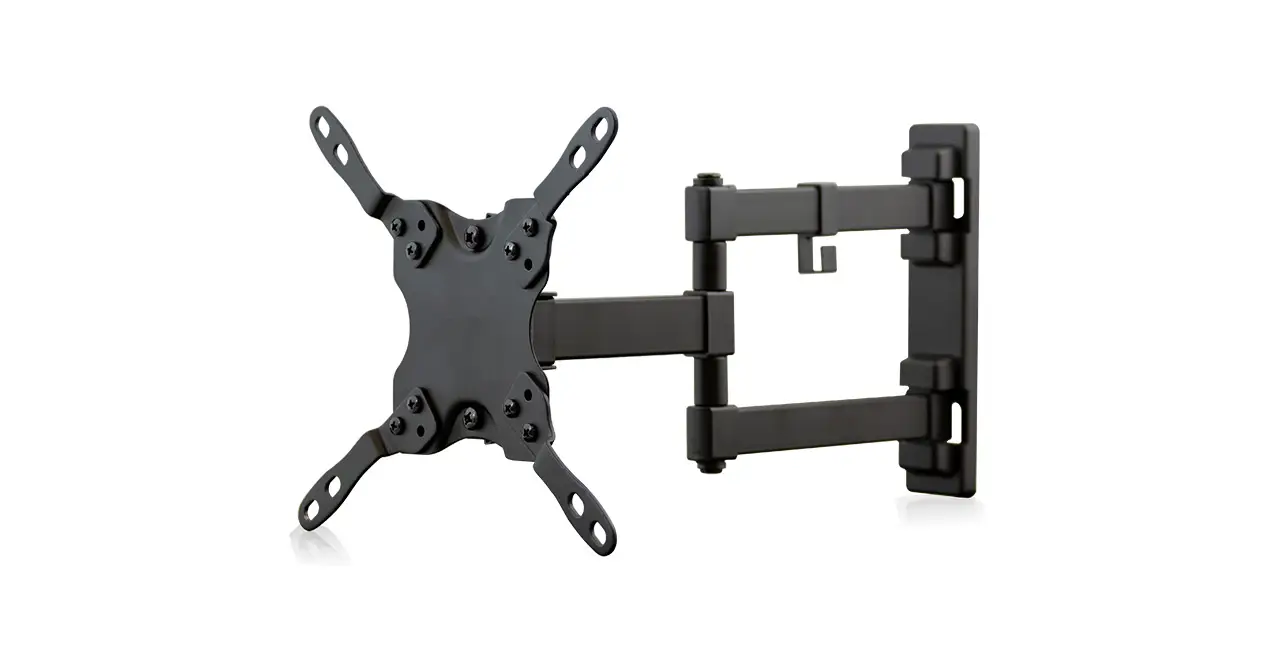

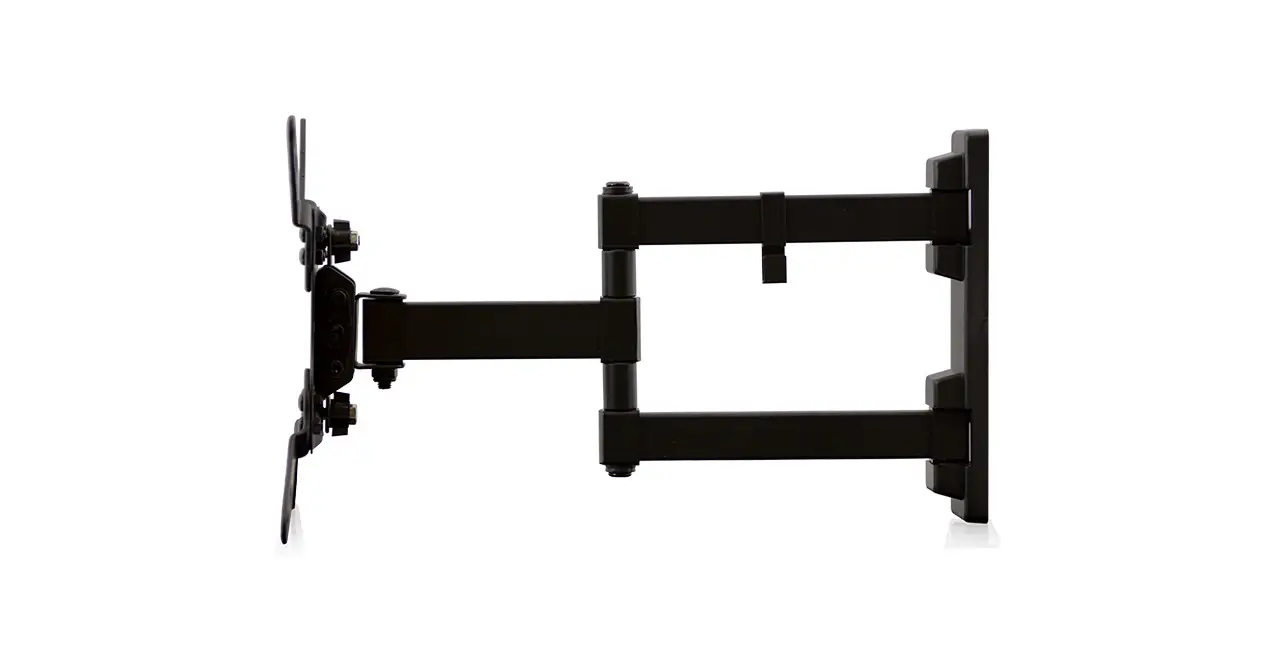

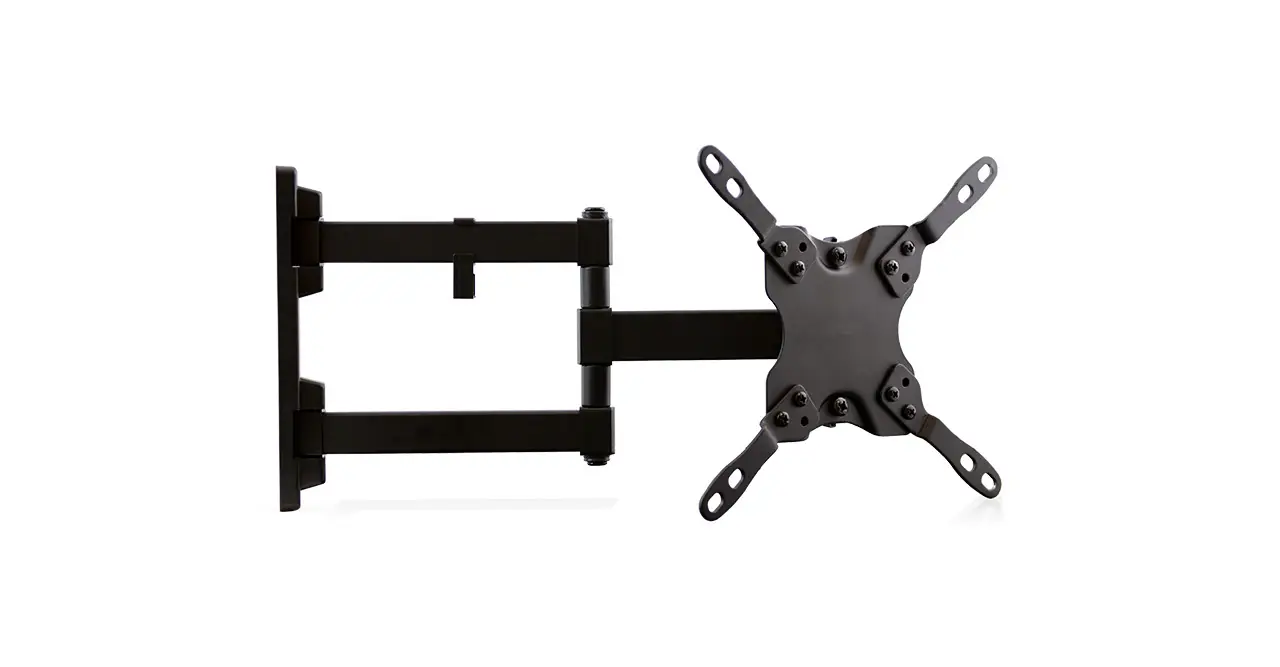

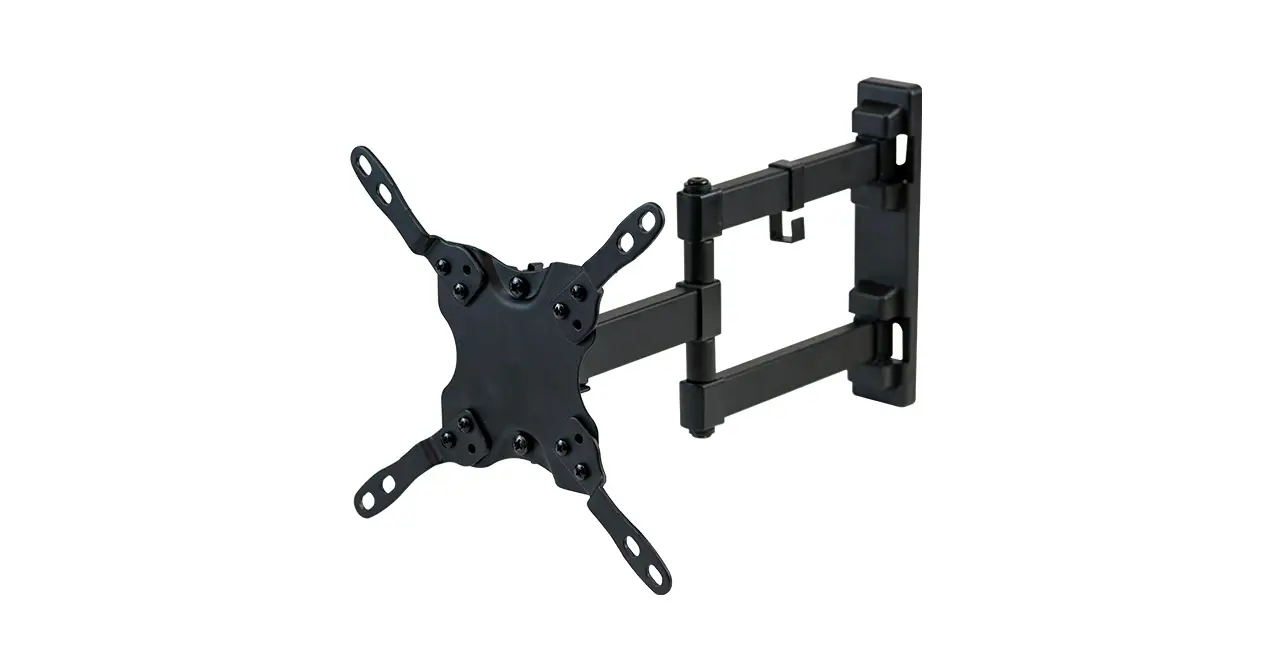

VZ-AM02-A is a fully articulating VESA wall mount. It features simple assembly and fluid movement for easy screen positioning. This high-grade steel mount has a weight capacity of 44 pounds and holds monitor sizes 9” to 32”. Features include +5° to -12° degree screen tilt and +90° to -90° degree monitor swivel for creating best viewing angles, and a cable management system to hold power and video cords.

  • 9″~32″ ViewZ Monitors
  • Load Capacity is 44 lbs / 20 kg
  • -5° ~ +12° tilt, 180° swivel, 360° landscape to portrait rotate plate

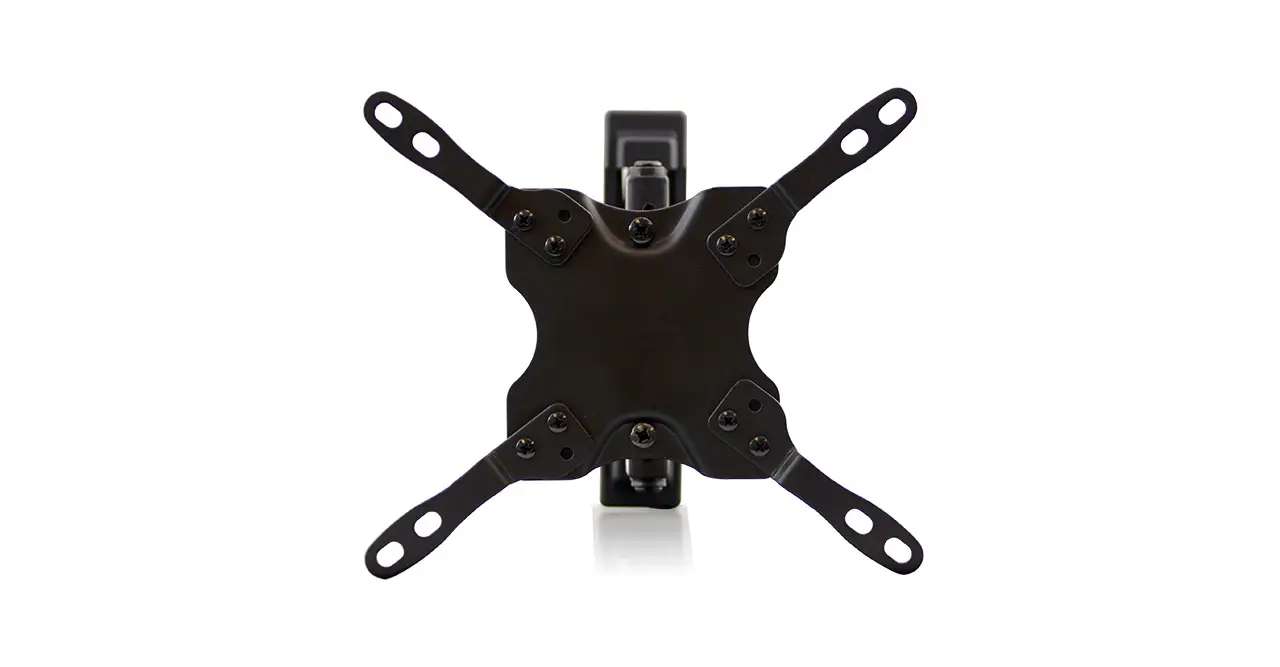

  • VESA compliant: 75×75, 100×100, 200×100, 200×200

Compatible Medical Monitors

Product Features

  • Model Number: VZ-AM02-A
  • 9″ ~ 32″ Swing Out Double Articulating Wall Mount
  • VESA compliant: 75×75, 100×100, 200×100, 200×200
  • Black
  • 3-Year Warranty

Specification

Total Weight Capacity 44 lbs / 20 kg
Display Range 9″ ~ 32″
PAN Rotation (Swivel) ± 90°
Tilt Capability +12° ~ -5°
Mounting Patterns Type VESA
Mounting Patterns 75×75, 100×100, 200×100, 200×200


Dimensions & Weight

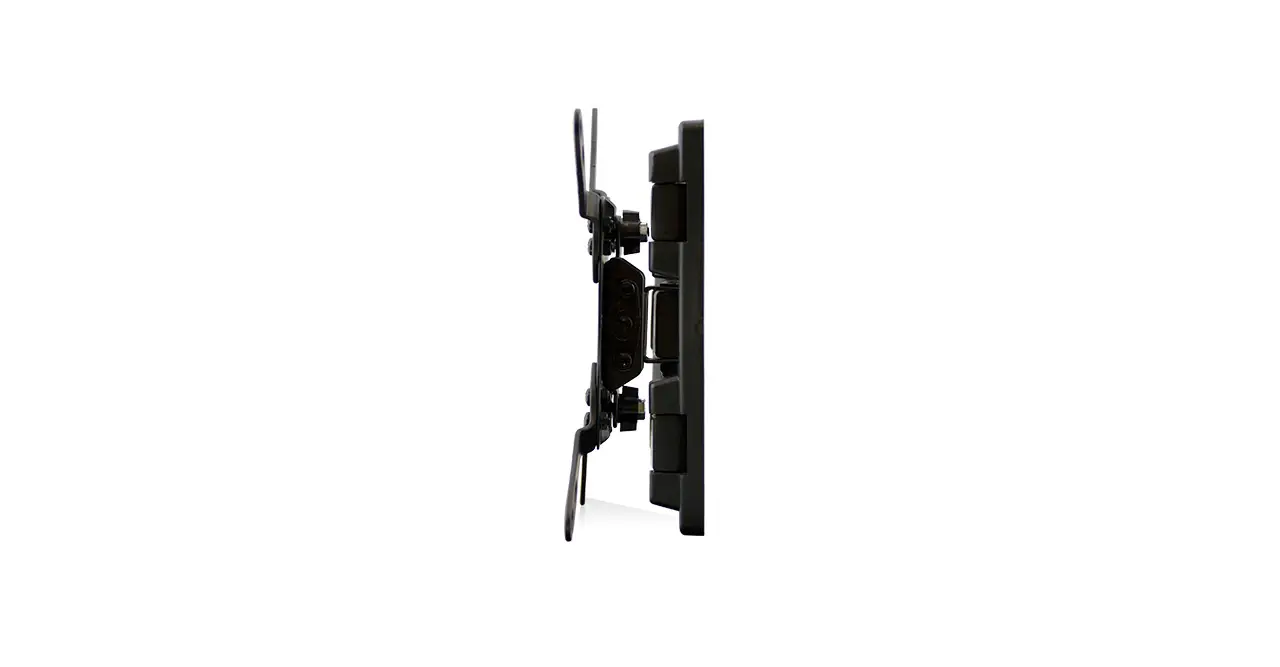

Outline Dimension (W x H x D(Profile)) 9.0” x 8.4” x (2.3 ~ 14)” / 228.6 mm x 213.4 mm x (58.42 ~ 355.6) mm
Net Weight 4.5 lbs / 2.04 kg

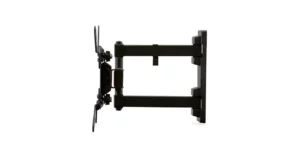

Product Dimension & Weight

Click below to enlarge
product Details
