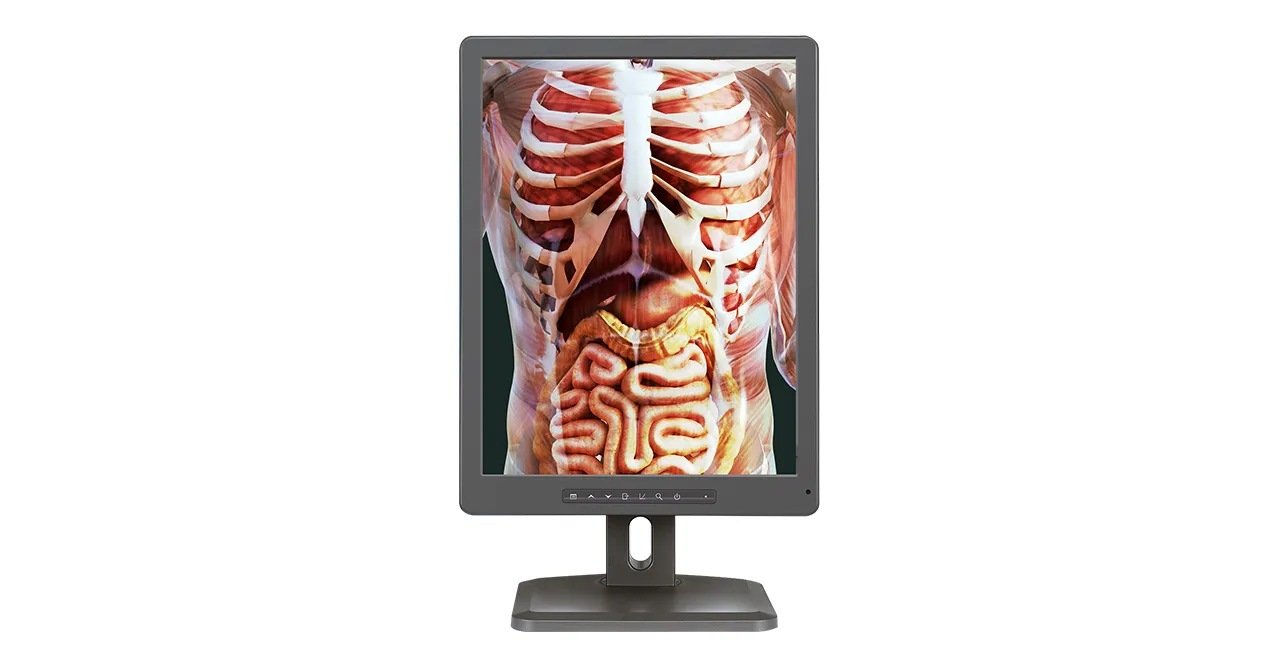

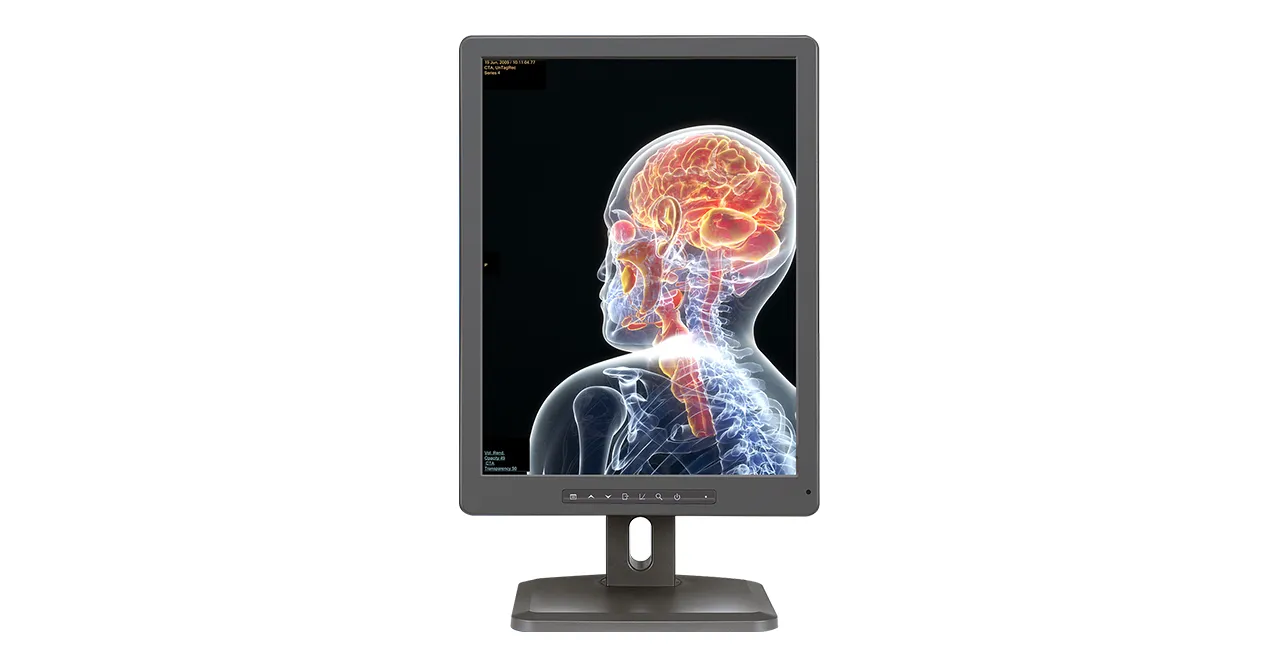

VZ-24MDM-2C
24” Diagnostic Display Monitors
- 1920 x 1200 @60Hz Resolution
- DVI, DP, HDMI
- Accurate Image Quality
- Precise Diagnosis
- Ambient Light Sensing System
- Super Wide Viewing Angle
- Built to run 24/7/365
- Multi-Angle Free Conversion (Vertical / Horizontal)
- 3-Year Warranty
Specification | Dimension | Spec & Manual
Series : MDM | Key Features : Diagnostic Display
Product Features
- Model Number: VZ-24MDM-2C
- 24″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Ambient Light Sensing System
- High Resolution Improve the Working Flow
- Accurate Image Quality
- Precise Diagnosis
- Multi-Angle Free Conversion (Vertical / Horizontal)
- Full HD (1920 x 1200 @60Hz)
- DVI / DP / HDMI
- Auto Source & Power Recovery
- Built to run 24/7/365
- 3-Year Warranty
Display
| Screen Size | 24″ |
| Max Resolution | 1920 x 1200 @60Hz |
| Pixel Pitch | 0.27 mm x 0.27 mm |
| Brightness | 600 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 14 ms |
Interface
| DVI In | 1 |
| DP In | 1 |
| HDMI In | 3 |
Special Features
| Multi Angle Free Conversion | Support Horizontal & Vertical Viewing |
| Display Surface Treatment | ANTI-Dazzle |
Dimensions & Weight
| Outline Dimension (W x H x D) | TBD |
| Net Weight | TBD |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | TBD |
| Power – Consumption | ≤ 50 w |
| Regulations | FCC(A), CE, RoHs |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH |
Product Dimension & Weight
Click below to enlarge
