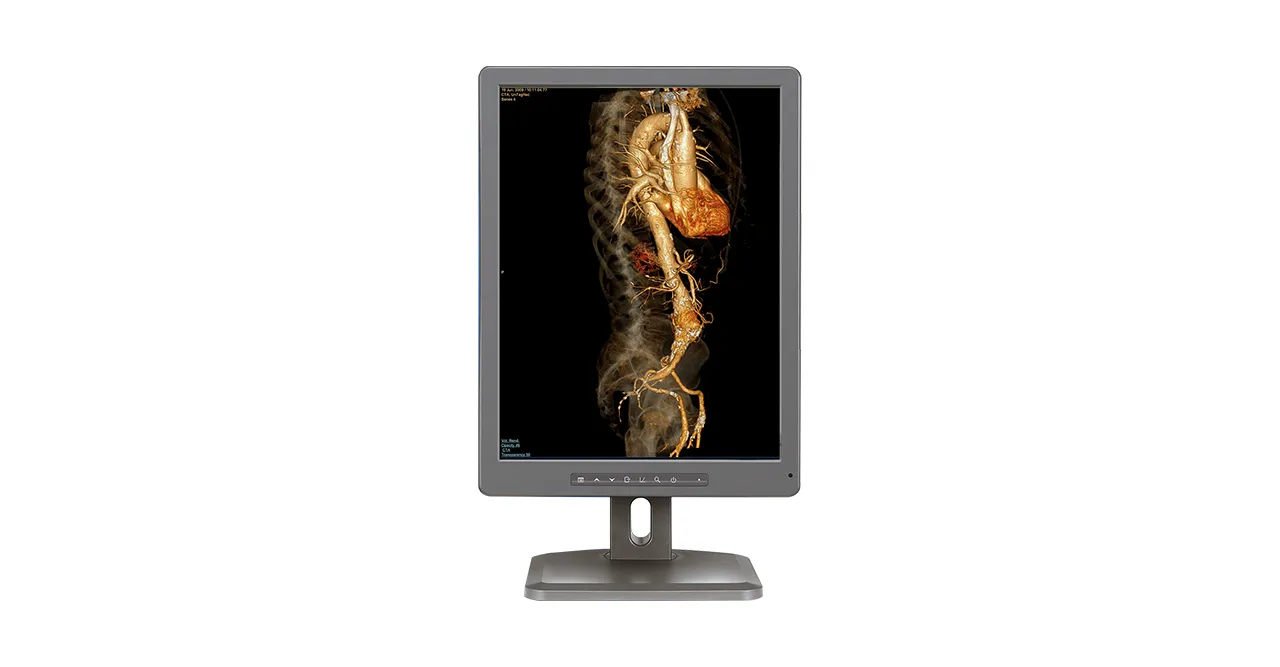

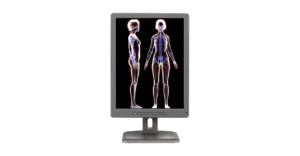

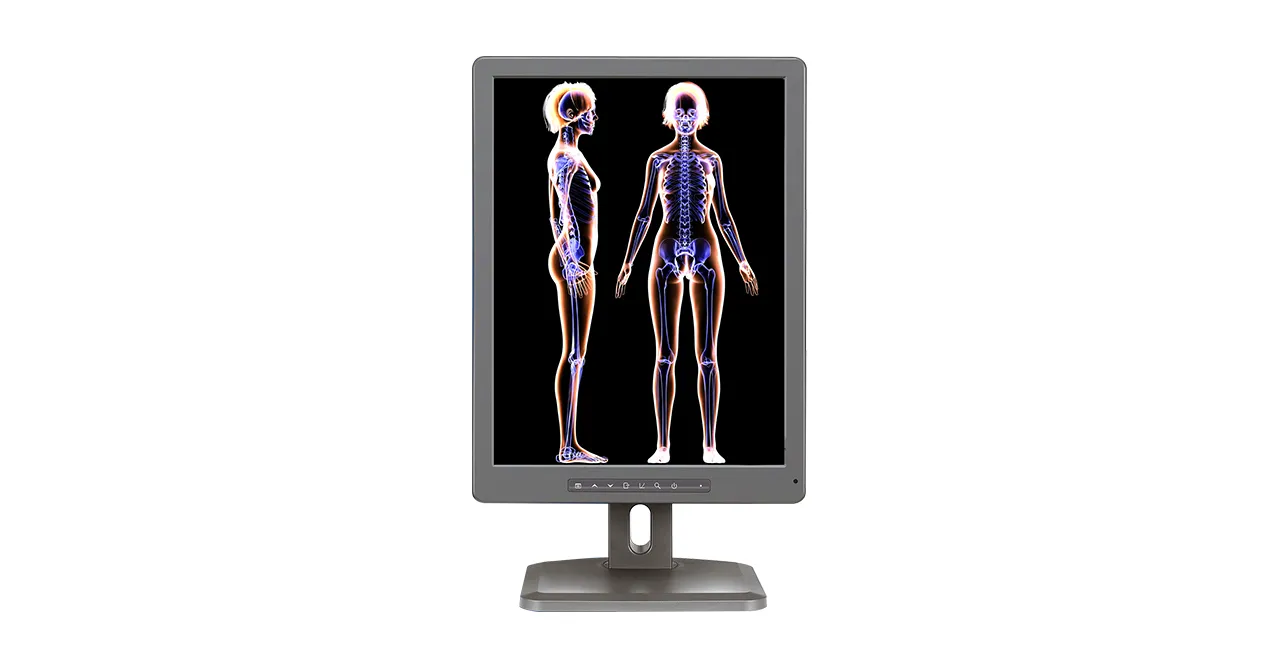

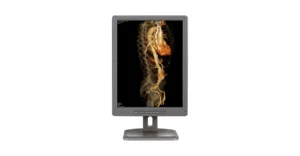

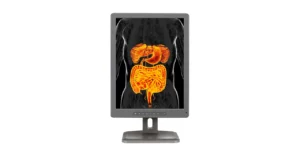

VZ-22MDM-3C
Diagnostic display combines unique LCD panel with update IPS technology, provide top image quality. Its high brightness and contrast is beneficial to show the details, ensure the radiologist make more accurate diagnosis.
- 2048 x 1536 @60Hz Resolution
- Multi-Angle Free Conversion (Vertical / Horizontal)
- DVI, DP, VGA
- Accurate Image Quality
- Precise Diagnosis
- Ambient Light Sensing System
- Super Wide Viewing Angle
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Specification | Dimension | Spec & Manual
Series : MDM | Key Features : Diagnostic Display
Product Features
- Model Number: VZ-22MDM-3C
- 21.3″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Precise Diagnosis
- Multi-Angle Free Conversion (Vertical / Horizontal)
- Ambient Light Sensing System
- High Resolution Improve the Working Flow
- Accurate Image Quality
- 2048×1536 @ 60 Hz
- DVI / DP / VGA
- Auto Source & Power Recovery
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Display
| Screen Size | 21.3″ |
| Max Resolution | 2048 x 1536 @60Hz |
| Pixel Pitch | 0.2115 mm x 0.2115 mm |
| Brightness | 1000 cd/m²(Typical) |
| Contrast Ratio | 1500 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 25 ms |
Interface
| DVI In | 1 |
| DP In | 1 |
| VGA In (15Pin D-Sub) | 1 |
Special Features
| Multi Angle Free Conversion | Support Horizontal & Vertical Viewing |
| Display Surface Treatment | ANTI-Dazzle |
Dimensions & Weight
| Outline Dimension (W x H x D) | TBD |
| Net Weight | TBD |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | TBD |
| Power – Consumption | ≤ 80 w |
| Regulations | FCC(A), CE, RoHs |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH |
Product Dimension & Weight
Click below to enlarge
