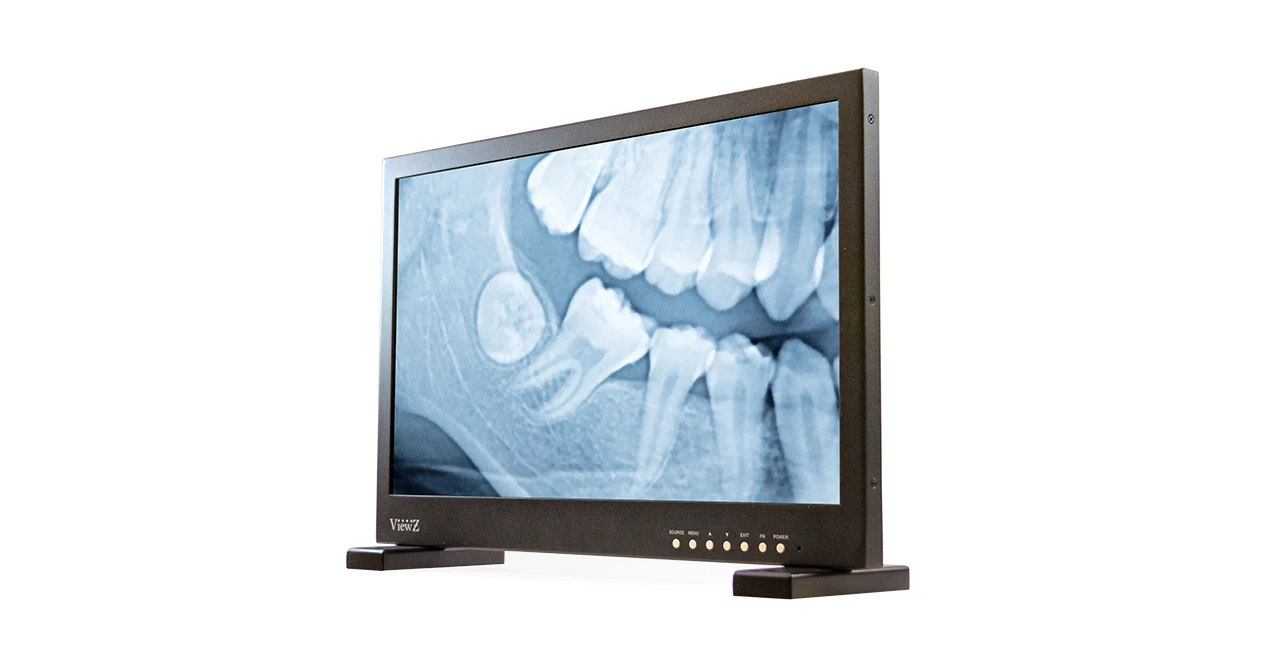

VZ-215LED-L1-ME
3G-SDI 21.5`` Clinical Review High-Performance Display
- 21.5” 1080p Full HD Resolution
- HDMI, VGA, SD/HD/3G-SDI (Level A/B), COMPONENT
- Blue Mono, Built-in 2 Speakers
- SDI Embedded Audio Level Meter / 2ch Displays (out of 16ch)
- Center Marker / Safety Area / Corner
- Scan – Zero, Over and pixel to pixel
- Front Function Assignable Button
- Built to run 24/7/365
- Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - 3-Year Warranty
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-215LED-L1-ME
- 21.5” 1080p HD Resolution
- HDMI, VGA, SD/HD/3G-SDI (Level A/B), COMPONENT
- Blue Mono, Built-in 2 Speakers
- SDI Embedded Audio Level Meter / 2ch Displays (out of 16ch)
- Center Marker / Safety Area / Corner
- Scan – Zero, Over and pixel to pixel
- Front Function Assignable Button
- Built to run 24/7/365
- Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - 2-Year Warranty
Display
| Screen Size | 21.5″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.24825 mm x 0.24825 mm |
| Brightness | 250 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/160° |
| Display Color | 16.7 Million |
| Response Time | < 5ms |

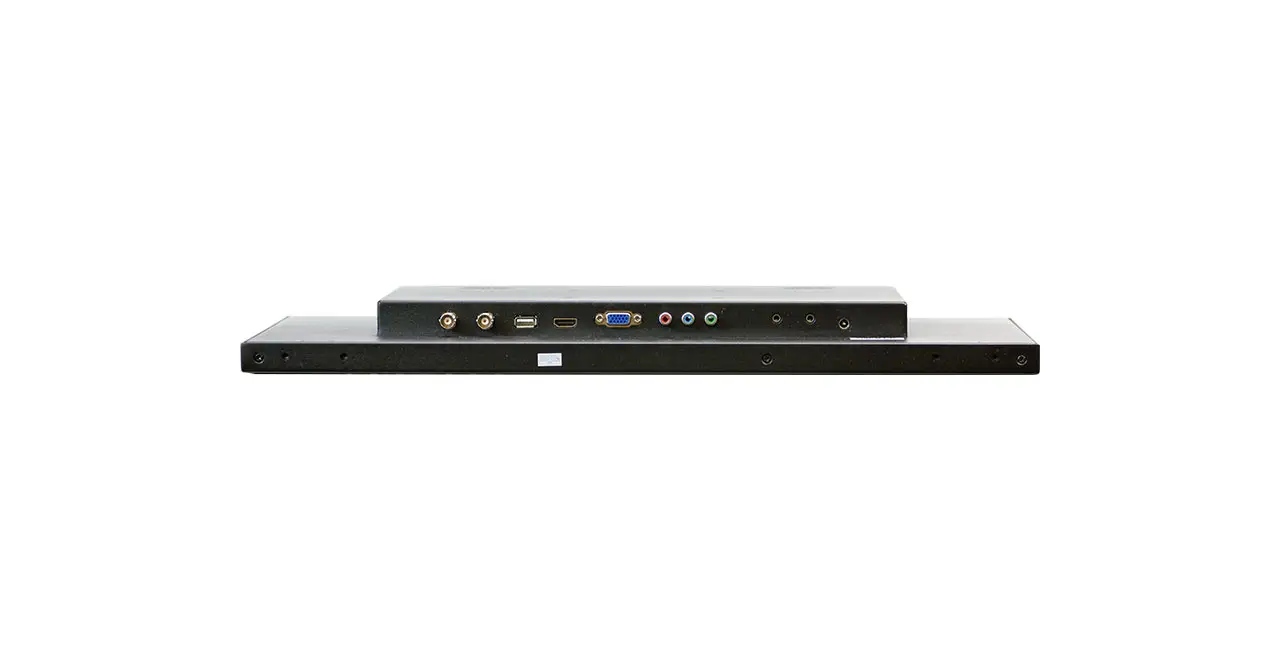

Interface
| Component In | 3 |
| 3G-SDI In / Out (BNC, 1 input / loop-through out) | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| USB In | 1 |
| Speaker Out | 1 |
| PC Stereo In | 1 |
Audio
| Built in speaker | 2W x 2 |
Special Features
| Line Marker Option | 3:2, 4:3, 1.85:1, 2.35:1, Off |
| Safety Area Option | Off, 80%, 85%, 88%, 90%, 93% and 95% |
| SDI Sound Channel Option | Two (2) Channels out of sixteen (16) channels |
| RGB Gain | -128 to 128 |
| RGB Bias | -128 to 128 |
Input Format
| SDI – SMPTE 425M-A & B (YCbCr 4:2:2) | 1080p ( 60/59.94/50 ) |
| SDI – SMPTE 274M (YCbCr 4:2:2) | 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98) 1080Psf (30/29.97/25/24/23.98) 720P(60/59.94/50/30/29.97/25/24/23.98) |
| SDI – SMPTE 296M (YCbCr 4:2:2) | 525i (NTSC 59.94) |
| SMPTE 125M (YCbCr 4:2:2) | 625i (PAL 50) |
| ITU-R BT.601 (YCbCr 4:2:2) | 2048 x 1080P (24/23.98/24sF/23.98sF) |
| ANALOG – 2K Format (YCbCr 4:2:2) | 1080P (60/59.94/50, 30/29.97/25/24/23.98) |
| ANALOG – COMPONENT | 1080i (60/59.94/50), 720P(60/59.94/50) |
| HDMI | 480i/480P/576i/576P/1080i/1080P |
| VGA | VGA, SGA, XGA, SXGA, WXGA, WUXGA |
Dimensions & Weight
| Outline Dimension (W x H x D) | 20.32″ x 13.65″ x 1.72″ / 516.0 mm x 346.9 mm x 43.6 mm |
| Net Weight | 8.4 lbs / 3.8 kg |
Mount
| Vesa | 100 mm x 100 mm / M4 x L10 mm |
General Summary
| Power – Electrical Ratings | DC12V (AC100 ~ 240V[50/60Hz]) – Medical Safety Power Supply Approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| Power – Consumption | ≤ 24 w |
| Warranty – Parts / Labor | 2 Year / 2 Year |
| Operating Temperature | Humidity | 32°F ~ 104°F / 0°C ~ 40°C |

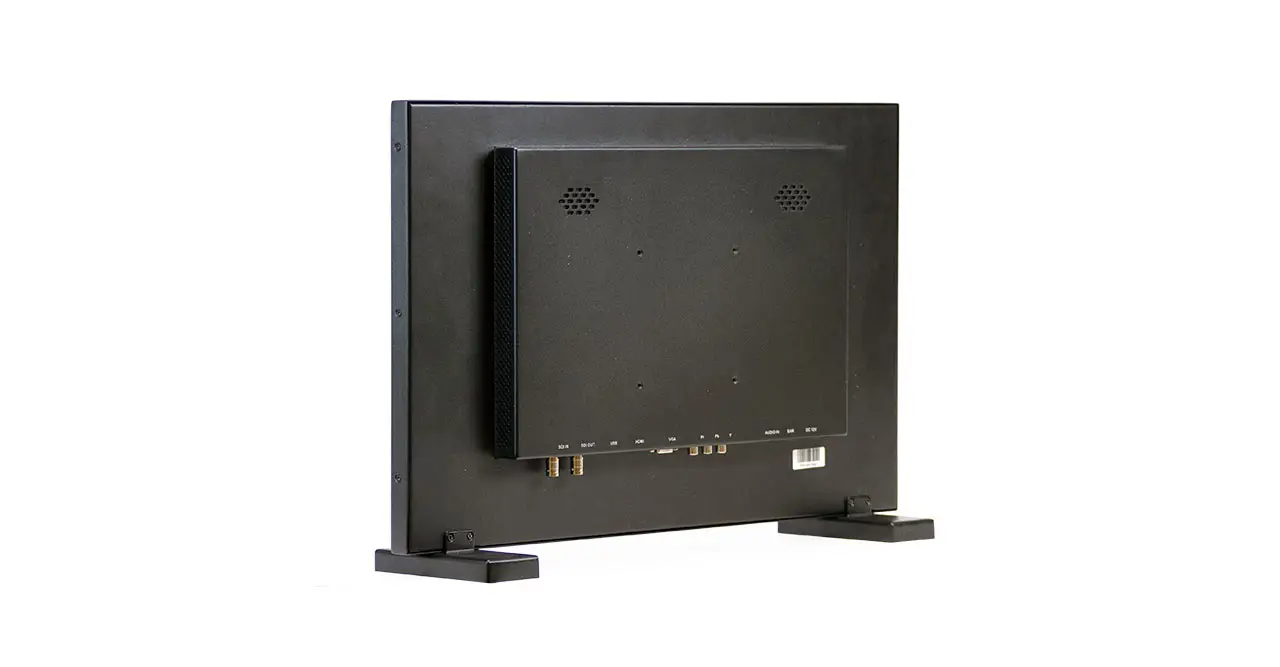

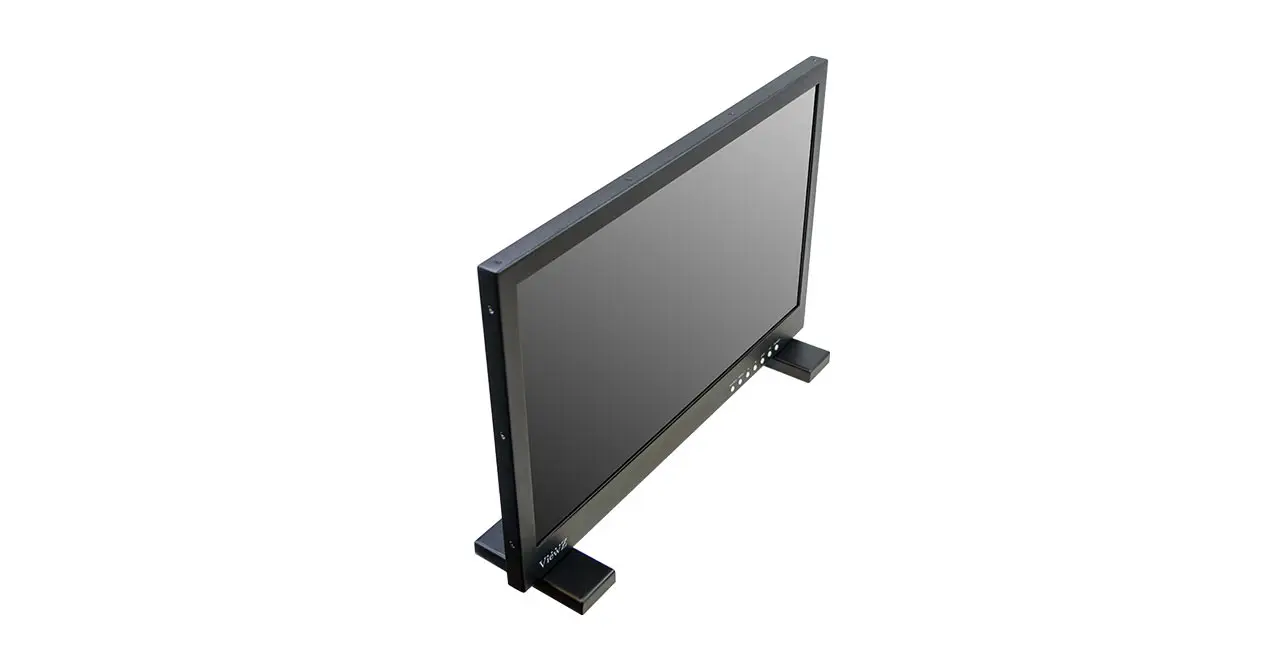

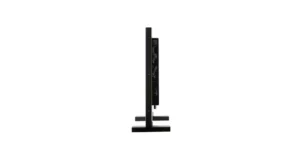

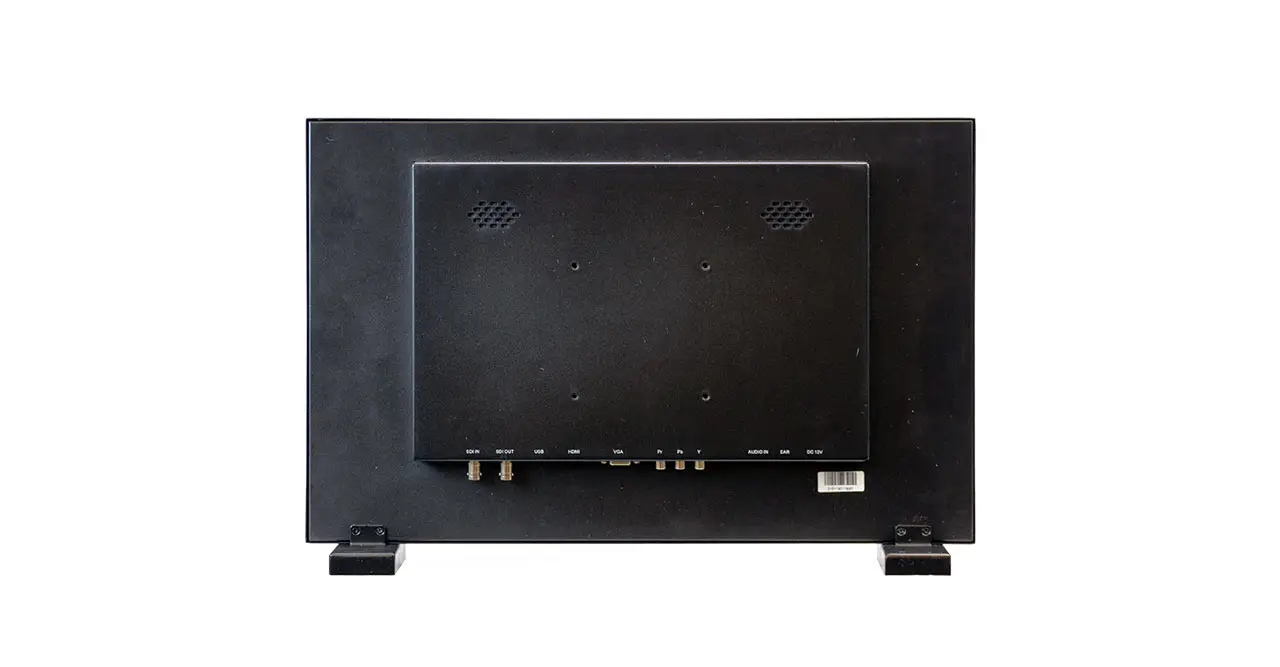

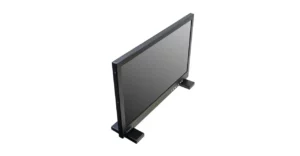

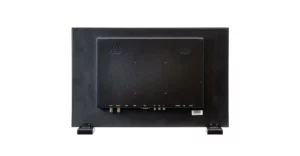

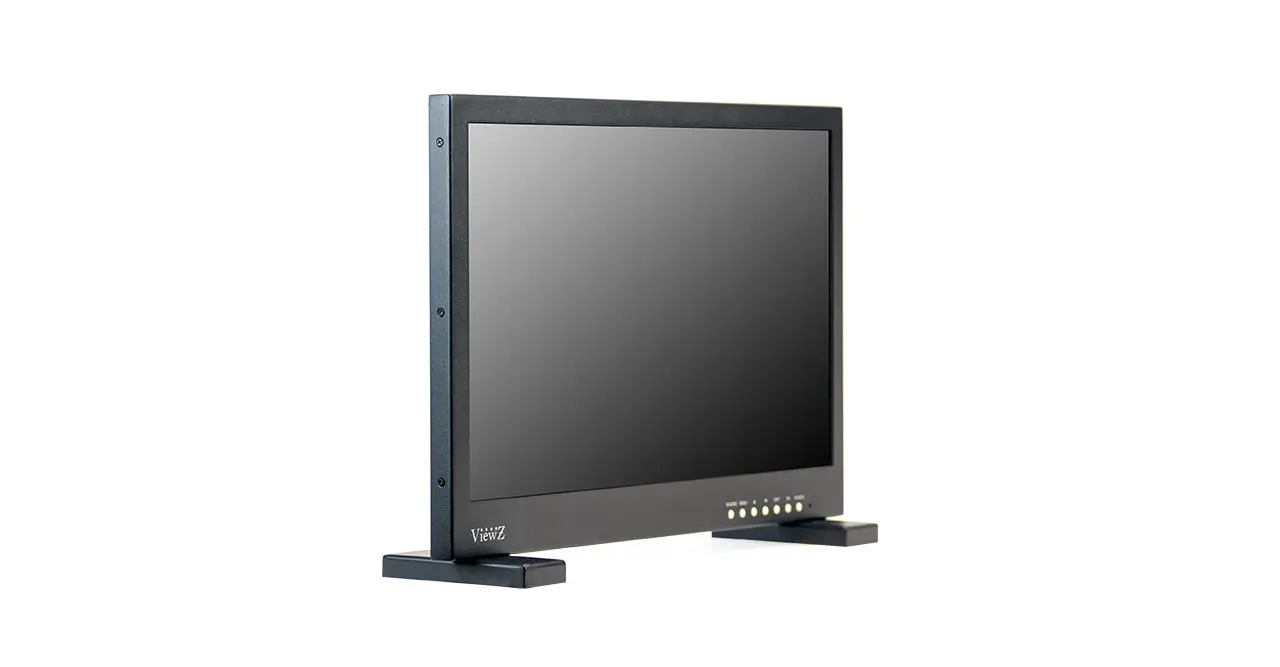

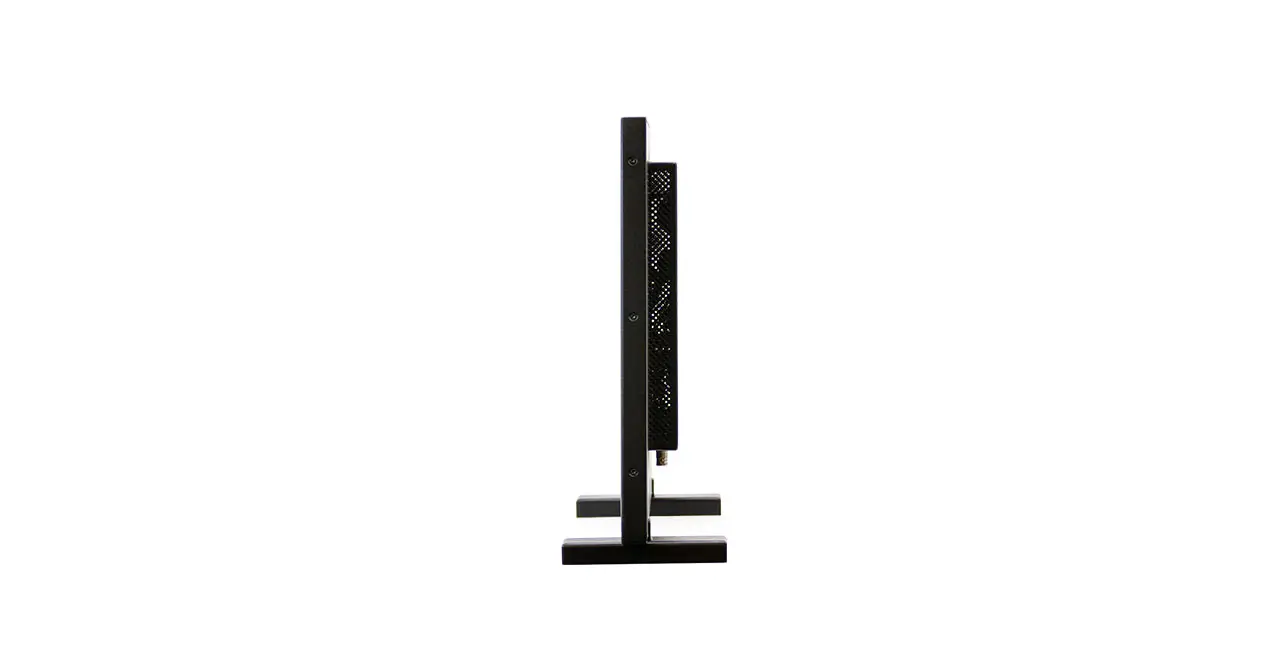

Product Dimension & Weight
Click below to enlarge
