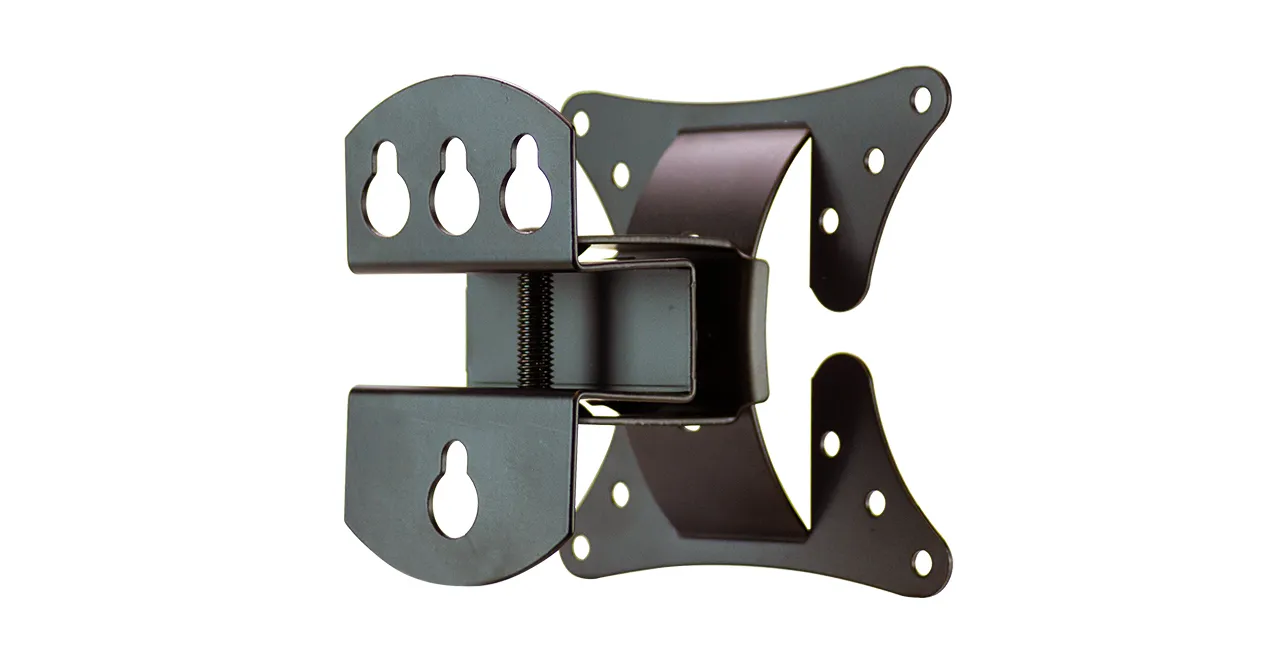

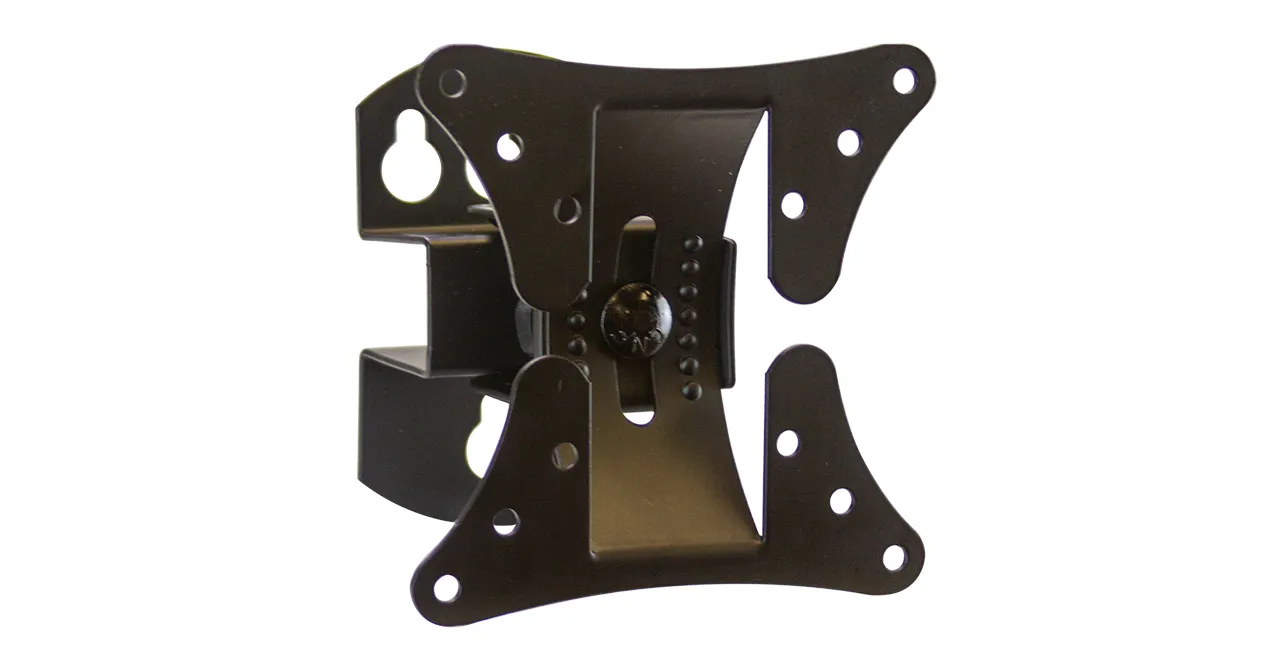

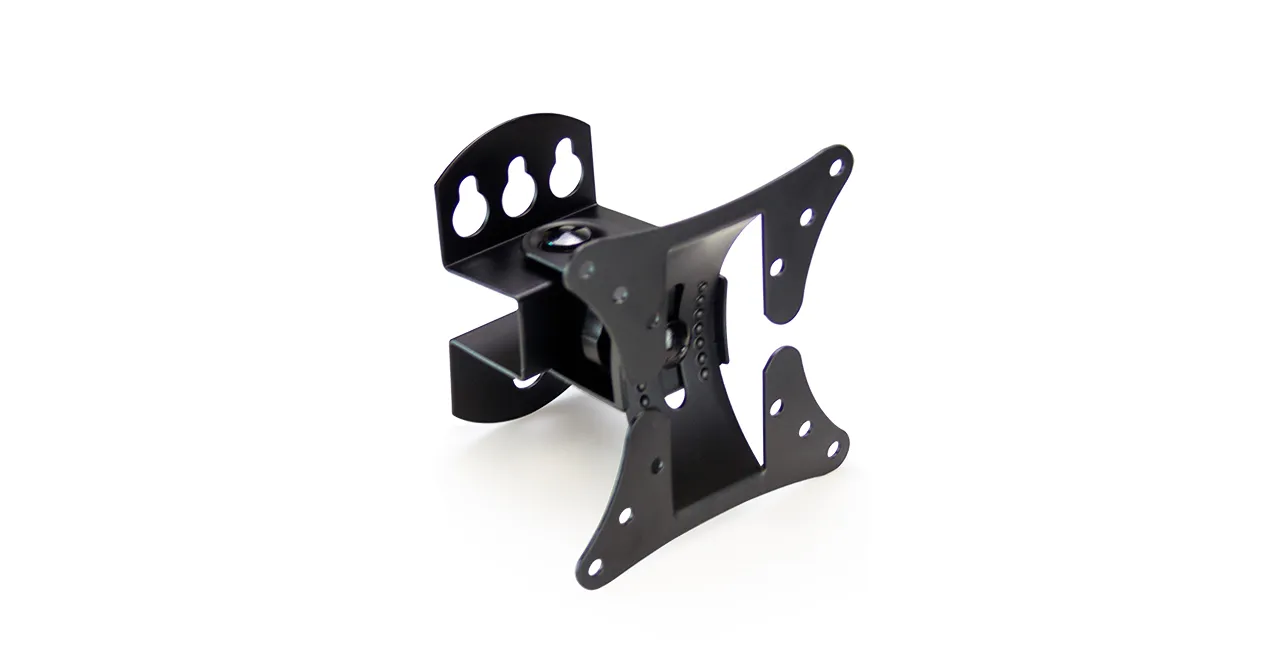

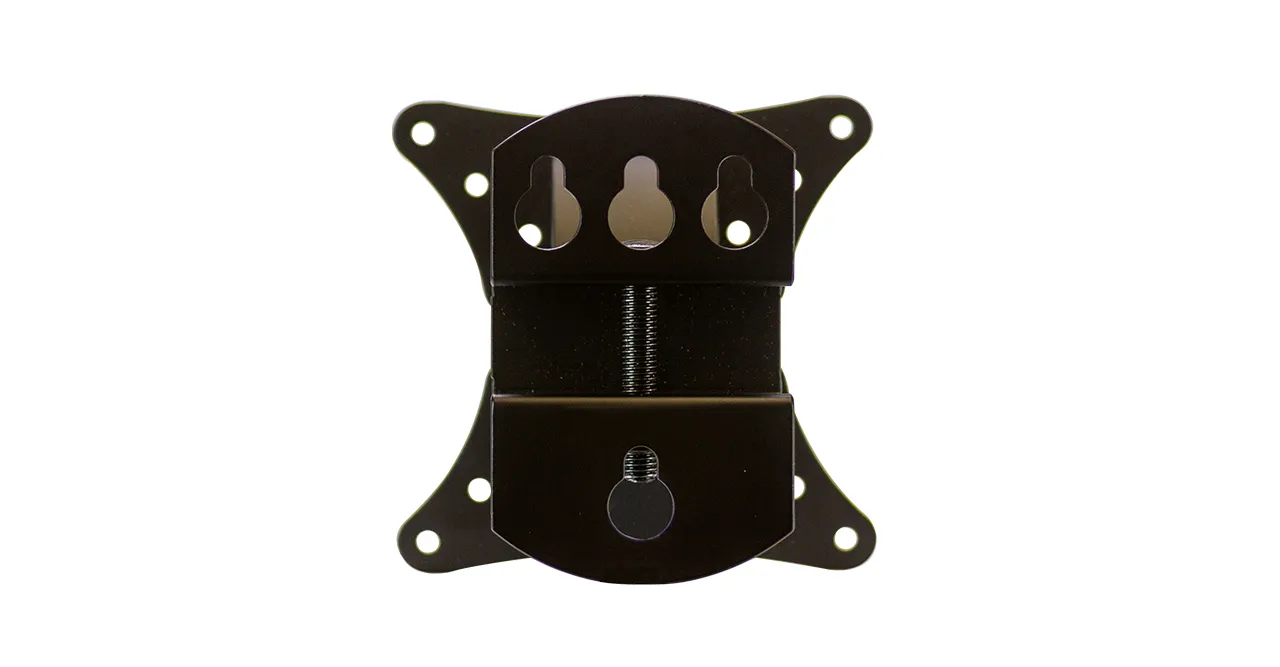

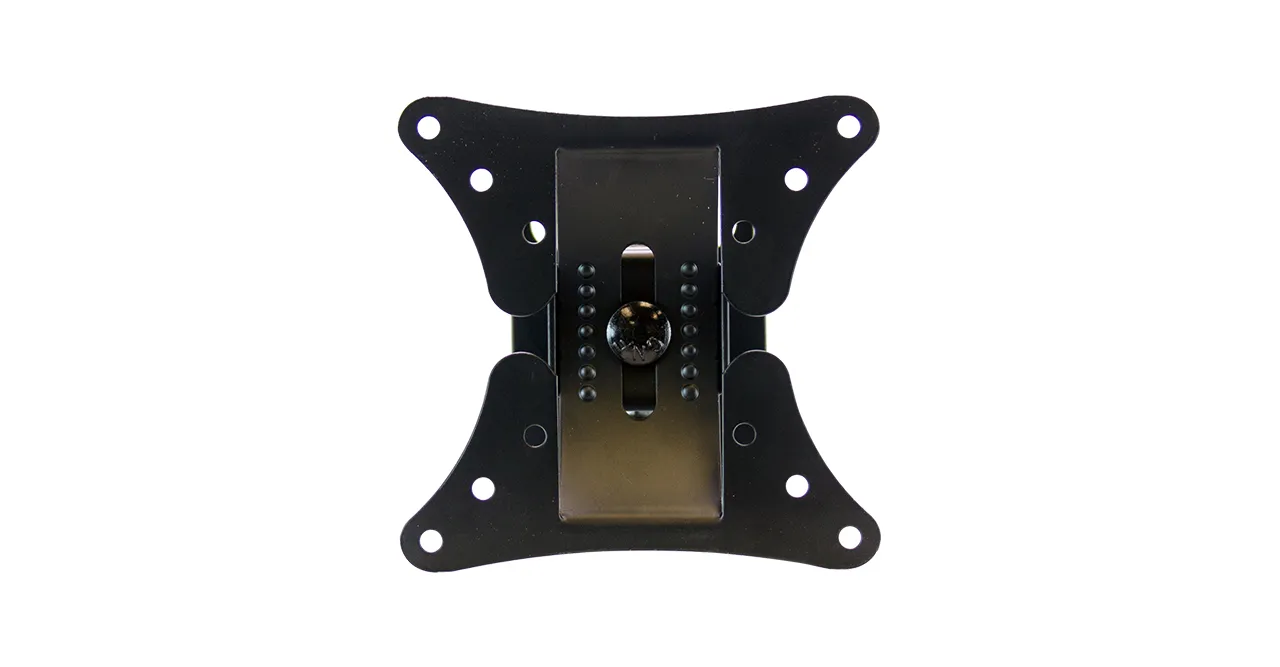

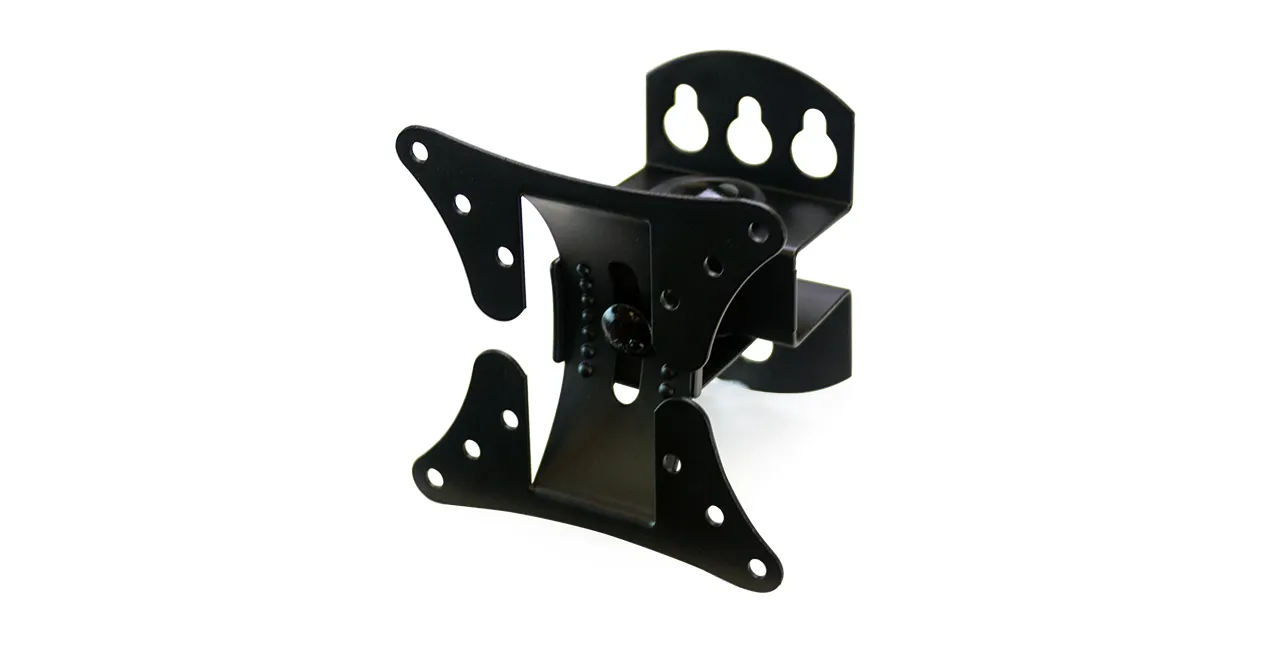

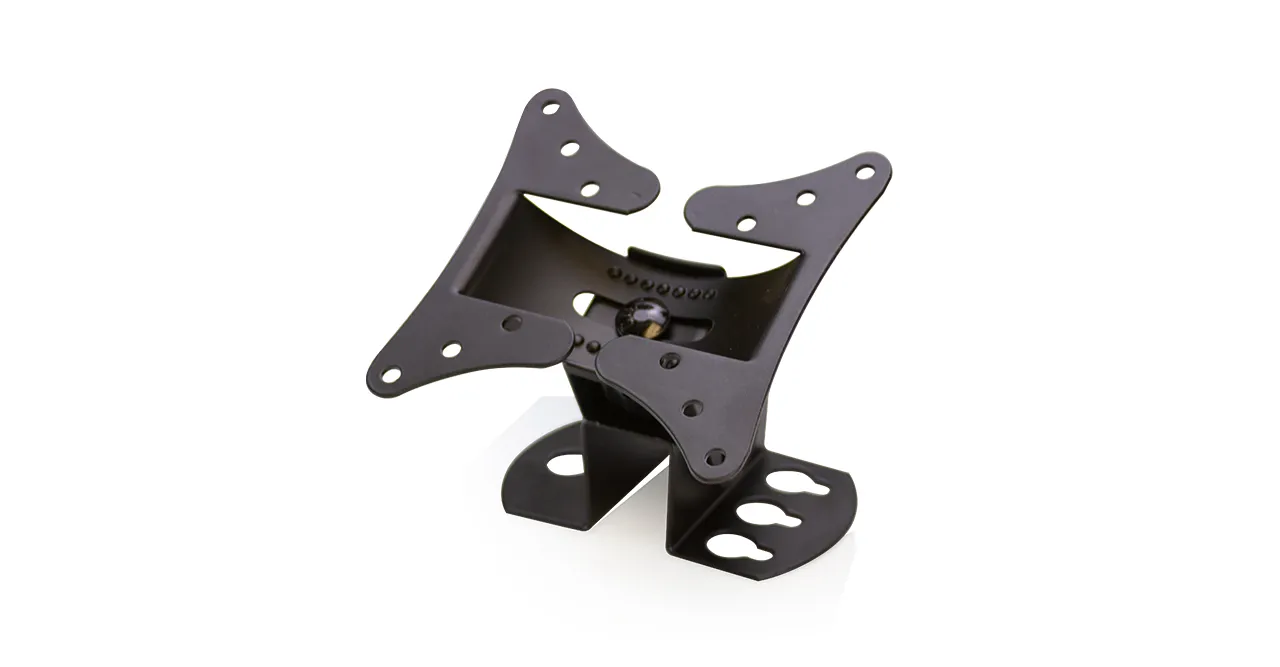

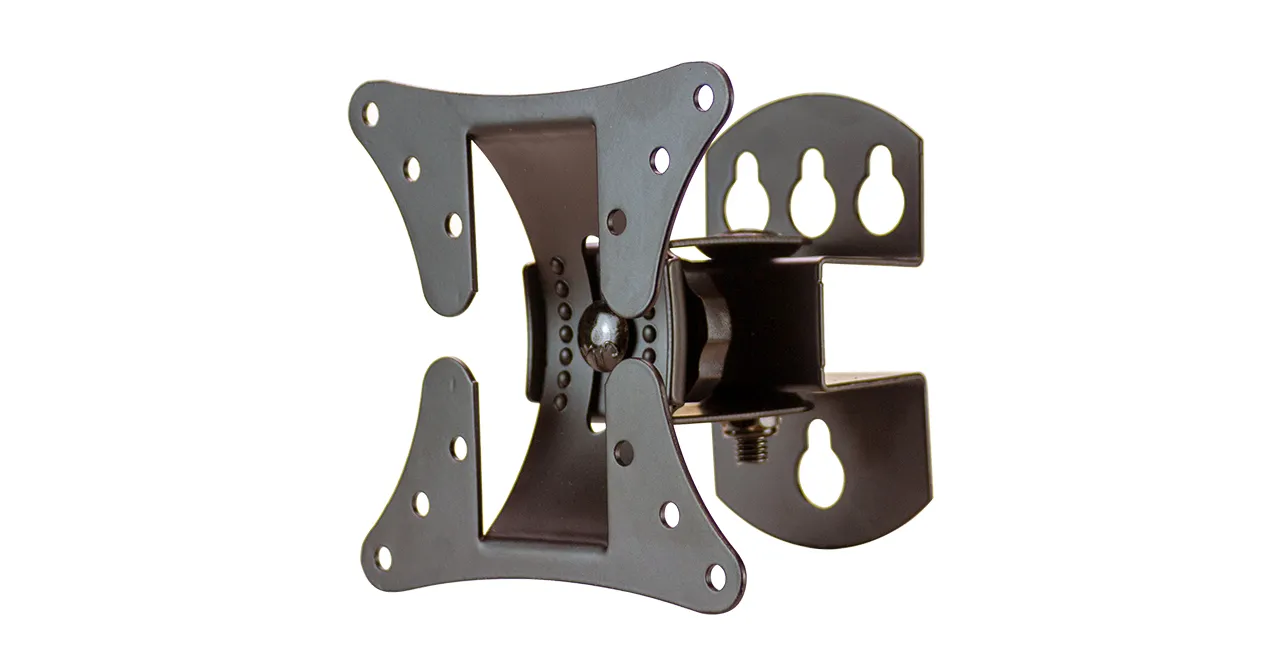

VZ-WM11
- 10″ to 24″ ViewZ Monitors
- Load Capacity is 22 lbs / 9.7 kg
- VESA Compliant – 50×50, 75×75, 100×100

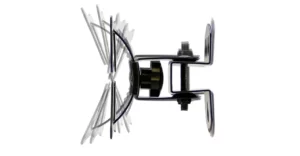

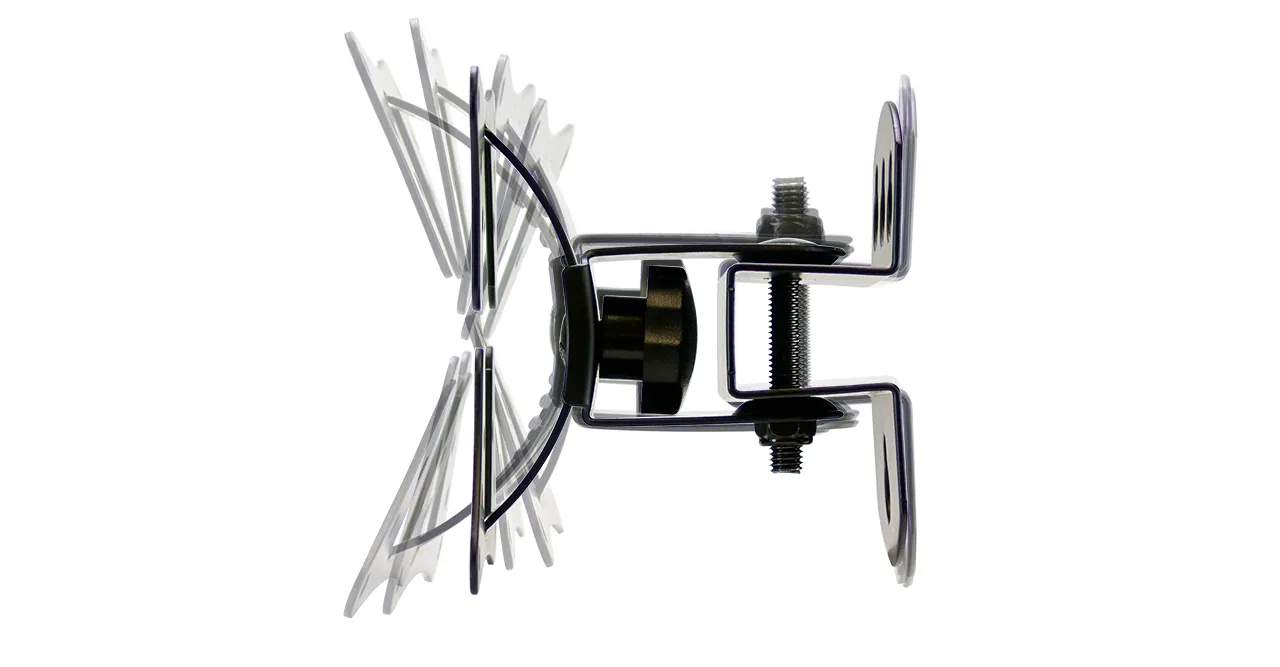

- ± 30° tilt, ± 45° swivel
Specification | Dimension | Spec & Manual
Series : Wall Mount | Key Features : Compatible for 10-24″ VESA
Compatible Medical Monitors
Product Features
- Model Number: VZ-WM11
- 10″ ~ 24″ Tilt and Rotate Wall Mount
- VESA 50, 75, 100
- Black Metal
Specification
| Display Range | 10″ ~ 24″ |
| Weight Capacity | 22 lbs / 9.7 kg |
| Tilt | -30° ~ +30° |
| Swivel | ± 45° |
| Mounting Pattern Type | VESA |
| Mounting Patterns | 50×50, 75×75, 100×100 |
Dimensions & Weight
| Mount Size (W x H x D) | 4.53 x 4.53 x 2.44″ / 115.062 x 115.062 x 61.97 mm |
| Wall Plate Size (W x H x D) | 3.94 x 3.35 x 0.11″ / 3.94 x 3.35 x 3 mm |
| Net Weight | 1.0 lbs / 0.45 kg |
| Gross Weight | 1.15 lbs / 0.52 kg |
Product Dimension & Weight
Click below to enlarge
