VZ-24CMP-ME
23.6`` Clinical Review High-Performance Display
- Full HD 1080p Resolution
- 1 CVBS(BNC) Input / Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Auto Source & Power Recovery
- HDMI, VGA, Audio
- 3D Comb-Filter, De-Interlace, Built-in Speakers
- Built to run 24/7/365
- Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - 3-Year Warranty
Specification | Dimension | Spec & Manual
Series : CMP-ME | Key Features : 16:9 / 4:3 Full HD
Compatible Mounts & Accessories
Product Features

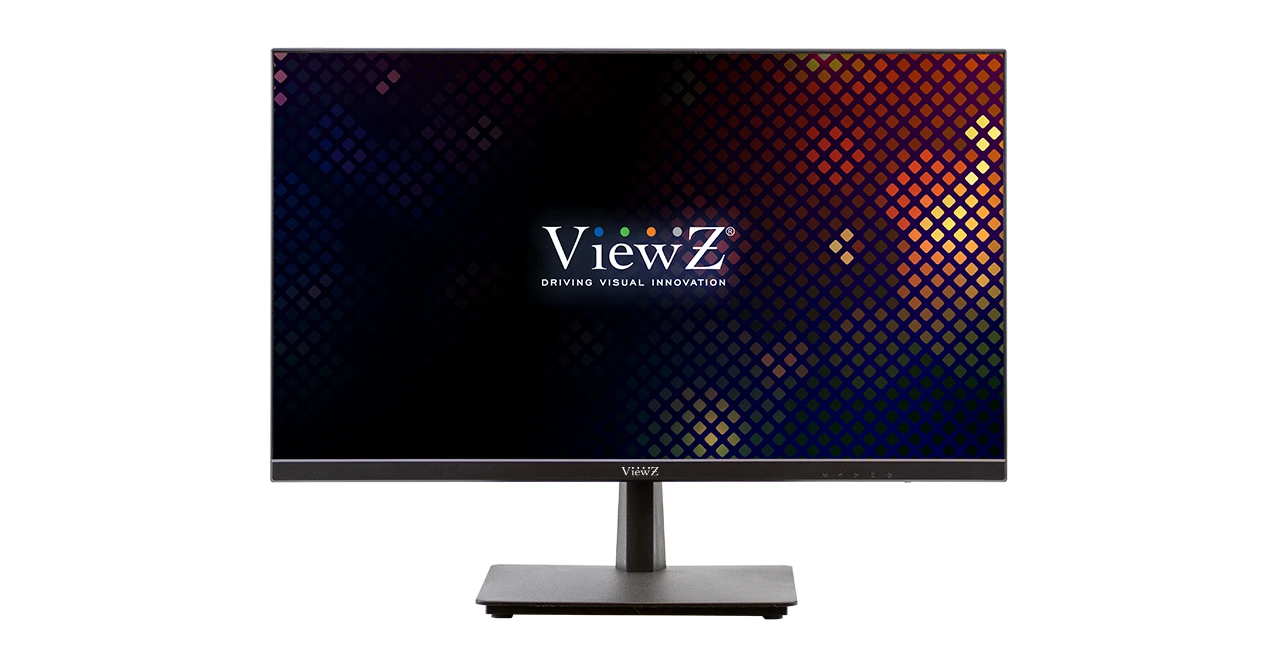

- Model Number: VZ-24CMP-ME
- 24″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD (1920×1080) / 16:9
- 1 CVBS (BNC) Inputs / 1 CVBS (BNC) Output (Loop-through)
- 3D Comb-Filter / De-Interlace
- HDMI / VGA / Audio In
- Auto Source & Power Recovery
- 2W Speaker x 2
- DC 12V, 3.0 A (AC 100-240V, 50/60Hz with DC Adaptor) /
Power Consumption ≤ 24 W - Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - Built to run 24/7/365
- 3-Year Warranty
Display
| Screen Size | 23.8″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2745 mm x 0.2745 mm |
| Brightness | 250 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8ms |

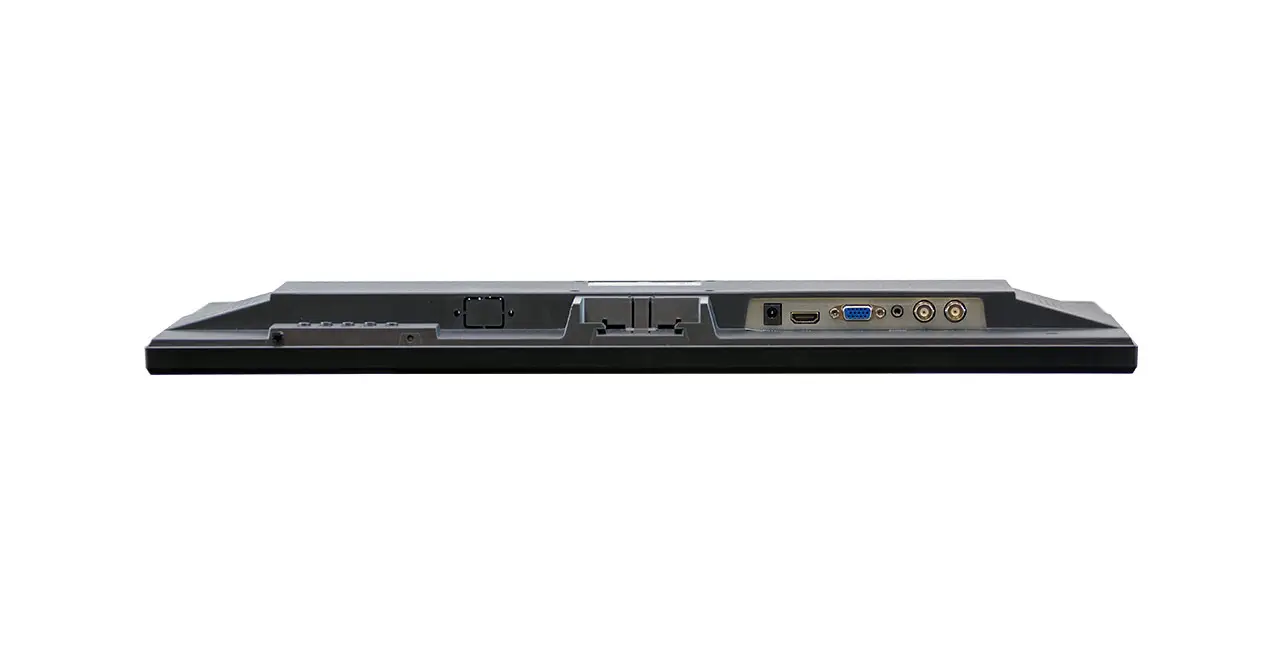

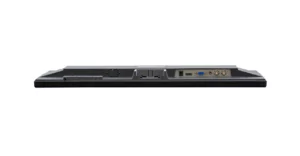

Interface
| CVBS (BNC) In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Audio In | 1 |
Audio
| Built in speaker | 2W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsch, French, Spanish, Italian |

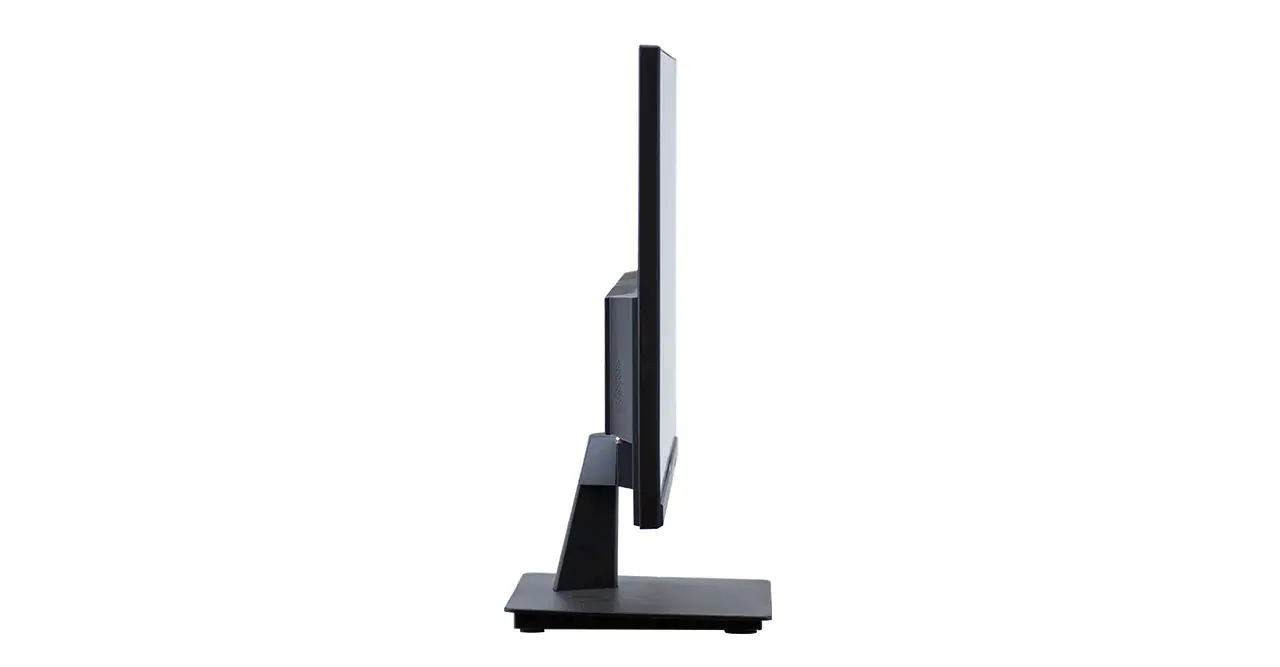

Dimensions & Weight
| Outline Dimension (W x H x D) | 21.31” x 16.2” x 1.53” / 541.4 mm x 411.7 mm x 39.0 mm |
| Net Weight | 8.04 lbs / 3.65 kg |
| Gross Weight | 9.92 lbs / 4.5 kg |
Mount
| Vesa | 75 mm x 75 mm / M4 x L8 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | DC 12V, 3A (AC 100-240V, 50/60Hz) – Medical Safety Power Supply Approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| Power – Consumption | ≤ 24 w |
| Regulations | FCC(A), CE, RoHs |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH |
