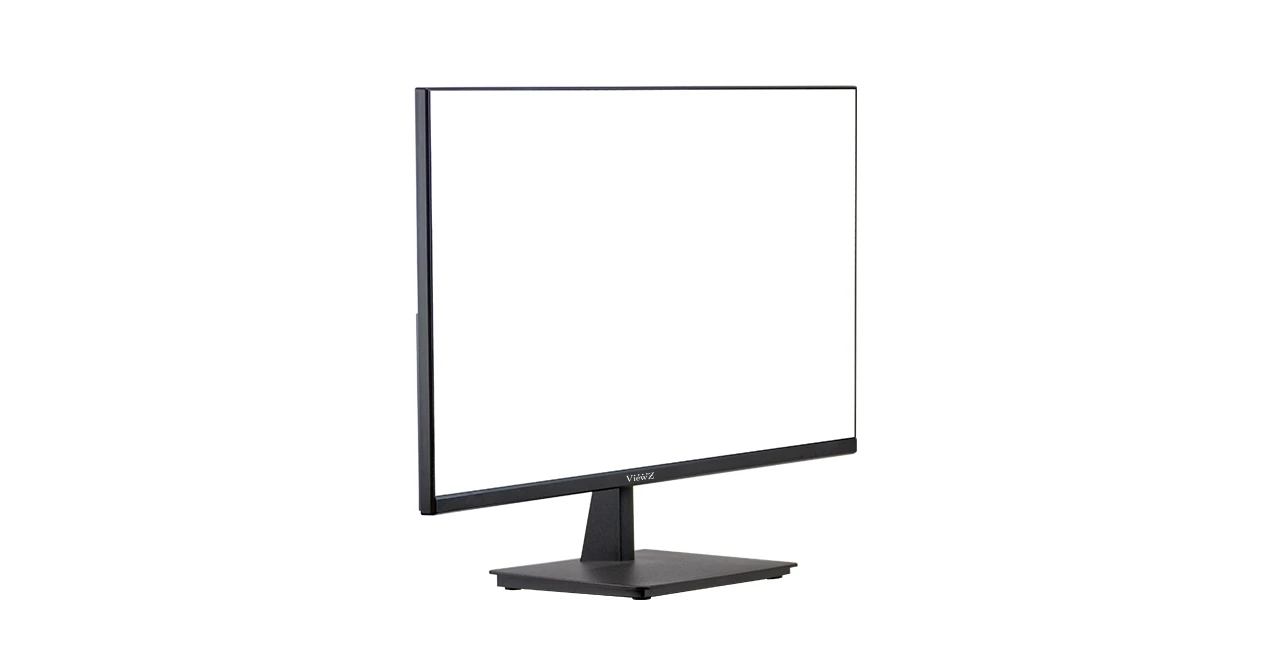

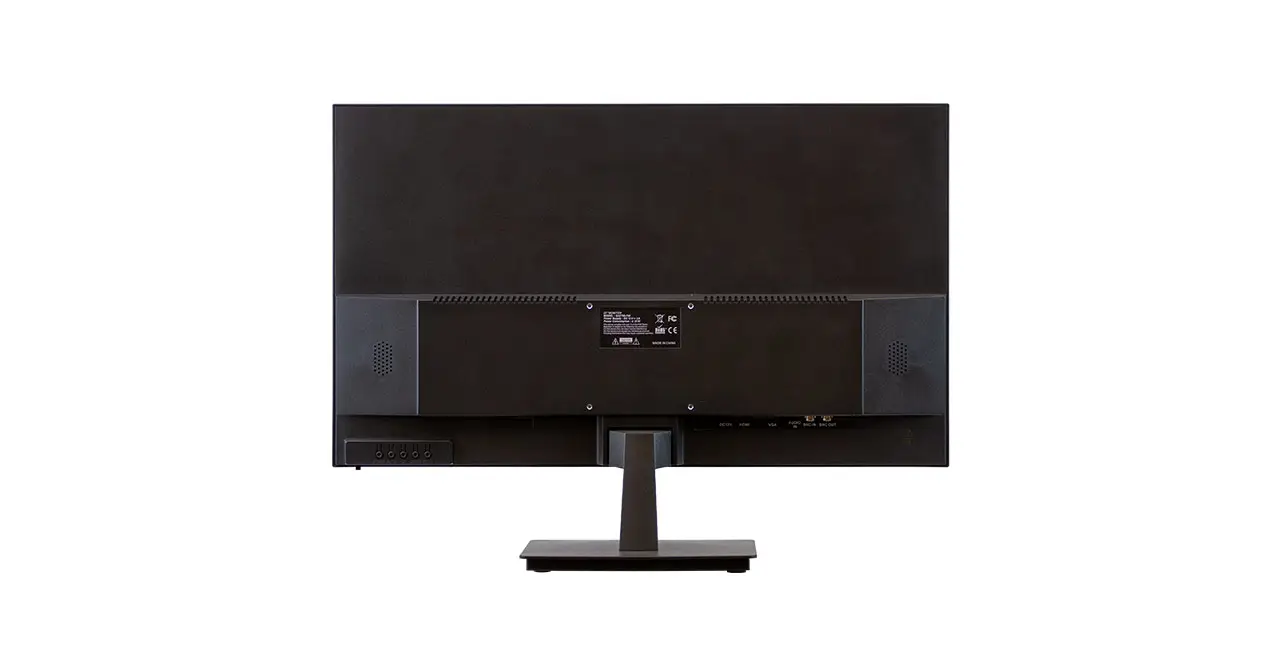

VZ-27CMP-ME

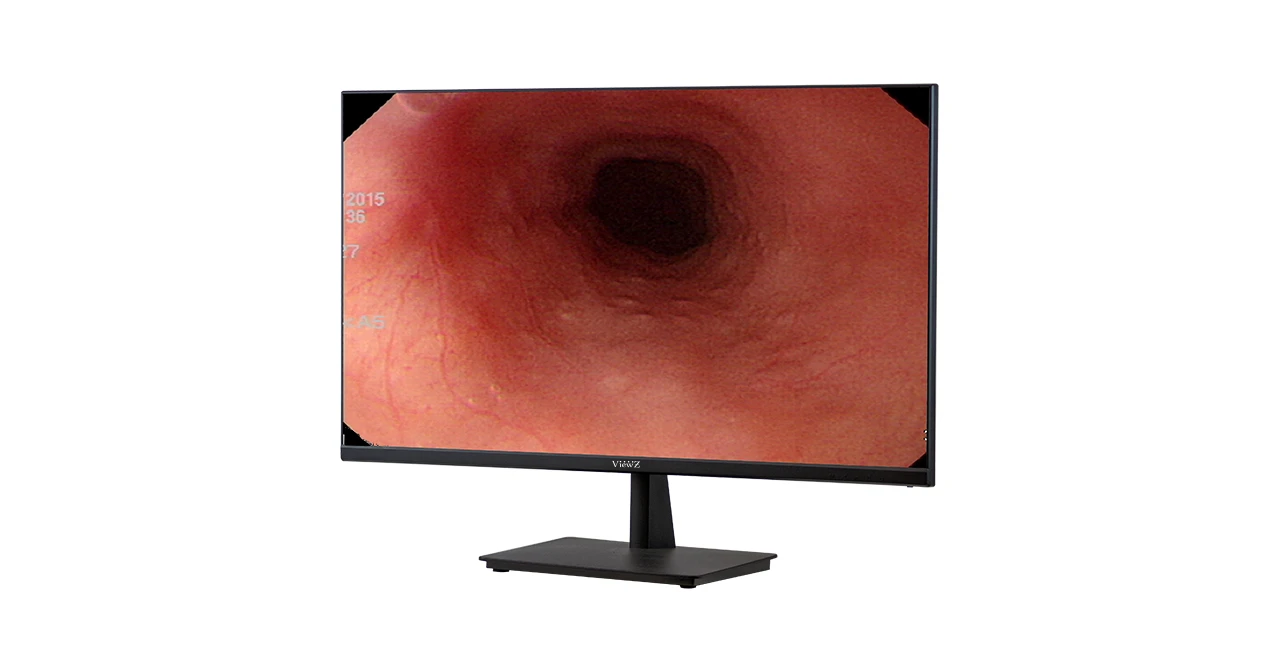

27`` Clinical Review High-Performance Display
- Full HD 1080p Resolution
- 1 CVBS(BNC) Input / Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Auto Source & Power Recovery
- HDMI, VGA, PC/AV Audio
- 3D Comb-Filter, De-Interlace, Built-in Speakers
- Built to run 24/7/365
- Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - 3-Year Warranty
Specification | Dimension | Spec & Manual
Series : CMP-ME | Key Features : 16:9 / 4:3 Full HD
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-27CMP-ME
- 27″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD (1920×1080) / 16:9
- 1 CVBS (BNC) Inputs / 1 CVBS (BNC) Output (Loop-through)
- 3D Comb-Filter / De-Interlace
- HDMI / VGA / Audio In
- Auto Source & Power Recovery
- 2W Speaker x 2
- DC 12V, 3.0 A (AC 100-240V, 50/60Hz with DC Adaptor) /
Power Consumption ≤ 30 W - Built to run 24/7/365
- Medical Safety Power Supply Approved (2 x MOPP)
according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 - 3-Year Warranty
Display
| Screen Size | 27″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.3114 mm x 0.3114 mm |
| Brightness | 250cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8ms |

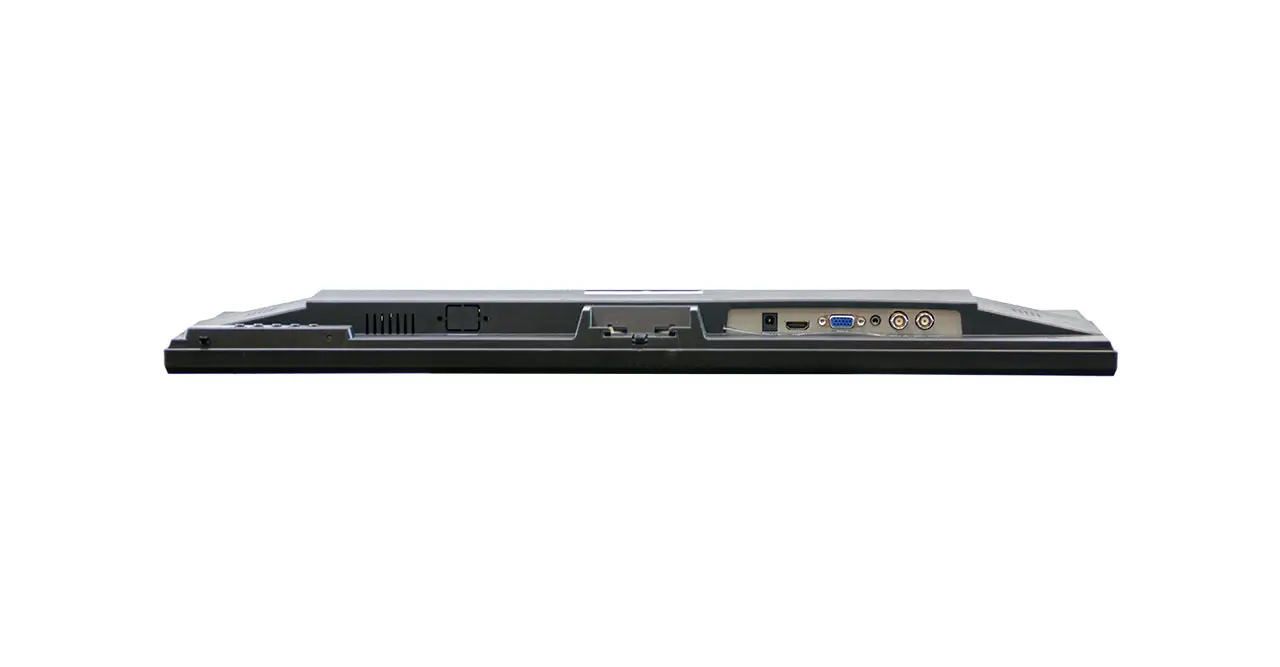

Interface
| HDMI In | 1 |
| CVBS (BNC) In / Out | 1 / 1 |
| VGA In (15Pin D-Sub) | 1 |
| Audio In | 1 |
Audio
| Built in speaker | 2W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsche, French, Spanish, Italian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 24.17” x 18” x 1.69” / 541.4 mm x 457.26 mm x 43.0 mm |
| Net Weight | 8.92 lbs / 4.05 kg |
| Gross Weight | 12.34 lbs / 5.6 kg |
Mount
| Vesa | 100 mm x 100 mm / M4 x L8 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC 12V Adaptor) – Medical Safety Power Supply Approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| Power – Consumption | ≤ 30 w |
| Regulations | FCC(A), CE, RoHS |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH |

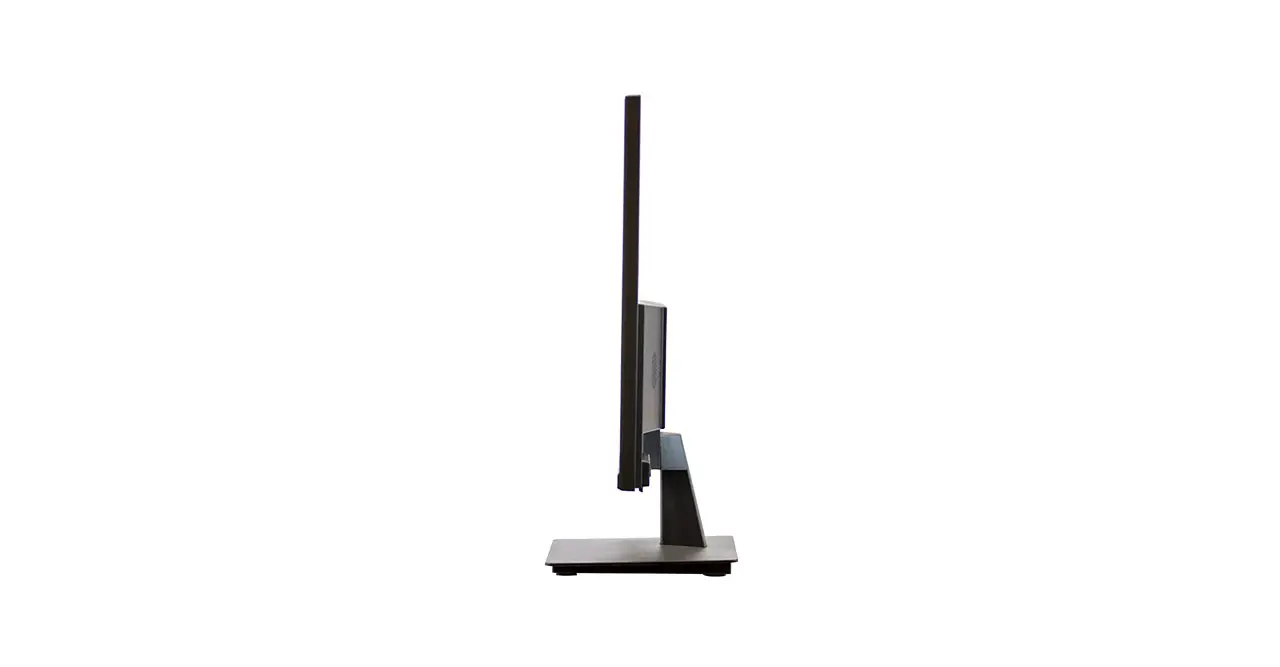

Product Dimension & Weight
Click below to enlarge
