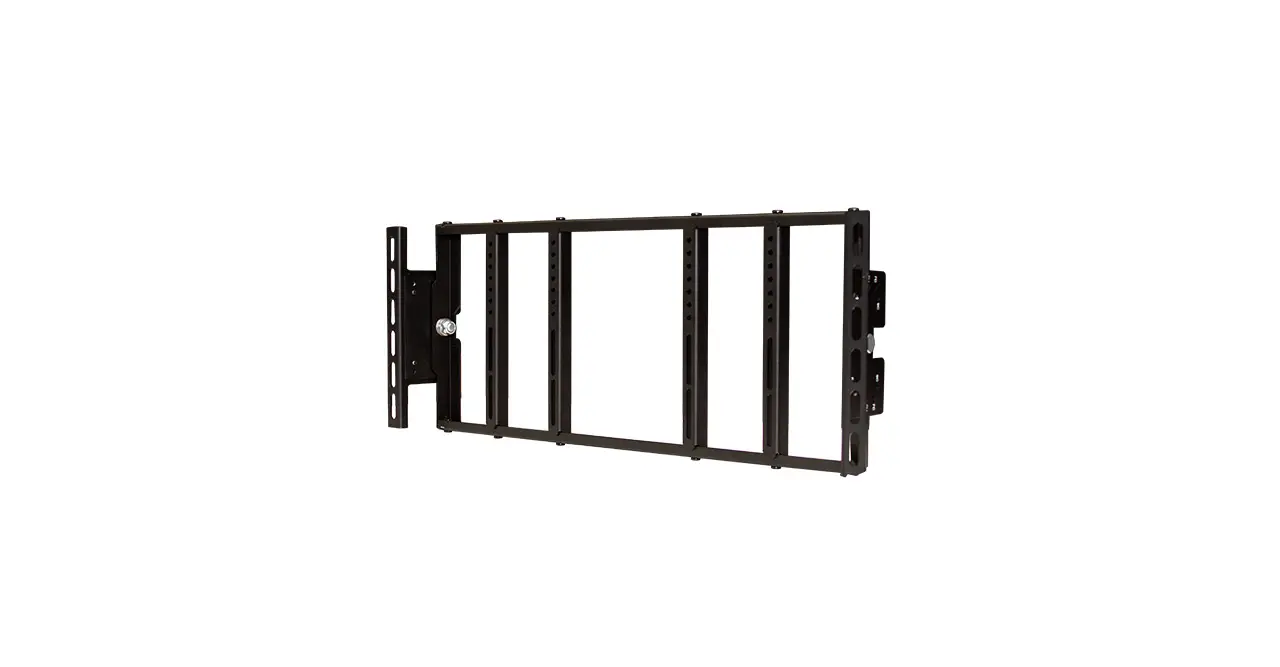

VZ-RMK08
- Tilt-able Rack Mount Max TILT ±35° / 20″ Monitor – ± 22° Tilt Adjustment
- Supporting Weight 20.94 lb / 9.5 kg
- VESA compliant – 75×75, 100×100
- Support Universal Mount
- Depth Adjustable 1.45″ to 3.14″
- Dual Mounting Available for any 8 ~ 9″ Monitors
Specification | Dimension | Spec & Manual
Series : Rack Mount
Compatible Medical Monitors
Product Features
- Model Number: VZ-RMK08
- 8″ to 24″ Viewz Monitors
- Universal Rack Mount
- VESA Compliant : 75×75, 100×100
- Tilt Adjust ability
- Save Rack Space
Specification
| Display Range | 8″ ~ 24″ |
| Weight Capacity | 20.94 lbs / 9.5 kg |
| Tilt Capability | +35° ~ -35° |
| Extension | 1.45″ ~ 3.14” / 37 mm ~ 80 mm |
| Mounting Pattern Type | VESA, Universal |
| Mounting Patterns | 75 x 75 (Min) ~ 100 x 100 (Max) mm |
Dimensions & Weight
| Dimension ( Width x Height x Depth ) | 18.93″ x 7.44″ x 2.79″ / 481 mm x 189 mm x 71 mm |
| DIM Size ( Width x Height x Depth ) | 17.28″ x 7.2″ x 1.81″ / 439 mm x 183 mm x 46 mm |
| Net Weight | 3.08 lbs / 1.4 kg |
| Gross Weight | 5.07 lbs / 2.3 kg |
Product Dimension & Weight
Click below to enlarge
