32″ PACS Integrated Monitor

product Description




vz32mpac1
vz32mpac2
vz32mpac1 vz32mpac2

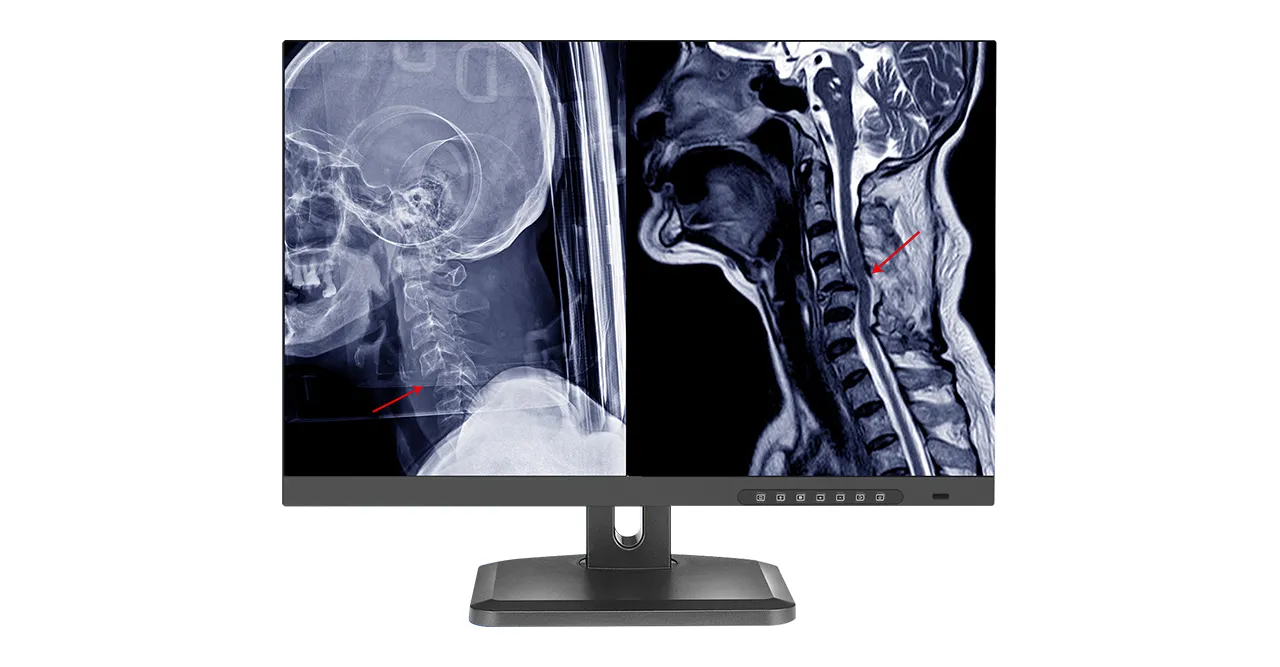

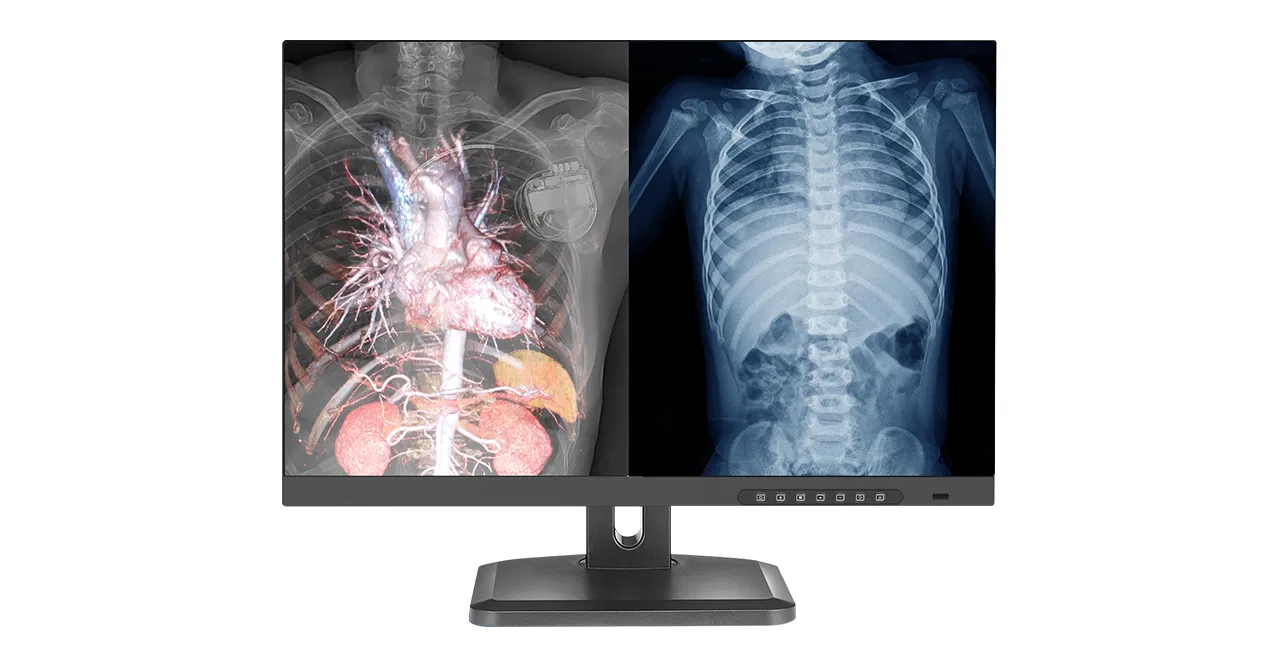

VZ-32MPAC

Medical display combines unique LCD panel with update IPS technology, provide top image quality. Its high brightness and contrast is beneficial to show the details, ensure the radiologist make more accurate diagnosis.

  • 3840 x 2160 @60Hz Resolution
  • DVI, DP, HDMI
  • Accurate Image Quality
  • Seamless Dual Screen – PBP
  • Ambient Light Sensing System
  • Super Wide Viewing Angle
  • Built to run 24/7/365
  • Factory Lifetime Limited Warranty

Product Features

  • Model Number: VZ-32MPAC
  • 32″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
  • Ambient Light Sensing System
  • High Resolution Improve the Working Flow
  • Accurate Image Quality
  • Seamless Dual Screen – PBP
  • 4K (3840 x 2160)
  • DVI / DP / HDMI
  • Auto Source & Power Recovery
  • Built to run 24/7/365
  • Factory Lifetime Limited Warranty

Display

Screen Size 32″
Max Resolution 3840 x 2160 @60Hz
Pixel Pitch 0.181 mm x 0.181 mm
Brightness 650 cd/m²(Typical)
Contrast Ratio 1700 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 9.5 ms


Interface

DVI In 1
DP In 1
HDMI In 3


Special Features

PBP Support
Display Surface Treatment ANTI-Dazzle


Dimensions & Weight

Outline Dimension (W x H x D) TBD
Net Weight TBD


General Summary

Transmitter – IR Remote Control Yes
Power – Electrical Ratings TBD
Power – Consumption ≤ 130 w
Regulations FCC(A), CE, RoHs
Operating Temperature | Humidity 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH


Product Dimension & Weight

Click below to enlarge
product Details
