Designing & Manufacturing Premium Display Solutions

ViewZ consists of over 120 commercial-grade monitor models that are used in security, broadcast & post production, digital signage and gaming industries.
All backed by our 3-year factory warranty, ViewZ is trusted around the world in casinos, financial institutions, government agencies and Fortune 500 retailers.

SECURITY   |    BROADCAST   |    LENSES   |    DIGITAL SIGNAGE   |    MEDICAL

  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 97.52” LED ULTRA HD Panel
    • Supports 4K (3840X2160) Resolution
    • Variable Inputs Support (HDMI, YPbPr, AV, VGA)
    • USB - Media Player
    • Auto Source Recovery
    • Wide Viewing Angle (IPS Panel)
    • 1.07G Color & QFHD
Hover to zoom, click to view

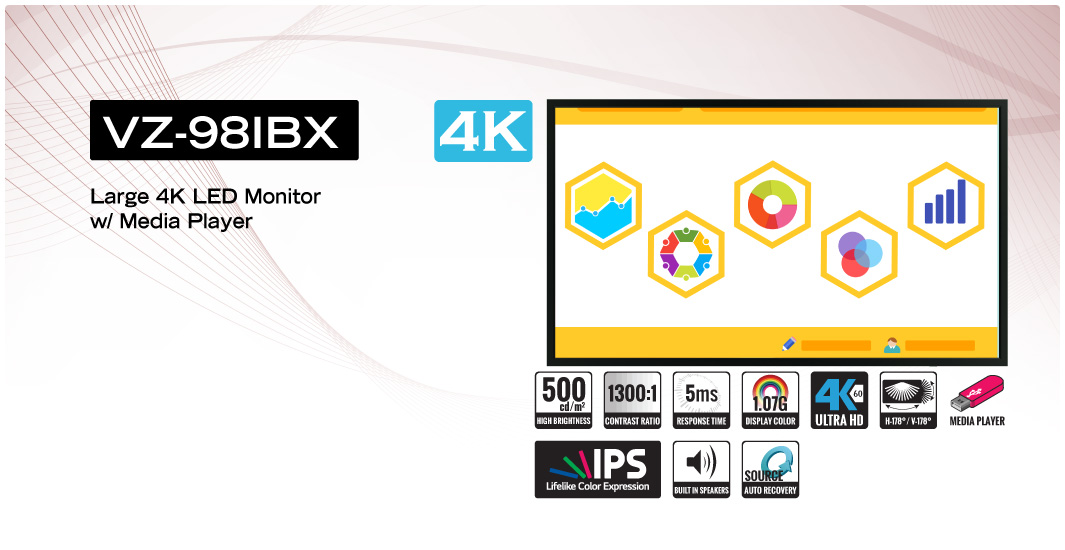

Model Number: VZ-98IBX

97.52" LED UHD Panel
4K Resolution - 3840x2160 / 16:9
Wide Viewing Angle (IPS Panel)
USB - Media Player
Auto Source Recovery
Supported HDMI (2.0 & 1.4), AV, SPDIF & VGA
1200:1 Contrast Ratio













Download VZ-86IBX PDF Specifications Sheet


















  Screen Size 97.52"
  Max Resolution 3840x2160 @60Hz
  Active Display Area (H/V) 0.5622 mm x 0.5622 mm
  Brightness 500cd/m²(Typical)
  Contrast Ratio 1300:1
  Aspect Ratio 16 : 9 (1.78:1)
  Viewing Angle (H/V) 178°/178°
  Display Color 1.07 G (8-bit + FRC)
  Response Time < 8ms


  HDMI (2.0) In 1
  HDMI (1.4) In 3
  HDMI (1.4) Out 1
  YPbPr In 1
  AV In / Out 1 / 1
  VGA In (15pin D-Sub) 1
  SPDIF (Optical) Out 1
  RS232 (RJ-45) In / Out 1 / 1
  USB In (Media) 2
  USB In (Under OPS - Mouse, Keyboard, U-Disk) 1
  RJ45 (10/100M) In 1
  Audio Out 1
  PC Audio In 1


  Built-in Speaker 8 W x 2


  Android OS Ver. 5.0
  CPU Quad Core, Cortex-A53, 1.4GHz
  RAM 2 GB DDR3
  Storage 8GB (NAND-Flash)
  External Storage Micro SD up to 32GB / USB 2.0 up to 2TB


  Video Codec MPEG1/2, MPEG4, DivX 3.11/4.12/5.x/5, XviD,H.263, H.264, MVC, AVS, WMV3, VC1, Motion JPEG, VP 8/9, RV30/40
  Video Format MPEG, AVI, MOV, MP4, MKV, RM, 3GP, FLV, WebM, ASP
  Image Format JPEG, PNG, BMP
  Music Format mp3, mp4, wma
  Support Capacity Max 32GB


  Image Retention Yes


  Outline Dimension 86.56” x 49.36” x 4.31”
  (W x H x D) 2198.8 mm x 1253.8 mm x 109.5 mm
  Net / Gross Weight 216.38 lbs (98.15kg) / 338.74 lbs (153.65kg)


  Universal 800 x 400 mm /
  6 x M8 screws


  Power - Electrical Ratings AC100~240V (50/60Hz)
  Power - Consumption 480 W (Max) / 0.5 W (Standby)
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 ~ 104°F / 0 ~ 40°C
  Operating Humidity 20~85% RH
  Storage Temperature 14 ~ 140°F / -10 ~ 60°C
  Storage Humidity 10%~60% RH





  * Specifications subject to change without notice
